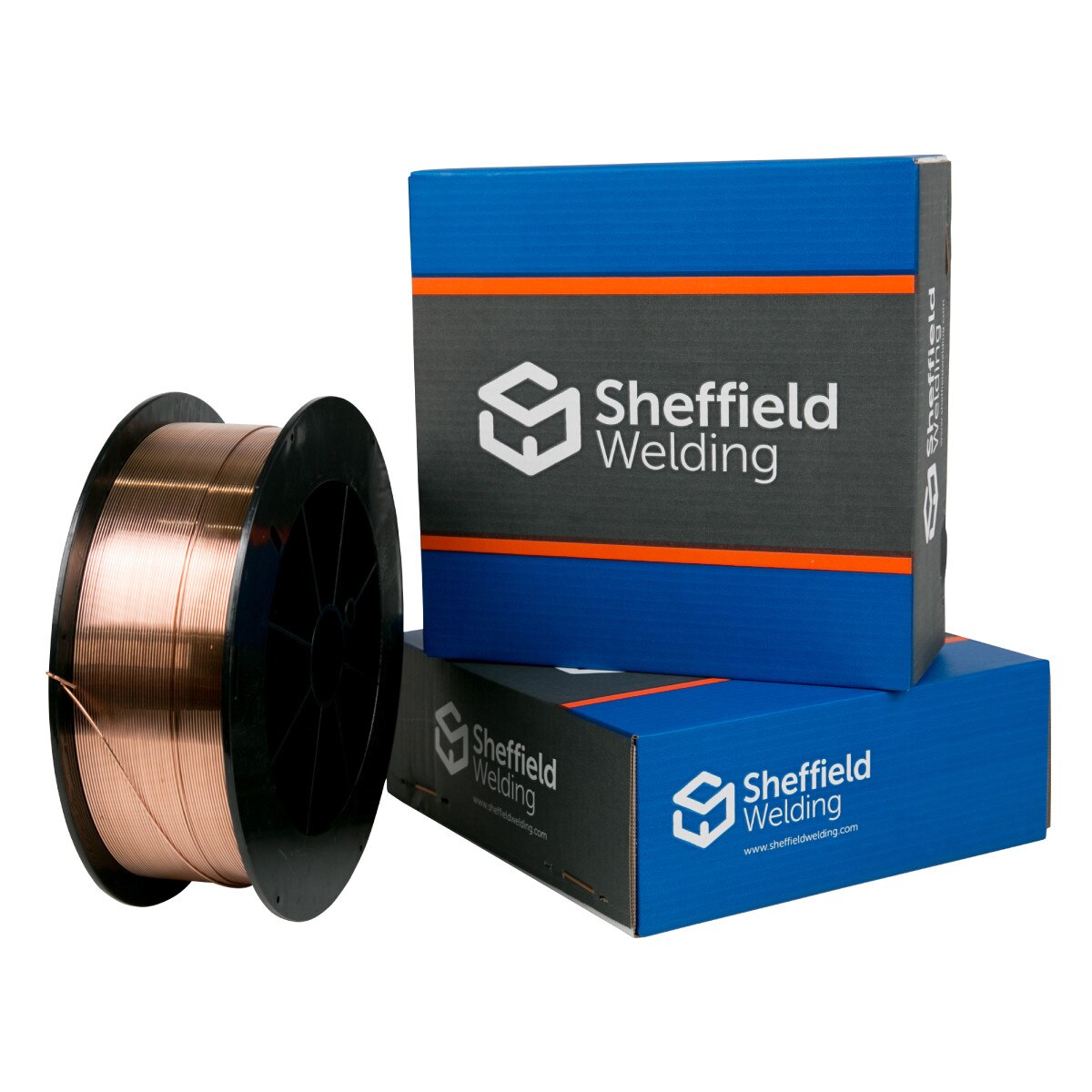

Sheffield Welding 71T-1-9C H8 FLUX CORE Diameter: 0.045 in
| Item ID | SWP71T-1-9C.045X33-H8 |
| AWS Spec: | 5.20 |
| AWS Class: | E71T-1C / E71T-9C |
| UNS Number: | W07601/W07609 |
| Welding Process: | FCAW |
Product Description
- All-position flux-cored wire developed to join low and medium carbon steel with 100% CO2 shielding gas.
- Displays exceptional impact properties — CVN impact values well exceed AWS A5.20 minimums at -20°C.
- Dual-classified E71T-1C and E71T-9C per AWS A5.20, providing maximum specification flexibility.
- High deposition rates and excellent penetration for increased productivity in structural and heavy fabrication applications.
- Typical applications include construction, shipbuilding, rail car, bridge fabrication, and heavy equipment industries.
- Diffusible hydrogen ≤ 8 mL/100g (H8 designation) for reduced risk of hydrogen-induced cracking.
- AWS A5.20 certified | ABS Approved
Documents
Technical
| Chemical Composition | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | Cr | Ni | |
| AWS Requirements | 0.12 max | 1.75 max | 0.90 max | 0.03 max | 0.03 max | 0.20 max | 0.50 max |
| Typical Results | 0.040 | 1.45 | 0.41 | 0.021 | 0.006 | 0.02 | 0.01 |
| Mo | V | Cu | |||||
| AWS Requirements | 0.30 max | 0.08 max | 0.35 max | ||||
| Typical Results | 0.01 | 0.01 | 0.017 | ||||
| Mechanical Properties | |||||
|---|---|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPa (ksi) | Elongation % | CVN Impact @ -20°C (J) | Diffusible H₂ (mL/100g) | |
| AWS Requirements | 490–670 (70–95) | ≥ 400 (≥ 58) min | 22 min | ≥ 27 | ≤ 8.0 (H8) |
| Typical Results - As welded | 550 (80) | 475 (69) | 28 | 112 | 4.7 |
