Oxford Alloys

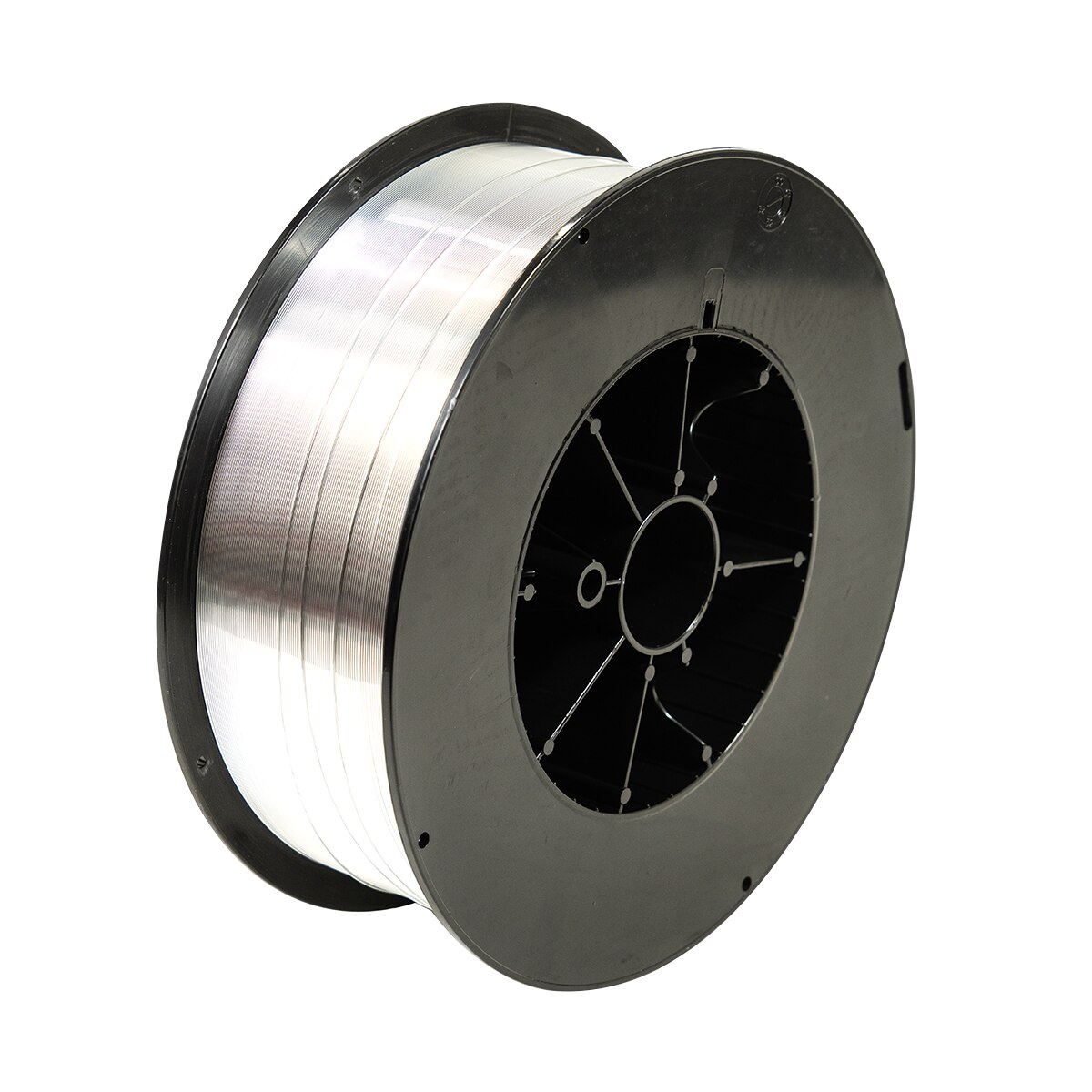

4043 MIG WIRE
Diameter: 3/64 in| Item ID | OXF40433-64X16 |
| AWS Spec: | 5.1 |
| AWS Class: | ER4043 |
| UNS Number: | A94043 |
| Welding Process: | GMAW |
Product Description
- A 5% silicon aluminum recommended for welding 3003, 3004, 5052, 6067,6063 and casting alloys 43, 355, 356 and 214.
- Has a melting range of 1065 - 1170°F and a density of .097 lbs./ cu. in.
- The post-anodizing color tint of the weld area is gray.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Si | Fe | Cu | Mn | Mg | Zn | Ti |
| 4.5-6.0 | 0.8 max | 0.30 max | 0.05 max | 0.05 max | 0.10 max | 0.20 max |
| OEE | OET | AI | ||||
| 0.05 max | 0.15 max | Bal | ||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | ||
| Typical Results - As welded | 190 (27) | 125 (18) | 8 |
