Product Description

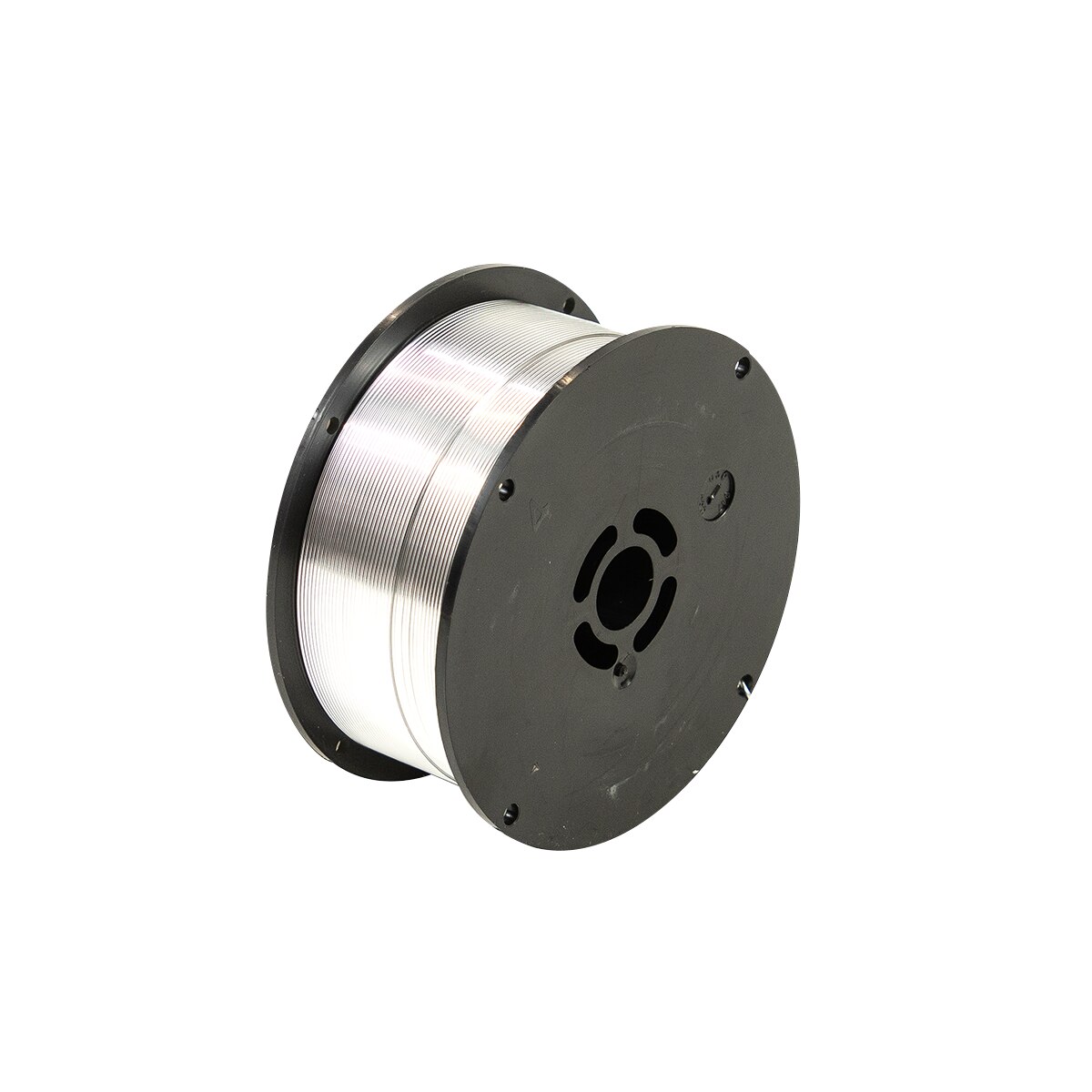

  • A 5% silicon aluminum recommended for welding 3003, 3004, 5052, 6067,6063 and castina allovs 43,355,356 and 214.
  • Has a melting range of 1065 - ll70°F and a density of .097 lbs/cu in. The post -anodizing color tint of the weld area is gray.
  • Superior feedability
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
SiFeCuMnMgZnTi
4.5-6.00.8 max0.30 max0.05 max0.05 max0.10 max0.20 max
OEEOETAl
0.05 max0.15 maxBal
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		Not specifiedNot specifiedNot specified
Typical Results -
As welded		850 (123)650 (94)28
