Product Description

  • This alloy was developed to provide dense, high quality deposits with relatively high electrical conductivity for use in joining and overlay with the inert-gas processes.
  • It is primarily used to fabricate deoxidized copper and to weld repair copper castings with the gas metal arc and gas tungsten-arc processes.
  • It may also be used to weld galvanized steel and deoxidized copper to mild steel where high strength joints are not required.

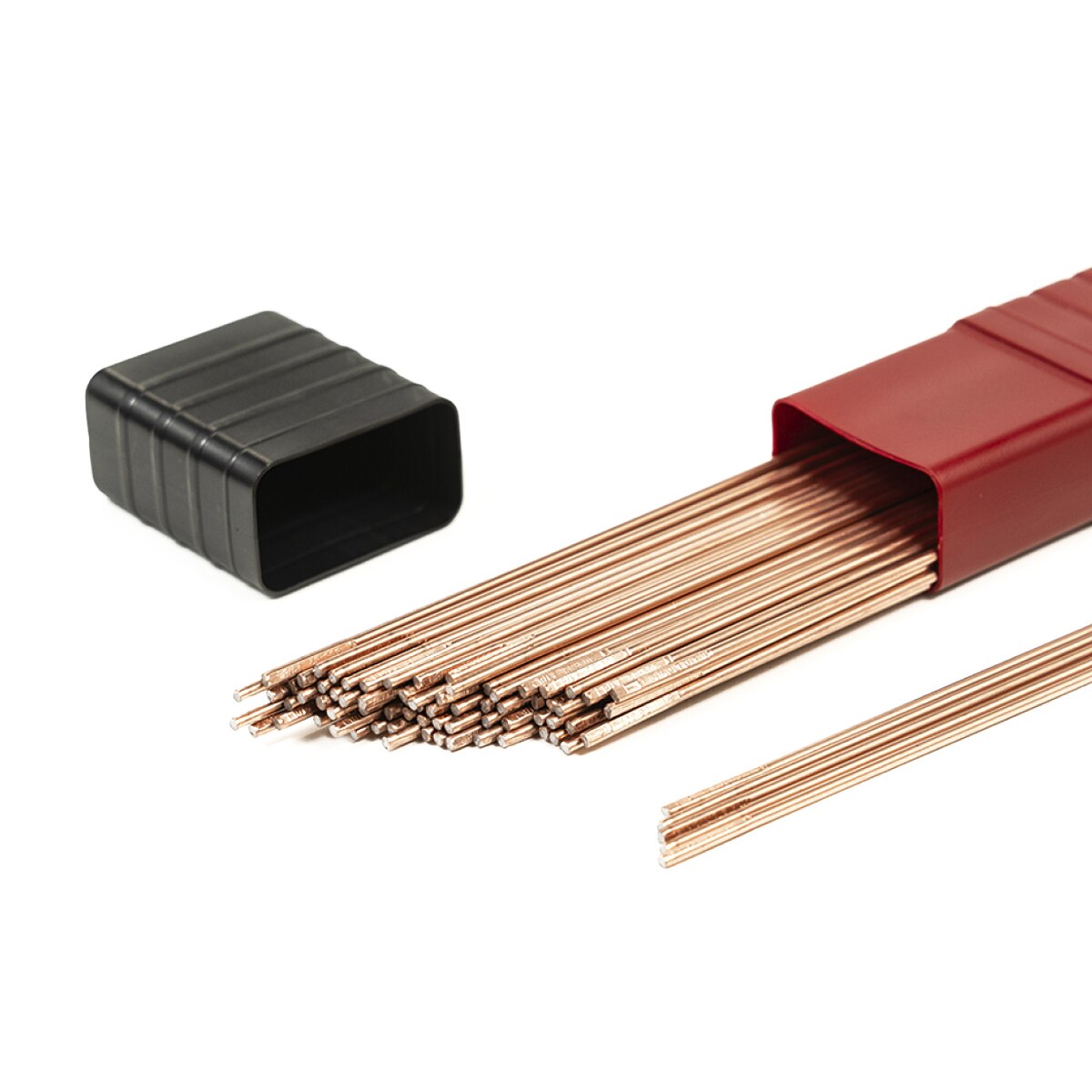

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
Cu+AgPSnPbMnSiAl
98.0 min0.15 max1.0 max0.02 max0.50 max0.50 max0.01 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		170 (25) minNot specifiedNot specified
Typical Results -
As welded		200 (29)55 (8)29
