Oxford Alloys

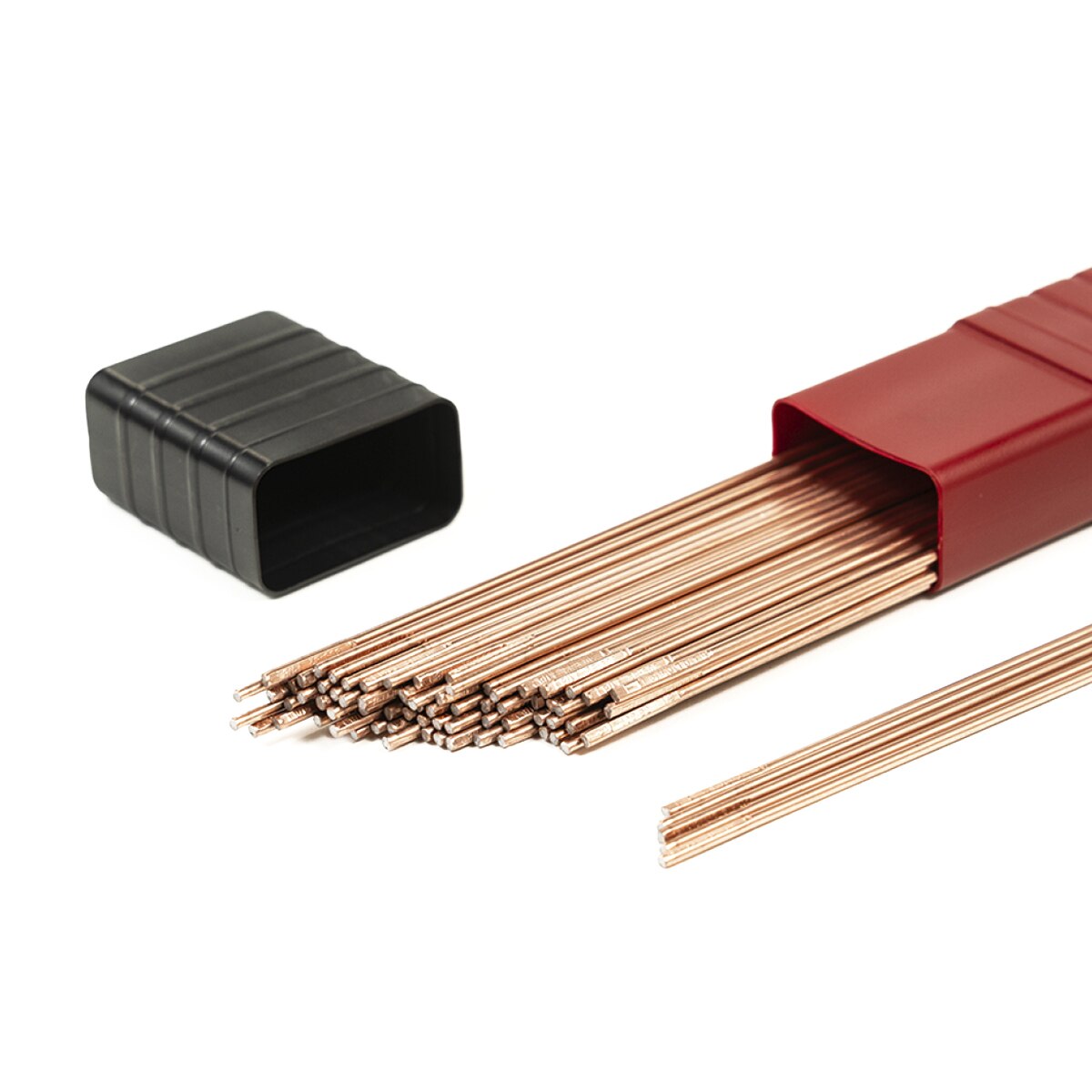

DEOXCOPPER TIG WIRE
Diameter: 3/32 in| Item ID | OXFDEOXCOPPER3-32X36 |
| AWS Spec: | 5.7 |
| AWS Class: | ERCu |
| UNS Number: | C18980 |
| Welding Process: | GTAW |
Product Description
- This alloy was developed to provide dense, high quality deposits with relatively high electrical conductivity for use in joining and overlay with the inert-gas processes.
- It is primarily used to fabricate deoxidized copper and to weld repair copper castings with the gas metal arc and gas tungsten-arc processes.
- It may also be used to weld galvanized steel and deoxidized copper to mild steel where high strength joints are not required.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Cu+Ag | P | Sn | Pb | Mn | Si | Al |
| 98.0 min | 0.15 max | 1.0 max | 0.02 max | 0.50 max | 0.50 max | 0.01 max |
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 170 (25) min | Not specified | Not specified |
| Typical Results - As welded | 200 (29) | 55 (8) | 29 |
