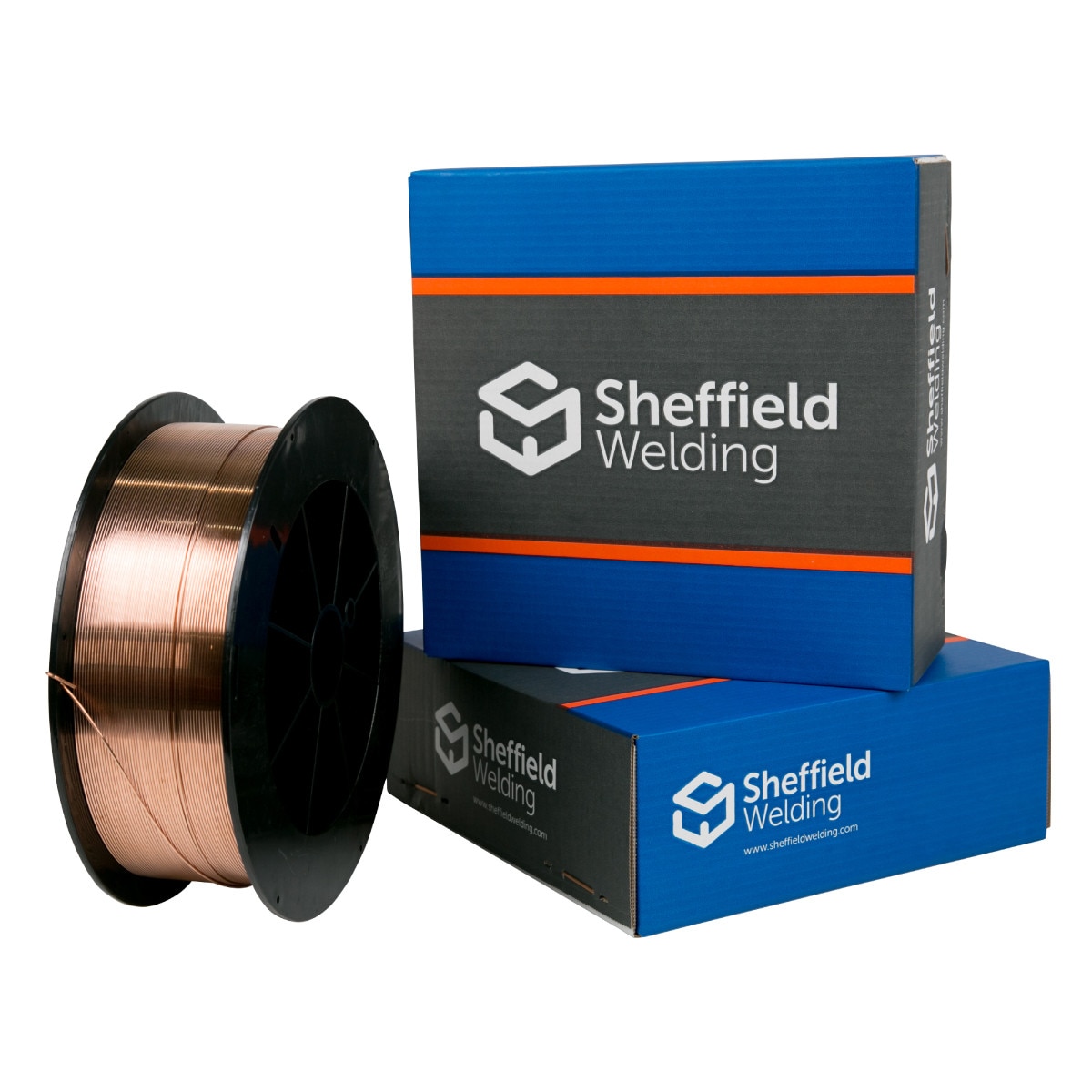

Product Description

  • Excellent choice for welding on metals with a medium to high presence of surface contaminants such as rust or mill scale.
  • Low carbon, high manganese, and very high silicon wire that exhibits very good puddle fluidity, bead profile, and spatter control.
  • Contains high levels of manganese and silicon for stronger deoxidizing power where stringent cleaning procedures are not possible.
  • The high silicon content increases the fluidity of the weld pool, creating a smoother bead appearance and resulting in minimal post-weld grinding.
  • Excellent where poor fit-ups or rusty and oily plates may be used. Typical applications include truck bodies, farm implements, steel castings or forgings, shaft build-ups, and general shop fabrications.
  • Superior feedability
  • ABS Approved

Technical

Chemical Composition
CMnSiPSNiCr
AWS
Requirements		0.06-0.151.40-1.850.80-1.150.025 max0.035 max0.15 max0.15 max
Typical Results0.081.510.850.0170.0110.010.01
MoCuV
AWS
Requirements		0.15 max0.50 max0.03 max
Typical Results0.0080.210.007
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPa (ksi)		Elongation
%		CVN Impact
@ -30°C (J)
AWS
Requirements		≥ 490
(≥ 73) min		≥ 400
(≥ 61) min		22 min≥ 27
Typical Results -
As welded		515 (75)432 (63)3092
