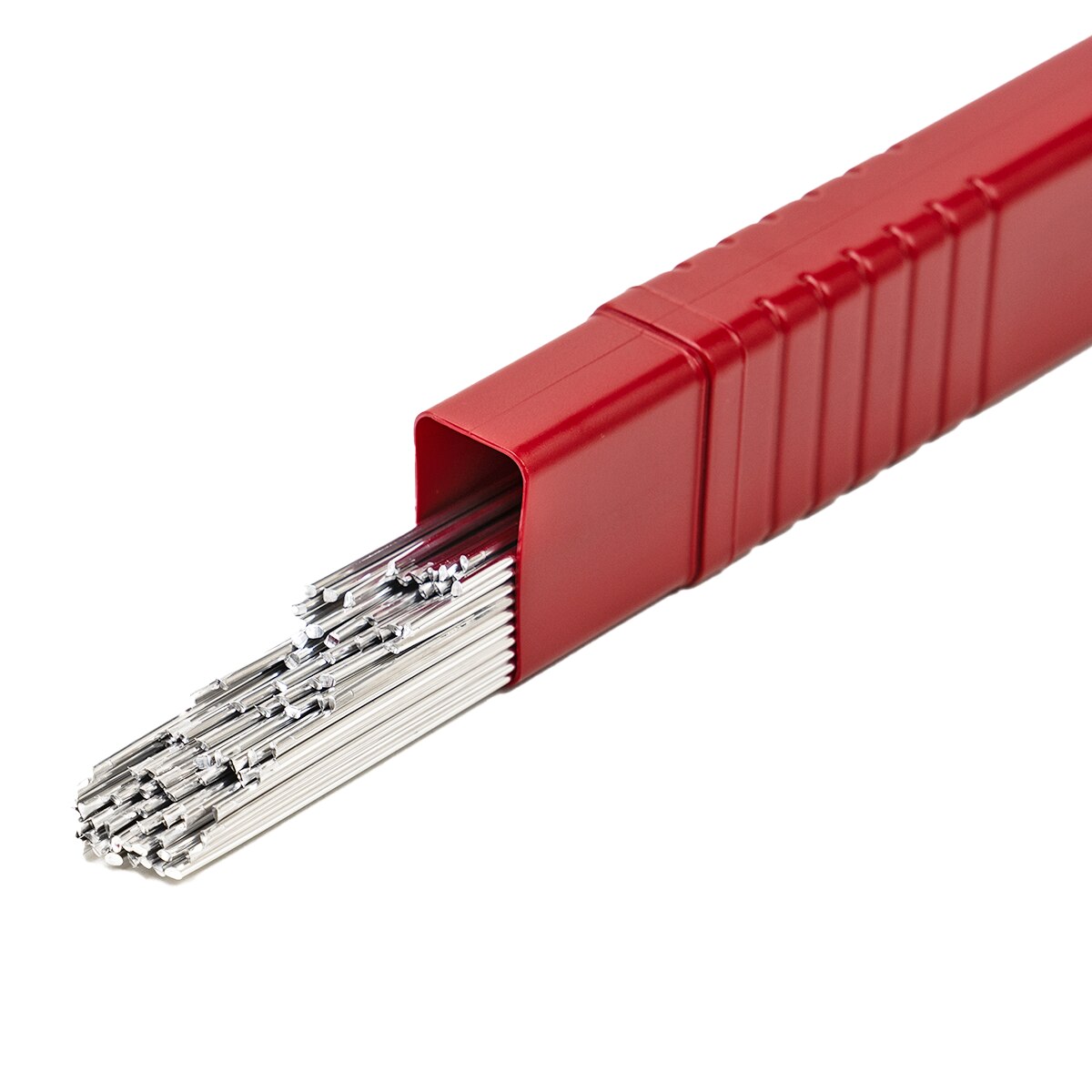

Product Description

  • A 5% magnesium aluminum filler metal that is commonly used on base metals 5050, 5052, 5083, 5356, 5454 and 5456.
  • The post-anodizing color tint of the weld area is white.
  • The weld deposit of this filler metal offers good corrosion resistance when exposed to salt water.
  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats
  • ABS Approved

Technical

Chemical Composition
SiFeCuMnMgCrZn
0.25 max0.40 max0.10 max0.05-0.204.5-5.50.05-0.200.10 max
TiAl
0.06-0.20Bal
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		Not SpecifiedNot SpecifiedNot Specified
Typical Results -
As welded		270 (39)130 (19)17
