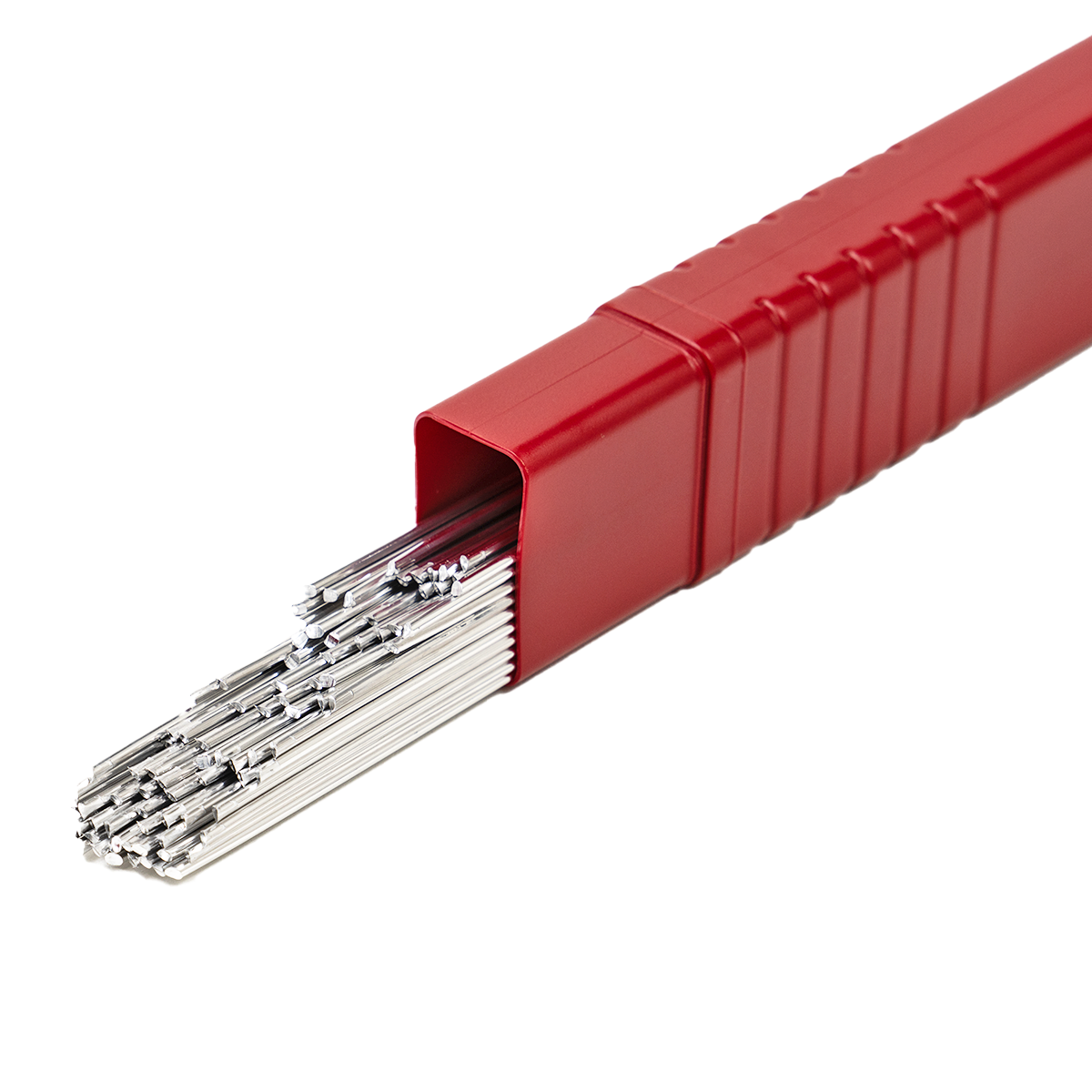

Oxford Alloys 5356 TIG WIRE Diameter: 3/32 in
| Item ID | OXF53563-32X36 |
| AWS Spec: | 5.10 |
| AWS Class: | ER5356 |
| UNS Number: | A95356 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
5356 TIG WIRE
Item Number: OXF53561-16X36
Pkg Qty: 10
UOM: Pound
5356 TIG WIRE
Item Number: OXF53561-8X36
Pkg Qty: 10
UOM: Pound
Product Description
- A 5% magnesium aluminum filler metal that is commonly used on base metals 5050, 5052, 5083, 5356, 5454 and 5456.
- The post-anodizing color tint of the weld area is white.
- The weld deposit of this filler metal offers good corrosion resistance when exposed to salt water.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
- ABS Approved
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Si | Fe | Cu | Mn | Mg | Cr | Zn |
| 0.25 max | 0.40 max | 0.10 max | 0.05-0.20 | 4.5-5.5 | 0.05-0.20 | 0.10 max |
| Ti | Al | |||||
| 0.06-0.20 | Bal | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not Specified | Not Specified | Not Specified |
| Typical Results - As welded | 270 (39) | 130 (19) | 17 |
