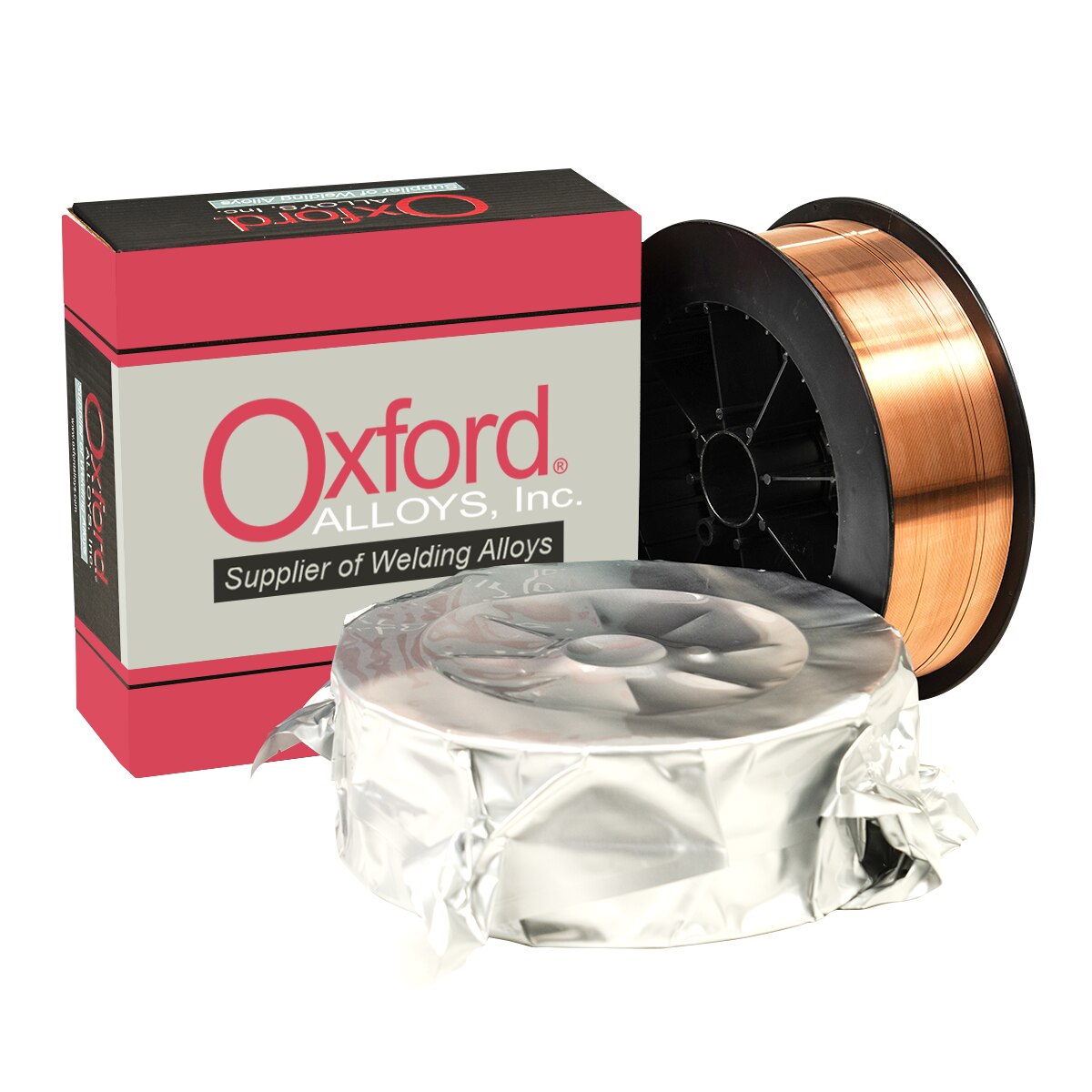

Oxford Alloys 81T1-B2 FLUX CORE Diameter: 1/16 in
| Item ID | OXF81T1-B21-16X33 |
| AWS Spec: | 5.29 |
| AWS Class: | E81T1-B2 |
| UNS Number: | W52031 |
| Welding Process: | FCAW |
Product Description
- All position flux cored wire recommended for welding 1-1/4 % Cr 1/2% Mo steels.
- The recommended shielding gas is CO2 or argon mixtures up to 75% Argon.
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | Cr | Mo |
| 0.05-0.12 | 1.25 max | 0.80 max | 0.03 max | 0.03 max | 1.00-1.50 | 0.40-0.65 |
| Mechanical Properties | ||||
|---|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | PWHT (Stress Relieved) | |
| AWS Requirements | 550-690 (80-100) min | 470 (68) min | 19 min | 1 Hr @ 690+/-15°C (1275+/-25°F) |
| Typical Results - As welded | 600 (87) | 530 (77) | 25 | |
