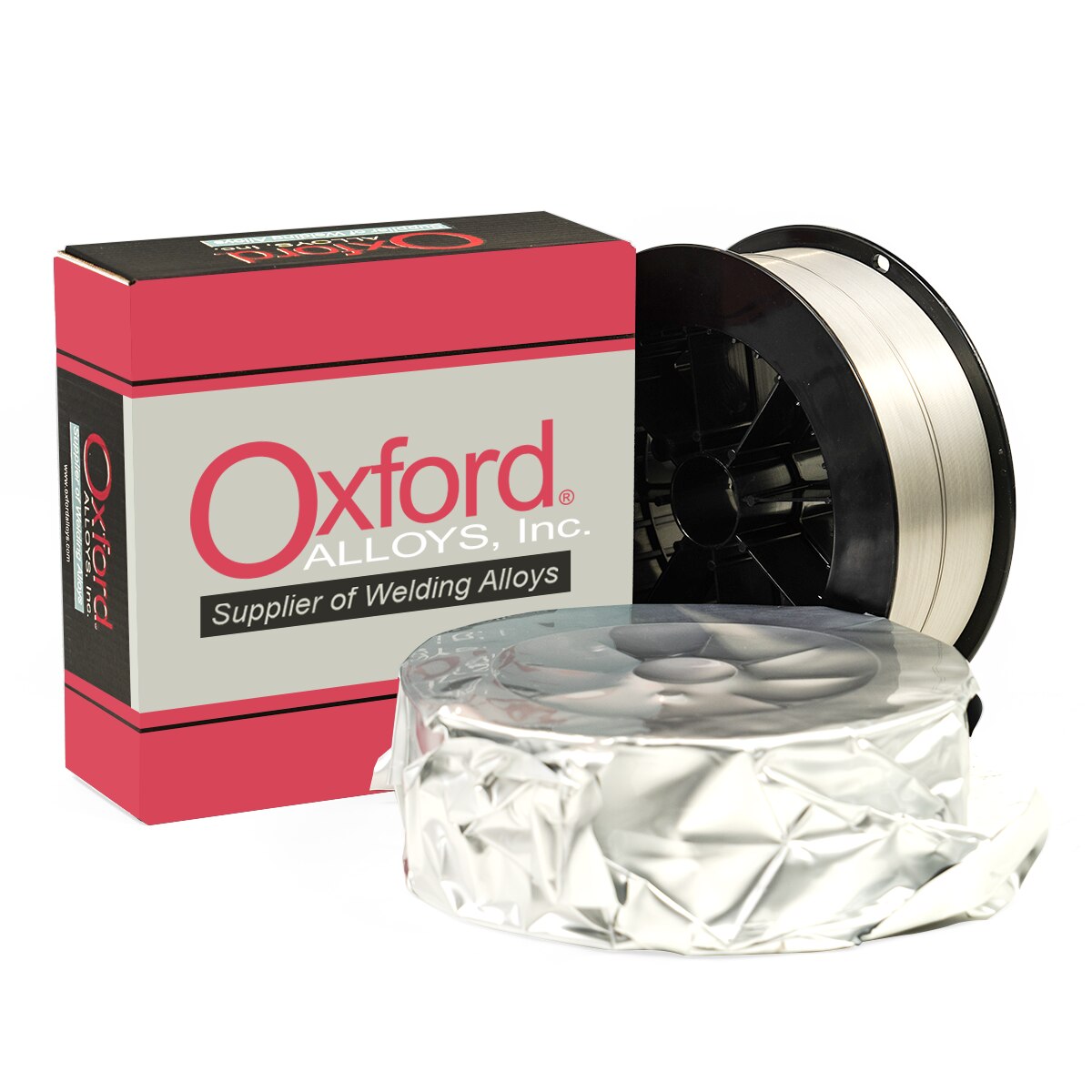

Oxford Alloys 2594T-1 FLUX CORE Diameter: 0.045 in
| Item ID | OXF2594T-1.045X33 |
| AWS Spec: | 5.22 |
| AWS Class: | E2594T1-1/4 |
| UNS Number: | W39594 |
| Welding Process: | FCAW |
Product Description
- The sum of the Cr + 3.3 (Mo + 0.5W) + 16N, known as the Pitting Resistance Equivalent Number (PREN), is at least 40.
- Designed for the welding of super duplex stainless steels UNS S32750 and S32760 (wrought) and for UNS J93380 and J93404 (cast).
- Common industries include: Process piping, pumps & valves, and pressure vessels
- All position welding
- Vacuumed packaged
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Cr | Ni | Mo | Mn | Si | P |
| 0.04 max | 24.0-27.0 | 8.0-10.5 | 2.5-4.5 | 0.5-2.5 | 1.0 max | 0.04 max |
| S | N | Cu | W | |||
| 0.03 max | 0.20-0.30 | 1.50 max | 1.0 max | |||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 760 (110) min | Not specified | 15 min |
| Typical Results - As welded | 870 (126) | 680 (99) | 25 |
