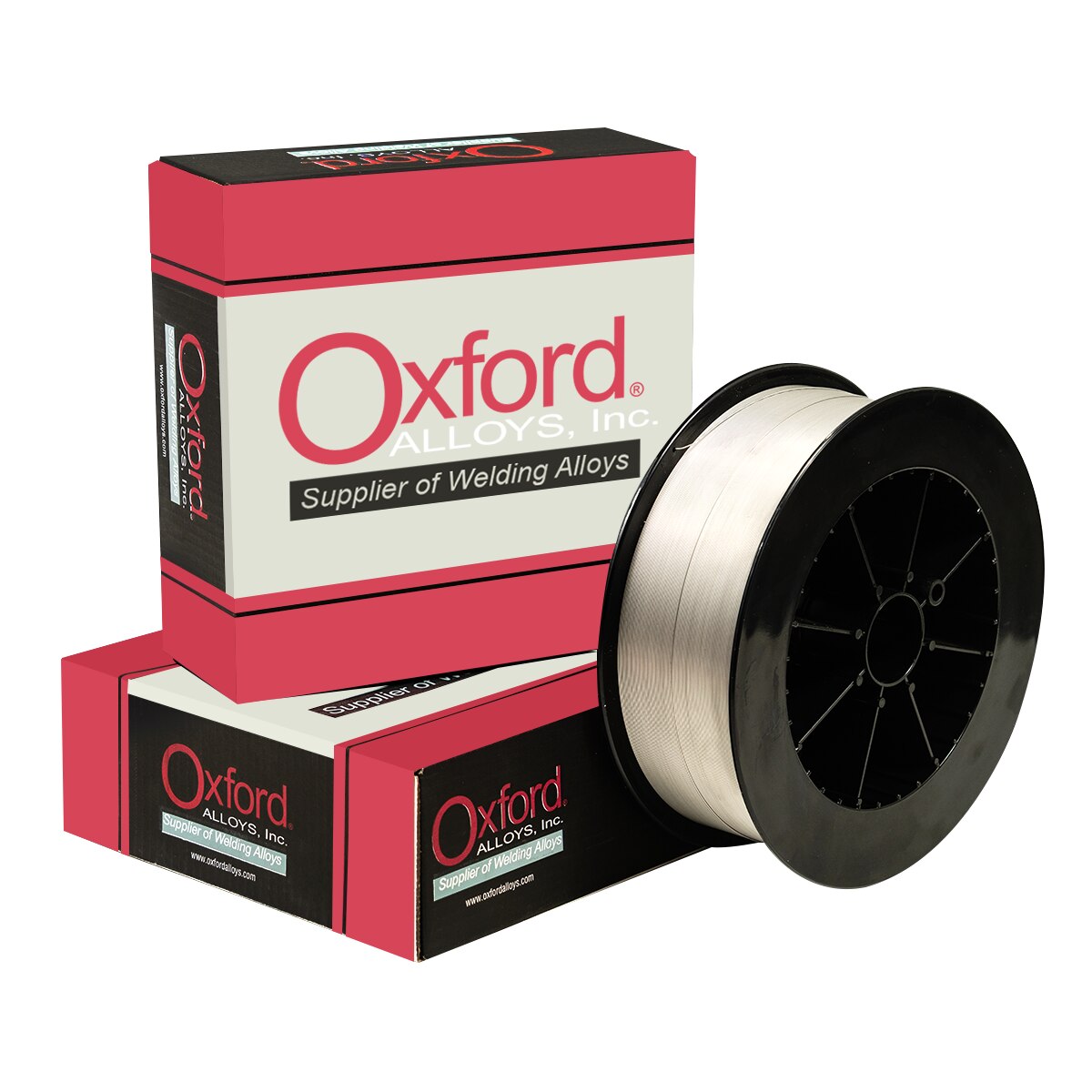

Oxford Alloys 67 MIG WIRE Pkg: 33 lb spool
| Item ID | OXF67MIG |
| AWS Spec: | 5.7 |
| AWS Class: | ERCuNi |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
67 MIG WIRE
Item Number: OXF67.045X33
Pkg Qty: 33
UOM: Pound
Product Description
- Used for welding of Monel® alloy 450, 70/30, 80/20, and 90/10 copper-nickel alloys.
- The weld metal of this filler metal has excellent resistance to corrosion in sea water, and is widely used for marine and desalination applications.
- Dissimilar welding applications for Oxford Alloy 67 are joints between Monel® alloys or Nickel 200 and copper-nickel alloys.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Ni+Co | Mn | Fe | Si | Cu+Ag | Ti | Pb |
| 29.0-32.0 | 1.0 max | 0.40-0.75 | 0.25 max | Bal | 0.20-0.50 | 0.02 max |
| P | ||||||
| 0.02 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 345 (50) min | Not Specified | Not Specified |
| Typical Results - As welded | 360 (53) | 140 (21) | 32 |
