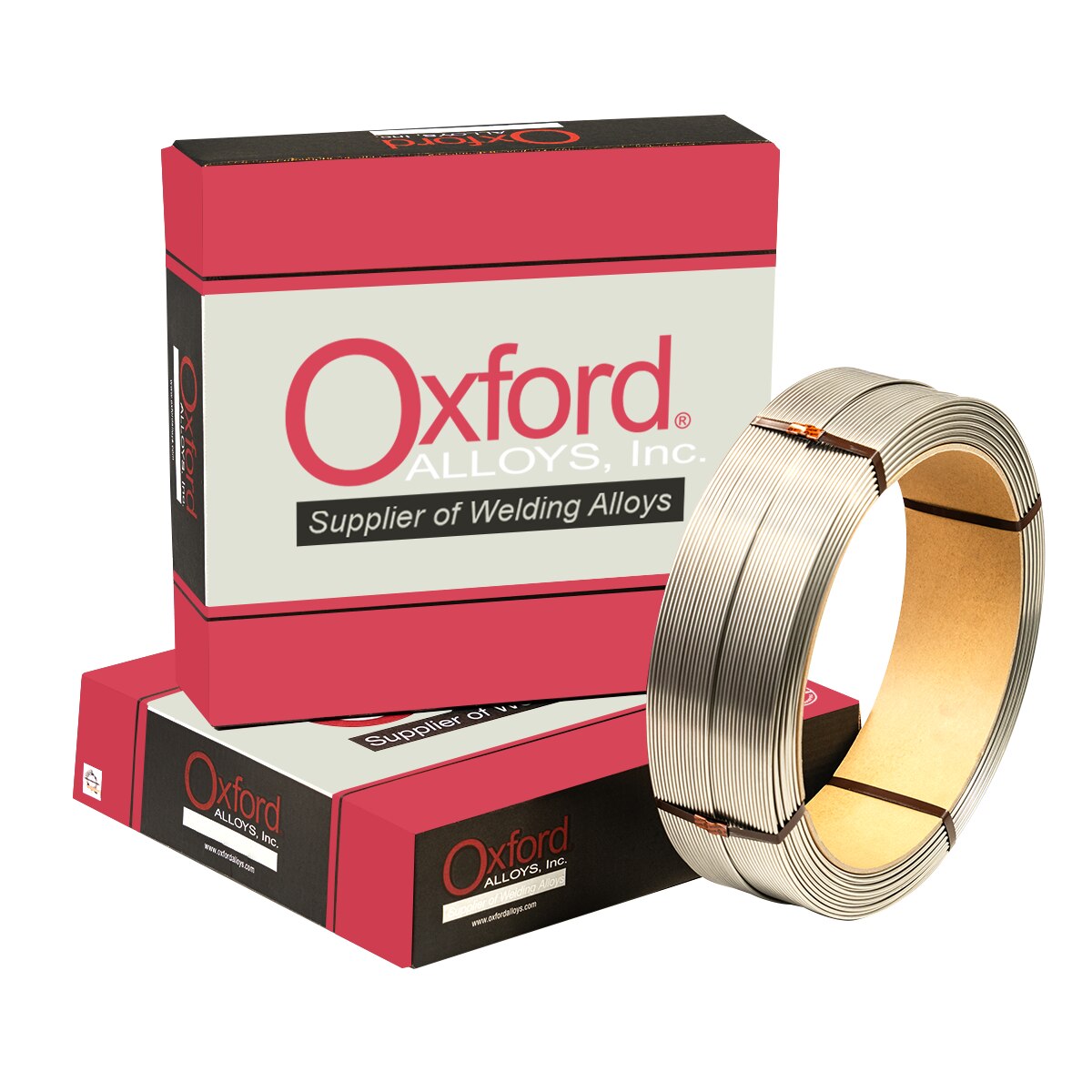

Oxford Alloys 625 SAW WIRE Diameter: 3/32 in
| Item ID | OXF6253-32X60 |
| AWS Spec: | 5.14 |
| AWS Class: | ERNiCrMo-3 |
| UNS Number: | N06625 |
| Welding Process: | SAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
625 SAW WIRE
Item Number: OXF6251-8X60
Pkg Qty: 60
UOM: Pound
Product Description
- Used for the welding of Inconel® alloy 625, Incoloy® alloy 825, Inco® alloy 25-6MO, and other molybdenum-containing stainless steels.
- This filler metal is also used for surfacing of steel, for welding nickel steels, and for welding various corrosion-resistant alloys such as alloy 20.
- The weld metal of Oxford Alloy 625 has high strength over a broad temperature range and has exceptional corrosion resistance, including resistance to localized attack such as pitting and crevice corrosion.
- Useful for many dissimilar joints involving Inconel® and Incoloy® alloys, carbon steels, low-alloy steels, and stainless steels.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Ni | C | Mn | Fe | S | Si | P |
| 58.0 min | 0.10 max | 0.50 max | 5.0 max | 0.015 max | 0.50 max | 0.02 max |
| Cr | Al | Nb+Ta | Mo | Ti | Cu | |
| 20.0-23.0 | 0.40 max | 3.15-4.15 | 8.0-10.0 | 0.40 max | 0.50 max | |
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 760 (110) typical | Not Specified | Not Specified |
| Typical Results - As welded | 790 (115) | 590 (85) | 35 |
