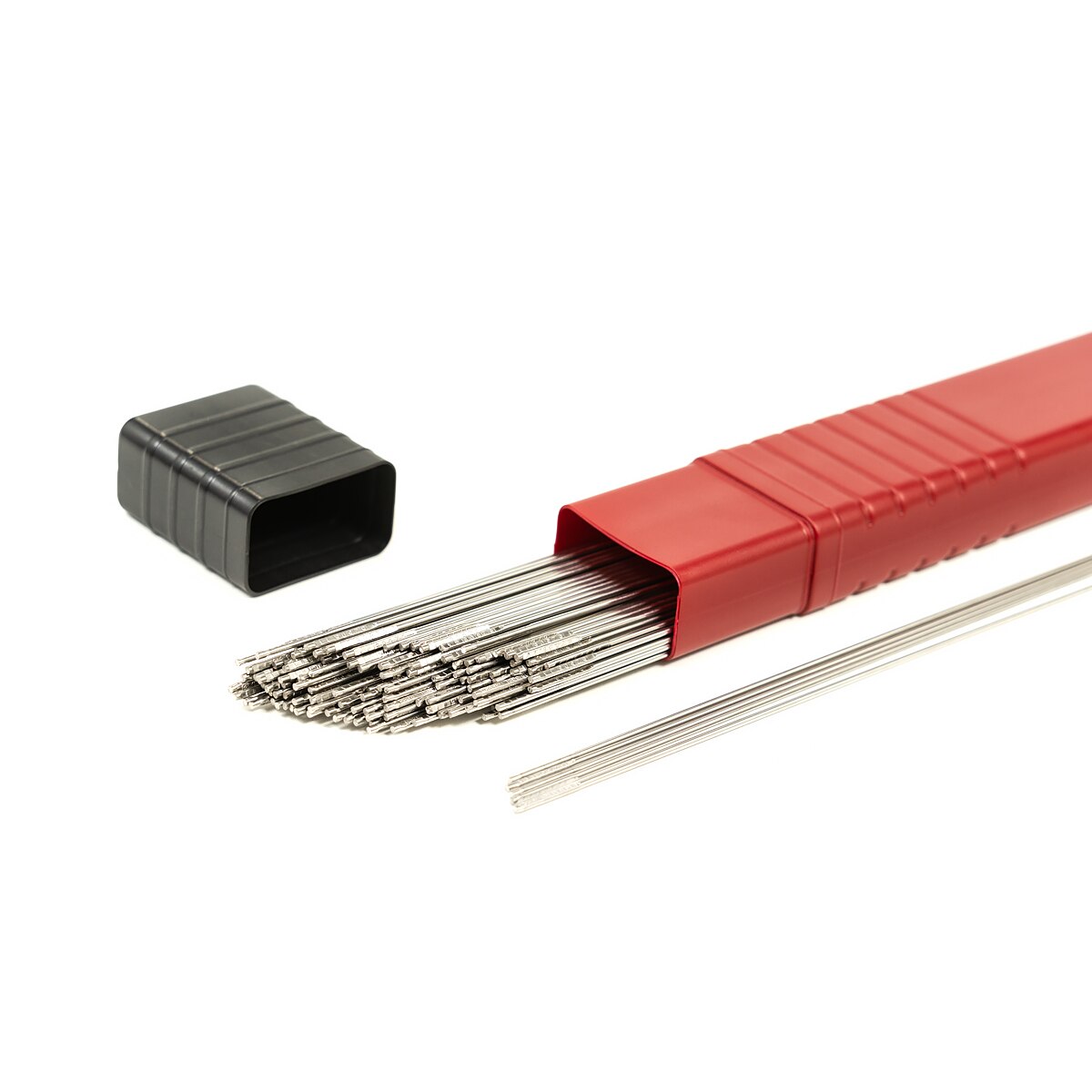

Oxford Alloys 622 TIG WIRE Diameter: 1/8 in
| Item ID | OXF6221-8X36 |
| AWS Spec: | 5.14 |
| AWS Class: | ERNiCrMo-10 |
| UNS Number: | N06022 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
622 TIG WIRE
Item Number: OXF6223-32X36
Pkg Qty: 10
UOM: Pound
Product Description
- Used to weld alloys of similar composition as well as dissimilar joints between nickel-chromium-molybdenum alloys and stainless or carbon or low alloy steels.
- It can also be used for cladded overlay as well as spraying applications.
- Offers excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments.
- This alloy offers an outstanding resistance to stress corrosion cracking, pitting, and crevice corrosion.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Fe | S | P | Cr |
| 0.015 max | 0.50 max | 0.08 max | 2.0-6.0 | 0.01 max | 0.02 max | 20.0-22.5 |
| Mo | W | Ni | Cu | Co | V | |
| 12.5-14.5 | 2.5-3.5 | Bal | 0.50 max | 2.5 max | 0.35 max | |
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 690 (100) typical | Not Specified | Not Specified |
| Typical Results - As welded | 790 (115) | 570 (82) | 38 |
