Product Description

  • Used for shielded-metal-arc welding of Nickel 200 and Nickel 201, welding the clad side of nickel-clad-steel, and surfacing of steel.
  • The reaction of titanium with carbon in the weld metal holds free carbon to a low level so that the electrode can be used with low-carbon nickel (Nickel 201).
  • The weld metal of this electrode has good corrosion resistance, especially in alkalis
  • Used for dissimilar welding, including joints between Nickel 200 or 201 and various iron base and nickel-base alloys.

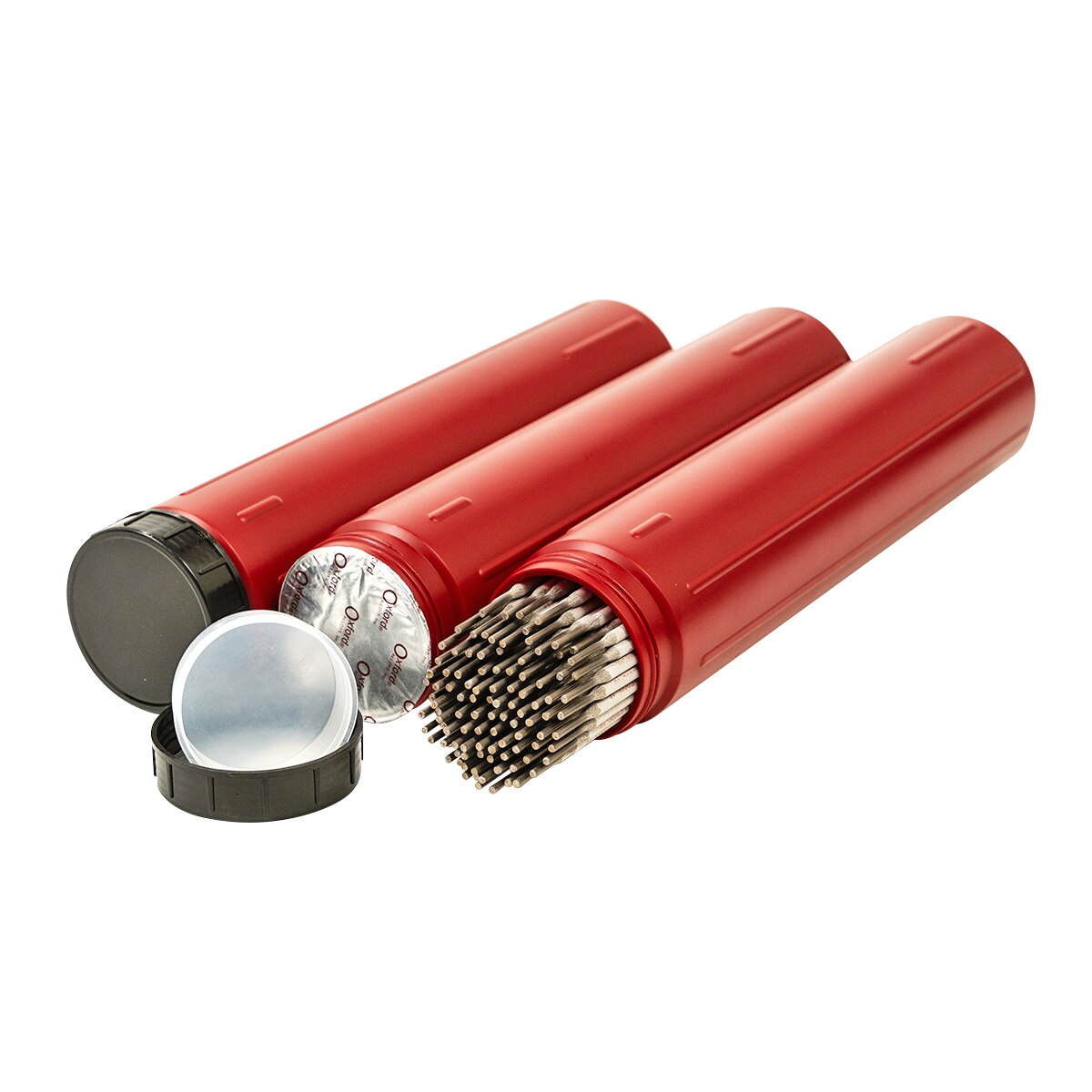

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Fe

P

S

Si

Cu

0.10 max

0.75 max

0.75 max

0.03 max

0.02 max

1.25 max

0.25 max

Ni

Al

Ti

92.0 min

1.0 max

1.0-4.0

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		410 (60) minNot specified20 min
Typical Results -
As welded		500 (73)400 (58)26
