Product Description

  • Used for shielded-metal-arc welding of Inconel® alloy 617.
  • The weld metal of this electrode has high strength, good metallurgical stability, and excellent resistance to corrosion and high-temperature oxidation.
  • Used for welding many dissimilar materials, especially for high temperature applications. Some examples are Inconel® alloys 600 and 601, Incoloy® alloys 880HT and 802, and cast alloys such as HK-40, HP, and HP-45 Modified.

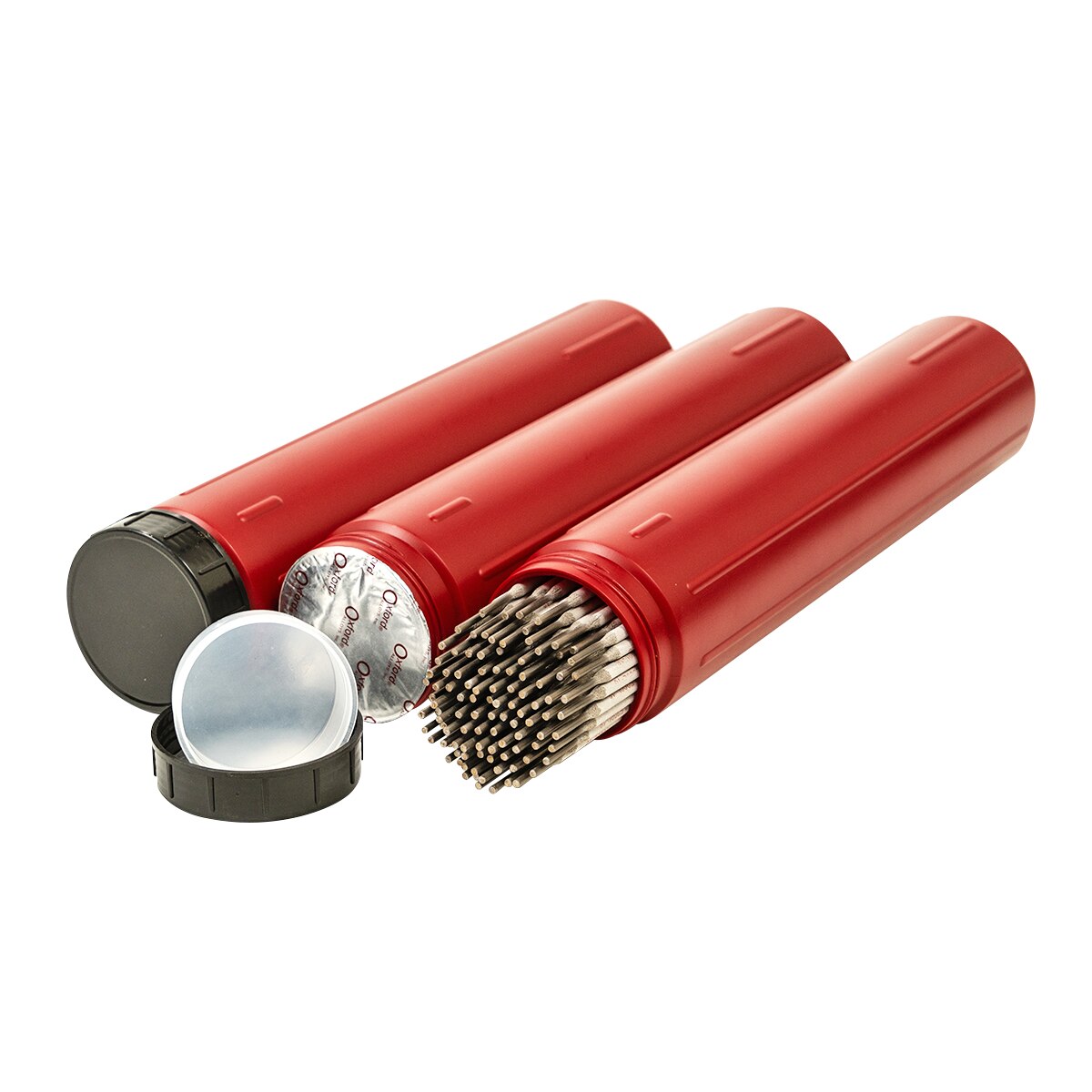

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Fe

P

S

Si

Cu

0.05-0.15

0.3-2.5

5.0 max

0.03 max

0.015 max

0.75 max

0.50 max

Ni

Co

Cr

Nb+Ta

Mo

Bal

9.0-15.0

21.0-26.0

1.0 max

8.0-10.0

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		620 (90) minNot specified25 min
Typical Results -
As welded		760 (110)600 (87)26
