Product Description

  • Used for shielded-metal-arc welding of Inconel ® alloy 625, Incoloy ® alloy 825, Inco ® alloy 25-6MO, and other molybdenum-containing stainless steels.
  • This electrode is also used for surfacing of steel and for welding various corrosion-resistant alloys such as alloy 20.
  • The weld metal has high strength at room and elevated temperatures and has exceptional corrosion resistance, including resistance to pitting, crevice corrosion, and polyphonic acid stress-corrosion cracking.
  • Useful for many dissimilar joints involving Inconel ® alloys, Incoloy ® alloys, stainless steels, low-alloy steels, and carbon steels.

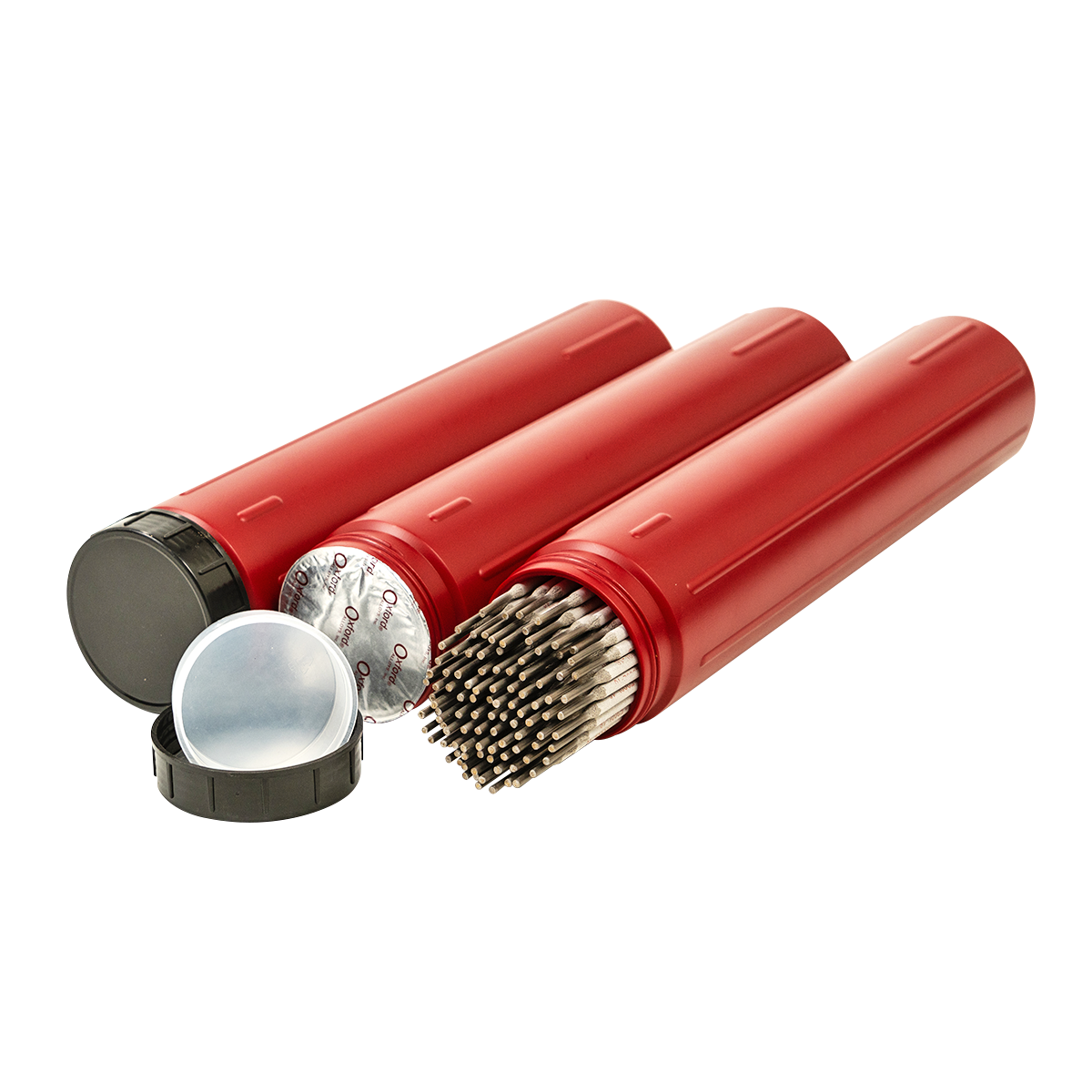

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
NiCMnFeSCuSi
55.0 min0.10 max1.0 max7.0 max0.02 max0.50 max0.75 max
CrNb+TaMoPOET
20.0-23.03.15-4.158.0-10.00.03 max0.50 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		760 (110) minNot specified30 min
Typical Results -
As welded		790 (115)620 (90)34
