Oxford Alloys

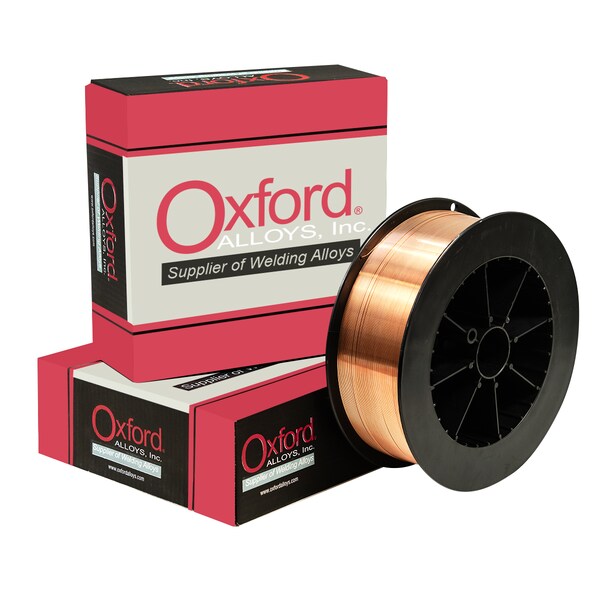

Sil Bronze MIG WIRE
Pkg: 33 lb spool| Item ID | OXFSilBronzeMIG |
| AWS Spec: | 5.7 |
| AWS Class: | ERCuSi-A |
Product Description
- Used for the welding of copper, copper-silicon, and copper-zinc base metals to themselves, and also to steel.
- This filler metal is also used to weld on coated steels.
- Oxford Alloy Silicon Bronze can be used to surface areas subject to corrosion.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Cu+Ag | Zn | Sn | Mn | Fe | Si | Al |
| Bal | 1.0 max | 1.0 max | 1.5 max | 0.50 max | 2.8-4.0 | 0.01 max |
| Pb | ||||||
| 0.02 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 345 (50) min | Not Specified | Not Specified |
| Typical Results - As welded | 350 (51) | ||
