Product Description

  • Can be welded by the gas tungsten arc, plasma arc, and gas metal arc processes.
  • Titanium and titanium alloys are extremely reactive above 1000°F. Additional precautions, exceeding those required during the welding of austenitic stainless steel or aluminum alloys, must be taken to shield the weld and hot root side of the joint from air.
  • In welding titanium or titanium alloys, only argon and helium, and occasionally a mixture of these two gases, are used for shielding.
  • The filler metal composition is usually matched to the grade of titanium being welded. The filler metal and the base metal should be meticulously cleaned at the time of welding.

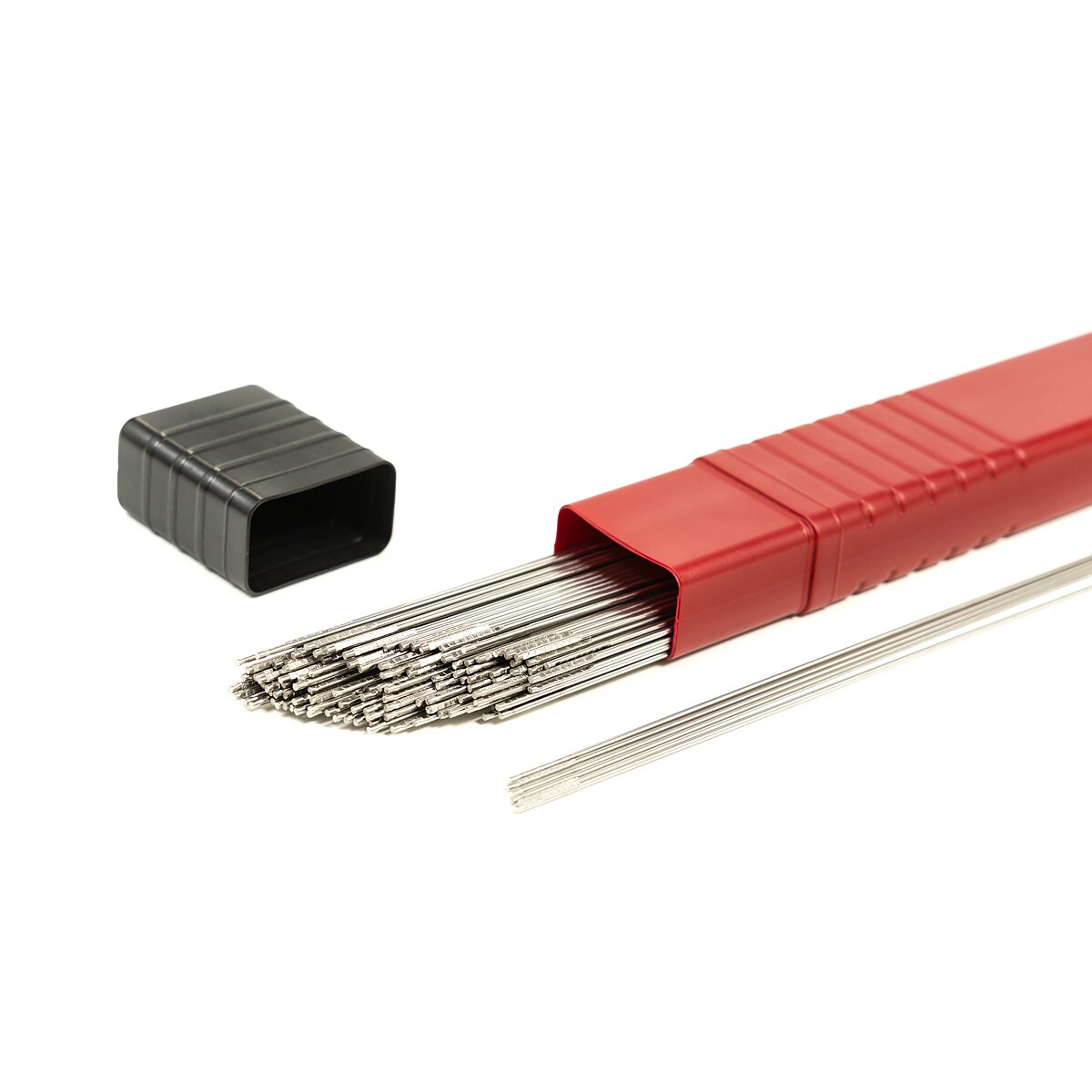

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
COHNAlVFe
0.05 max0.12-0.200.015 max0.03 max5.50-6.753.5-4.50.22 max
Ti
Bal
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		Not specifiedNot specifiedNot specified
Typical Results -
As welded		895 (130)830 (120)10
