Product Description

  • Designed for welding of materials of similar composition, for high temperature service conditions.
  • This alloy is an air-hardening material and as such calls for preheat and interpass temperatures of 350°F minimum during welding.
  • Formerly known as Oxford Alloy ER502 AWS / ASME SFA 5.9.

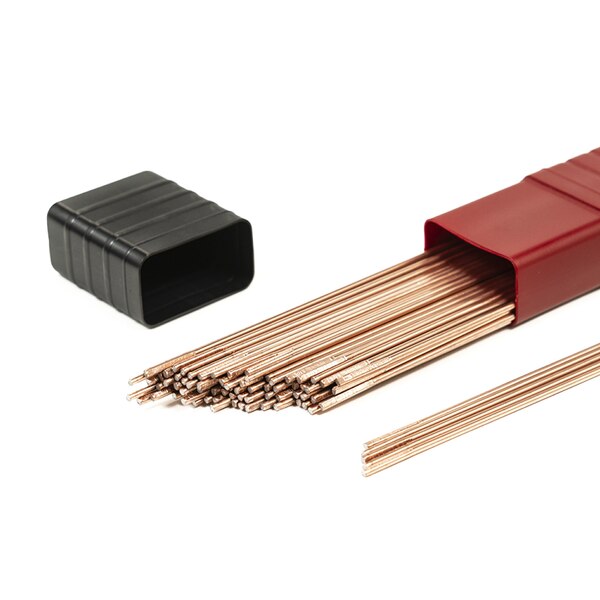

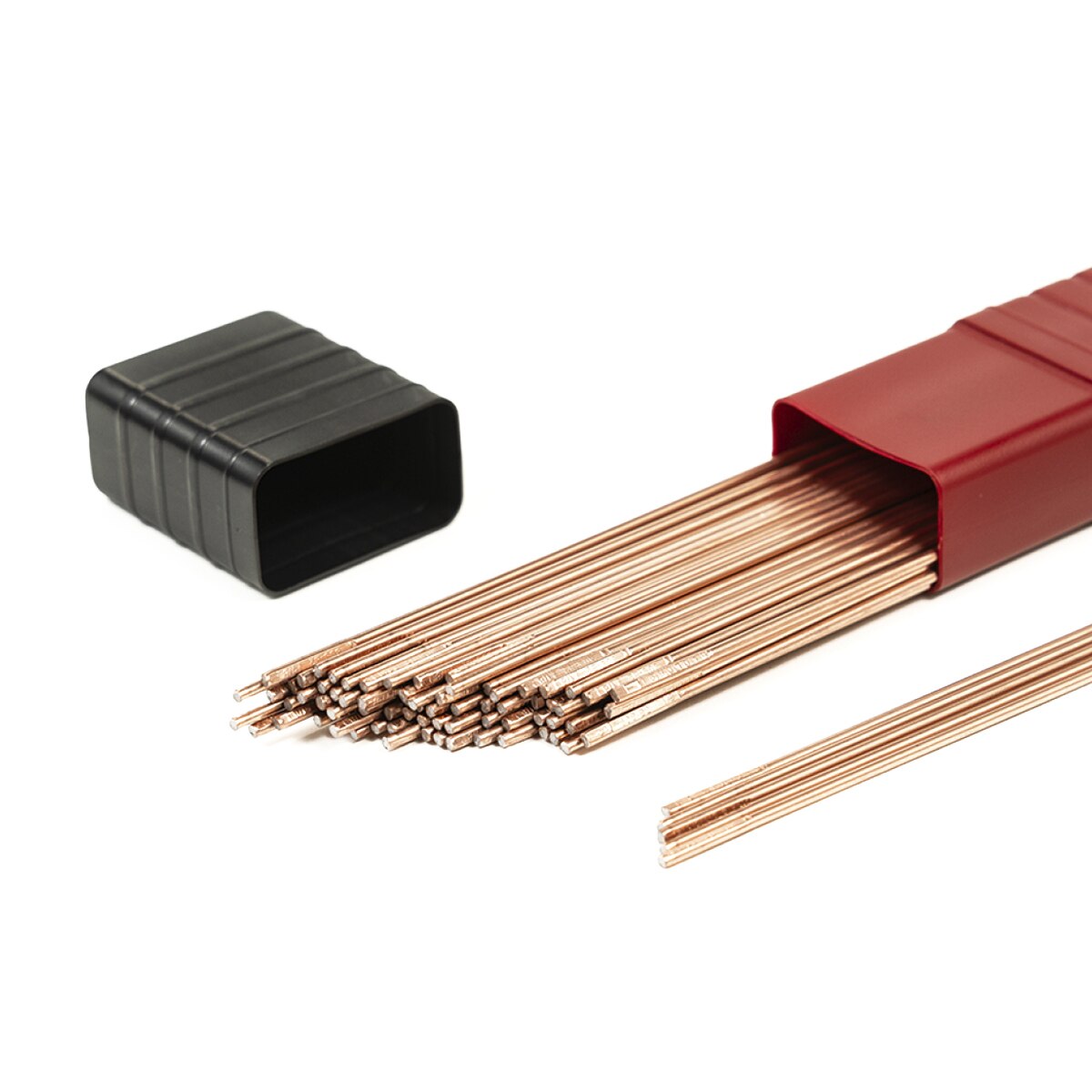

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
CMnSiCrMoSP
0.10 max0.40-0.700.50 max4.50-6.000.45-0.650.025 max0.025 max
NiCu
00.6 max0.35 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		550 (80) min470 (68) min17 min
Typical Results -
As welded		630 (91)480 (70)25
