Oxford Alloys

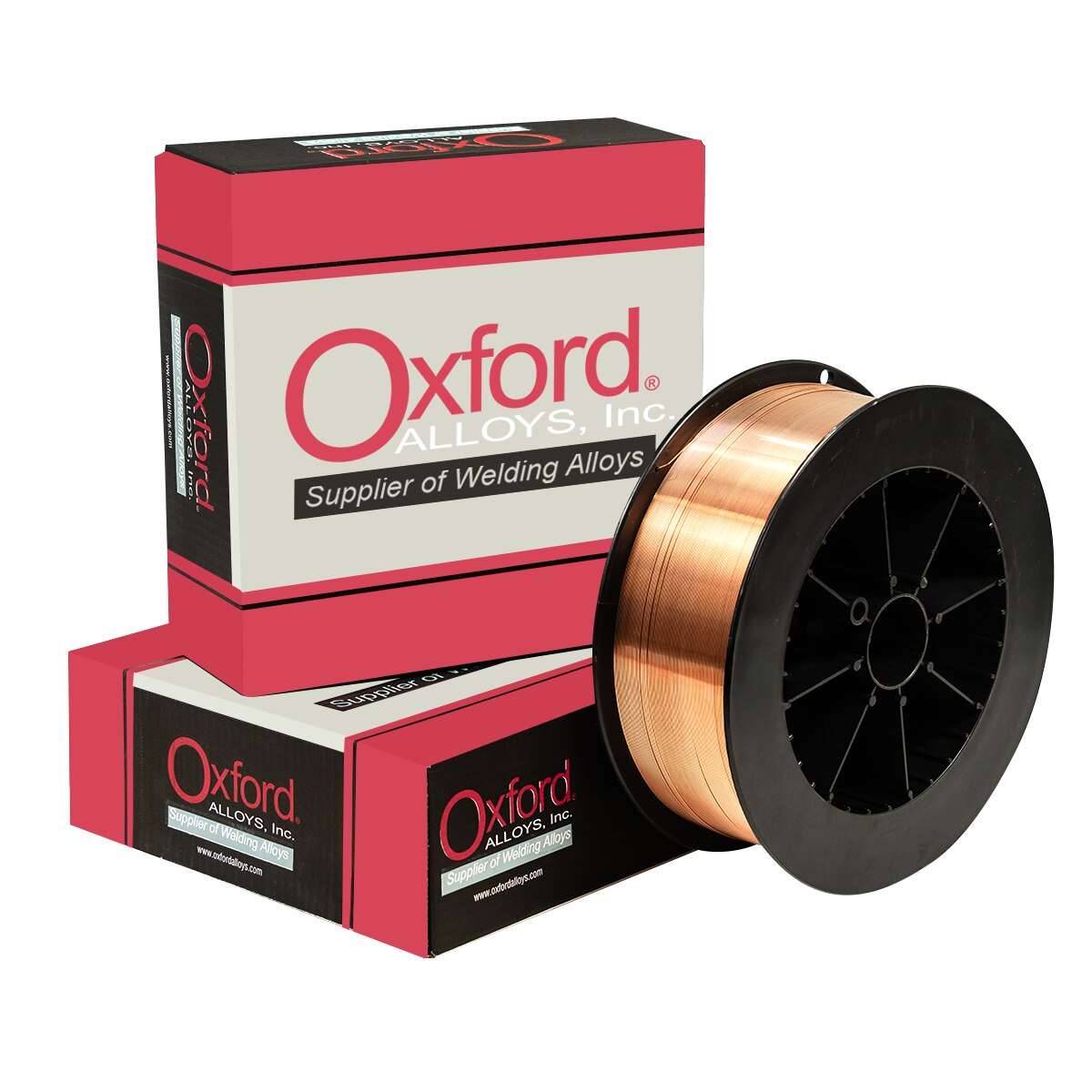

ER80S-B6 MIG WIRE
Pkg: 33 lb spool| Item ID | OXFER80S-B6MIG |
| AWS Spec: | 5.28 |
| AWS Class: | ER80S-B6 |
Product Description
- Designed for welding of materials of similar composition, for high temperature service conditions.
- This alloy is an air-hardening material and as such calls for preheat and interpass temperatures of 350°F minimum during welding.
- Formerly known as Oxford Alloy ER502 AWS / ASME SFA 5.9.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | S | P |
| 0.10 max | 0.40-0.70 | 0.50 max | 4.50-6.00 | 0.45-0.65 | 0.025 max | 0.025 max |
| Ni | Cu | |||||
| 0.6 max | 0.35 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) min | 470 (68) min | 17 min |
| Typical Results - As welded | 630 (91) | 480 (70) | 25 |
