Oxford Alloys

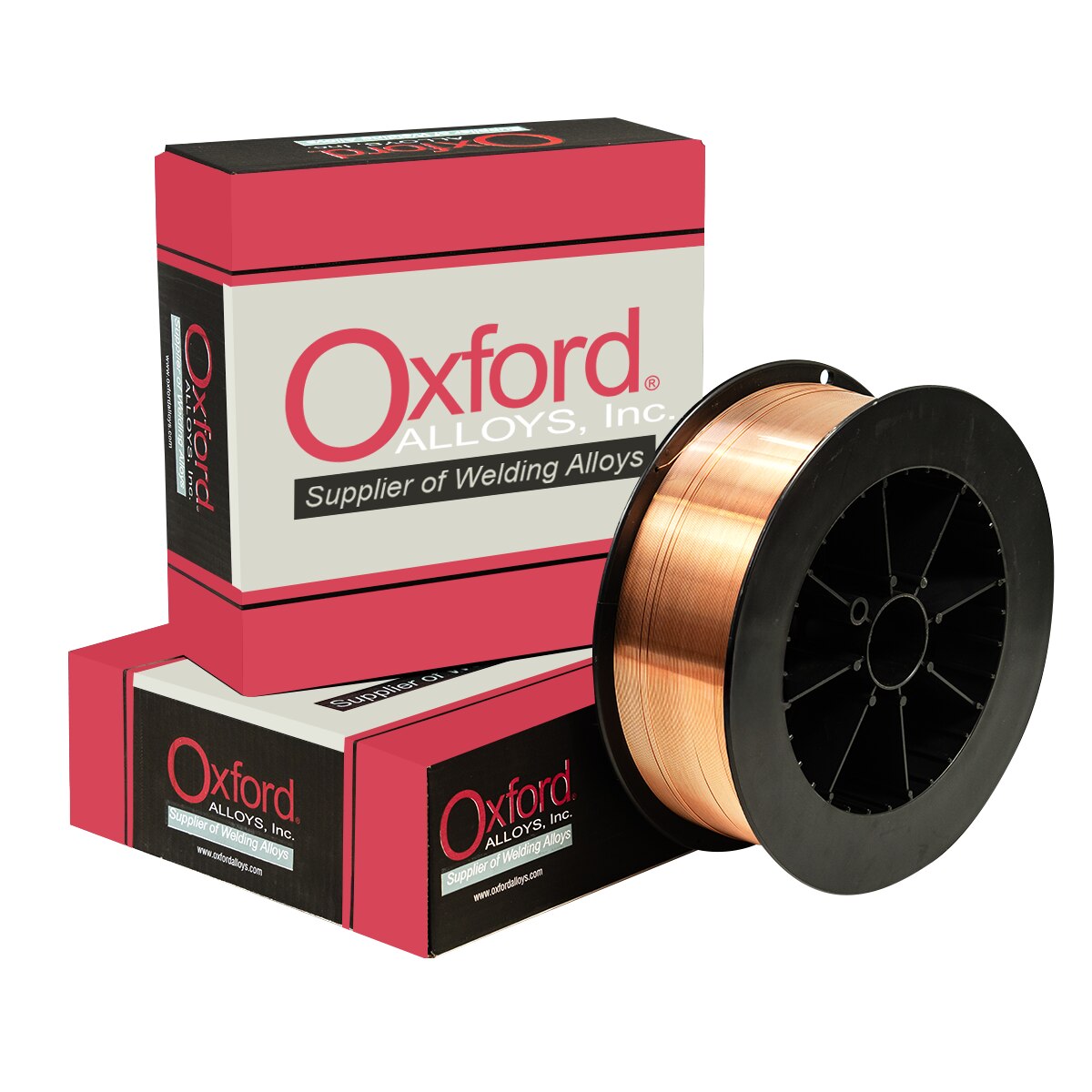

ER80S-B2 MIG WIRE
Pkg: 33 lb spool| Item ID | OXFER80S-B2MIG |
| AWS Spec: | 5.28 |
| AWS Class: | ER80S-B2 |
Product Description
- Designed for welding on 1-1/4 Cr / ½ Mo steels, which are used for high temperature service.
- Preheating and interpass temperatures of no less than 300°F must be used during welding.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | P | S |
| 0.07-0.12 | 0.40-.070 | 0.40-0.70 | 1.20-1.50 | 0.40-0.65 | 0.025 max | 0.025 max |
| Cu | Ni | |||||
| 0.35 max | 0.20 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 515 (75) min | 470 (68) min | 19 min |
| Typical Results - As welded | 590 (86) | 500 (73) | 26 |
