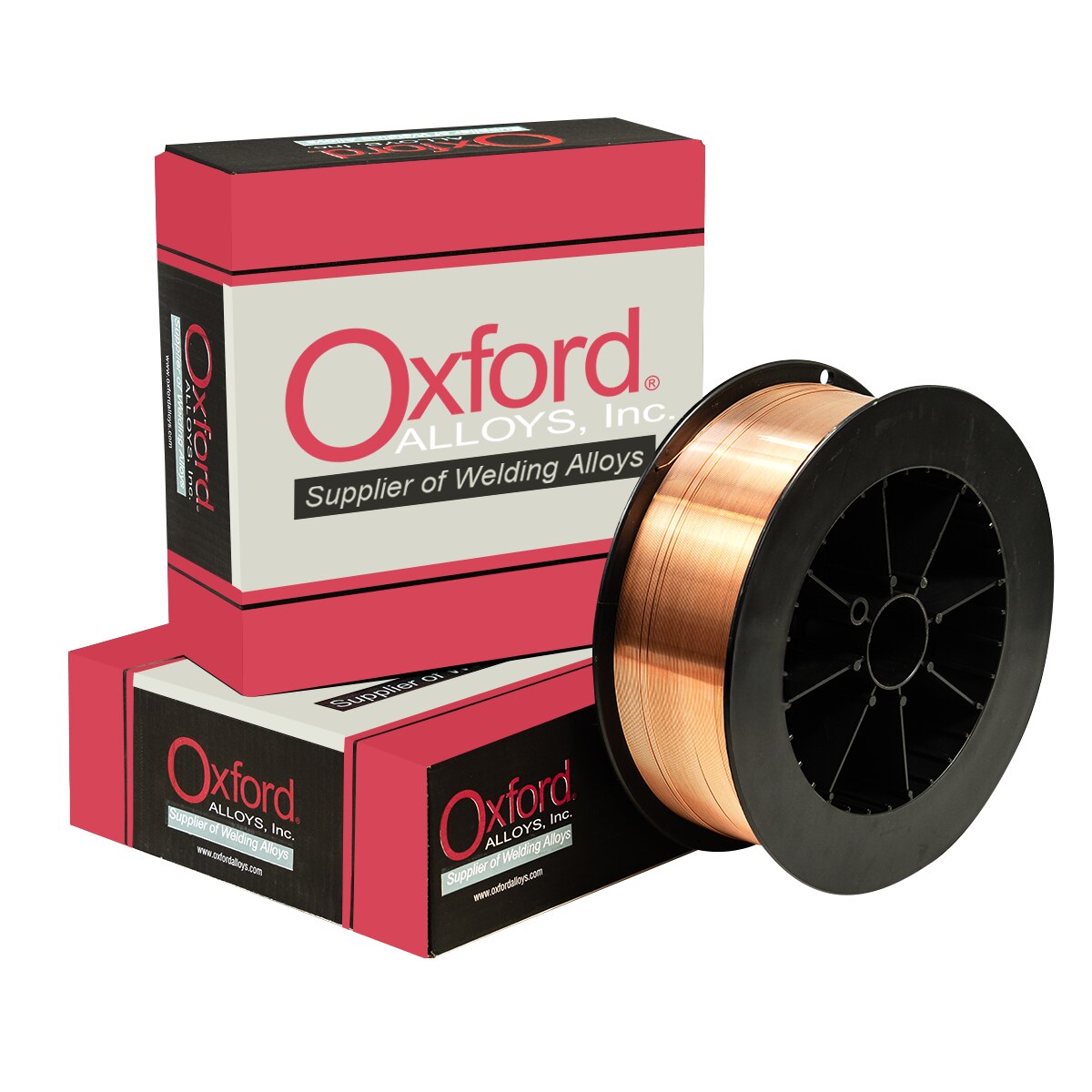

Oxford Alloys 70S-3 MIG WIRE Diameter: 0.035 in
| Item ID | OXF70S-3.035X33 |
| AWS Spec: | 5.18 |
| AWS Class: | ER70S-3 |
| UNS Number: | K11022 |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
70S-3 MIG WIRE
Item Number: OXF70S-3.045X33
Pkg Qty: 33
UOM: Pound
Product Description
- A silicon and manganese deoxidized wire used for mild and low alloy steel general purpose fabrication
- Produces quality welds with rimmed steels, better welds on semi-deoxidized steels and excellent welds on fully deoxidized steels
- This wire also yields an almost slag-free deposit, which does not require cleaning for many applications thereby providing low plate preparation costs, good bead appearance and welder satisfaction
- Some typical applications include earthmoving and farm equipment, automobile frames, sheet metal, ships and barges, railcars, trailers, storage bins and general fabrication.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | Ni | Cr |
| 0.06-0.15 | 0.90-1.40 | 0.45-0.75 | 0.025 max | 0.035 max | 0.15 max | 0.15 max |
| Mo | V | Cu | ||||
| 0.15 max | 0.03 max | 0.50 max | ||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 480 (70) min | 400 (58) min | 22 min |
| Typical Results - As welded | 520 (75) | 430 (62) | 33 |
