Product Description

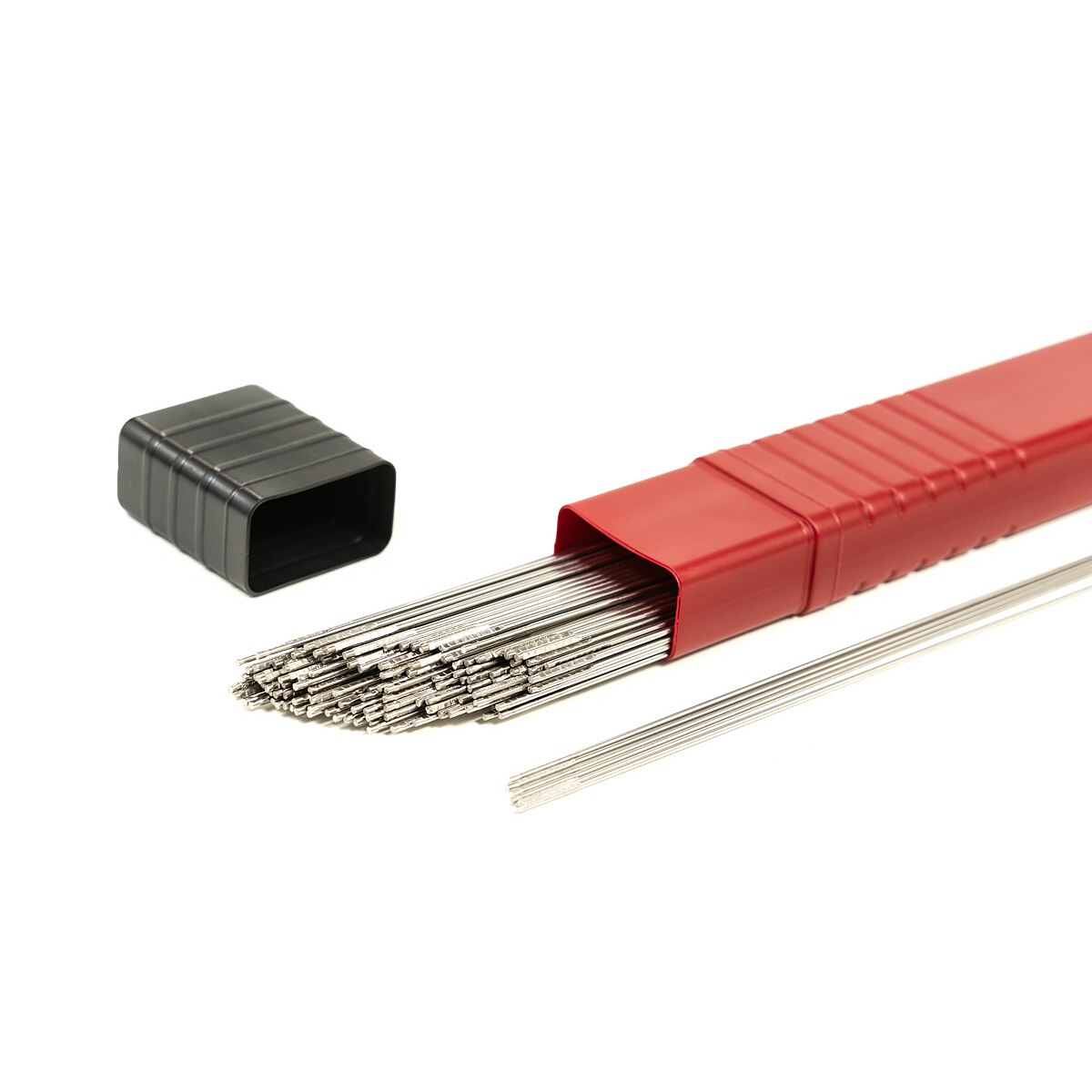

  • A super-duplex grade wire that provides matching chemistry and mechanical property characteristics to wrought super-duplex alloys such as 2507 and Zeron 100, as well as to super-duplex casting alloys (ATSM A890).
  • The wire is over-alloyed 2-3% in nickel to provide the optimum ferrite/austenite ratio in the finished weld.
  • Common industries include: Process piping, pumps & valves, and pressure vessels
  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
CCrNiMoMnSiP
0.03 max24.0-27.08.0-10.52.5-4.52.5 max1.0 max0.03 max
SNCuW
0.02 max0.20-0.301.5 max1.0 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		Not specifiedNot specifiedNot specified
Typical Results -
As welded		850 (123)650 (94)28
