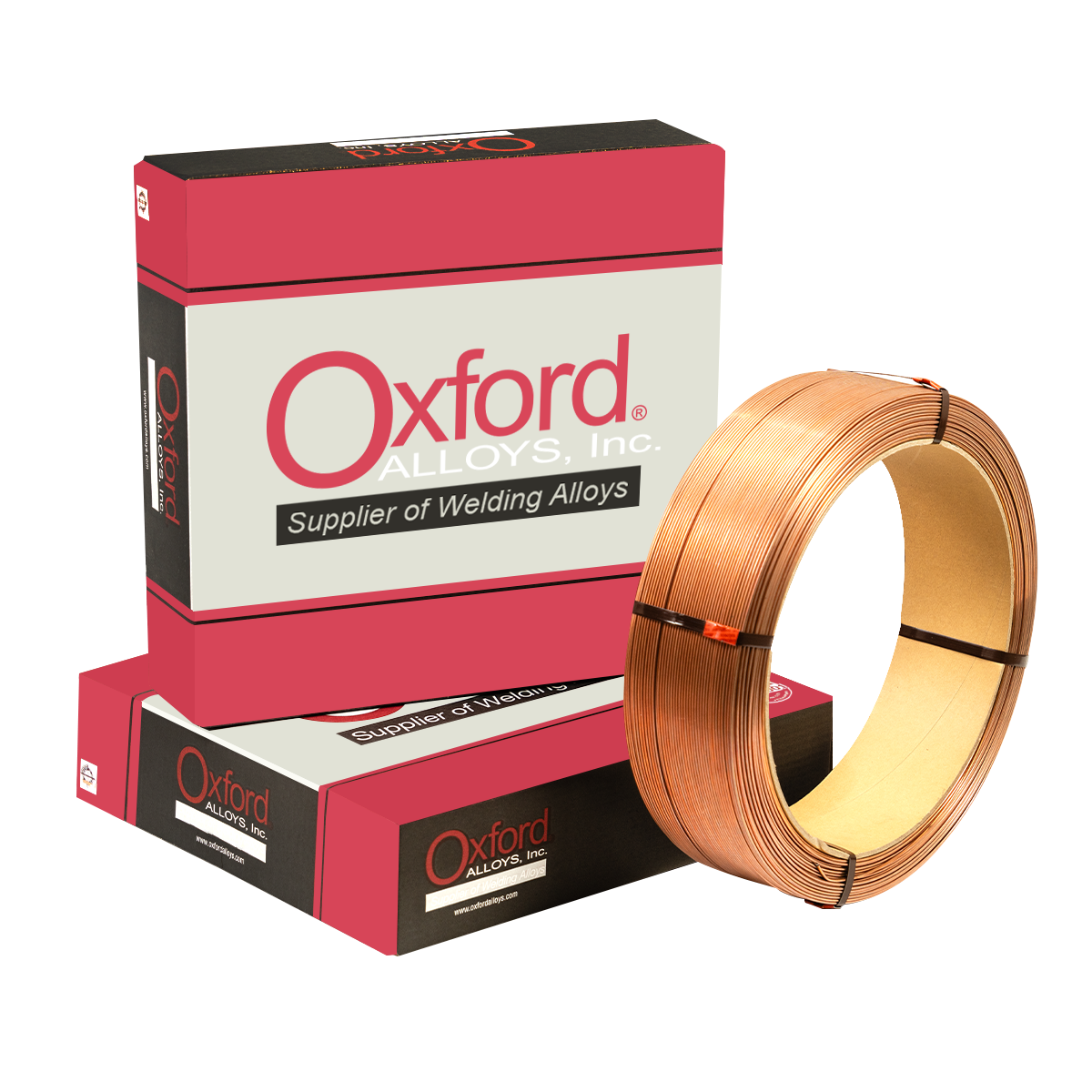

Oxford Alloys EB8 SAW WIRE Diameter: 1/8 in
| Item ID | OXFEB81-8X60 |
| AWS Spec: | 5.23 |
| AWS Class: | EB8 |
| UNS Number: | S50480 |
| Welding Process: | SAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
EB8 SAW WIRE
Item Number: OXFEB83-32X60
Pkg Qty: 60
UOM: Pound
Product Description
- Designed for submerged arc welding applications of materials of similar composition.
- This alloy, being an air-hardening type, calls for preheat and interpass temperatures of not less than 350°F during welding.
- Sometimes referred to as 505.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | P | S |
| 0.10 max | 0.30-0.65 | 0.05-0.50 | 8.0-10.5 | 0.8-1.2 | 0.025 max | 0.025 max |
| Cu | ||||||
| 0.35 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 550 (79) | 430 (63) | 30 |
