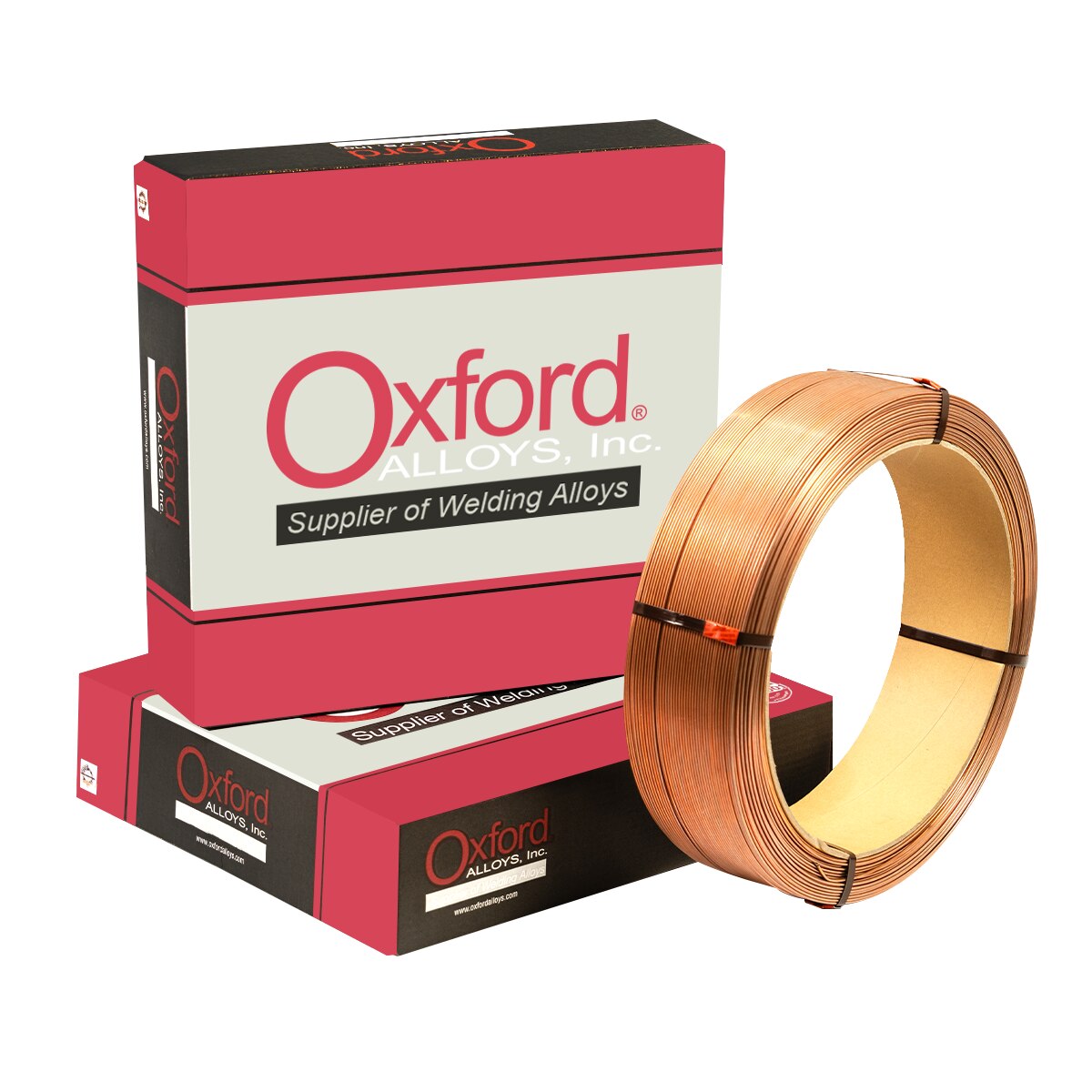

Oxford Alloys EB6 SAW WIRE Diameter: 3/32 in
| Item ID | OXFEB63-32X60 |
| AWS Spec: | 5.23 |
| AWS Class: | EB6 |
| UNS Number: | S50280 |
| Welding Process: | SAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
EB6 SAW WIRE
Item Number: OXFEB61-8X60
Pkg Qty: 60
UOM: Pound
Product Description
- Designed for submerged arc welding applications of materials of similar composition, for high temperature service conditions.
- This is an air-hardening material and as such calls for preheat and interpass temperatures of 350°F minimum during welding.
- Sometimes referred to as 502.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | P | S |
| 0.10 max | 0.35-0.70 | 0.05-0.50 | 4.50-6.50 | 0.45-0.70 | 0.025 max | 0.025 max |
| Cu | ||||||
| 0.35 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 540 (79) | 420 (61) | 32 |
