Oxford Alloys 410NIMO-16 COATED ELECTRODE Diameter: 3/32 in
| Item ID | OXF410NIMO-163-32 |
| AWS Spec: | 5.4 |
| AWS Class: | E410NiMo-16 |
| UNS Number: | W41016 |
| Welding Process: | SMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
410NIMO-16 COATED ELECTRODE
Item Number: OXF410NIMO-161-8
Pkg Qty: 10
UOM: Pound
410NIMO-16 COATED ELECTRODE
Item Number: OXF410NIMO-165-32
Pkg Qty: 10
UOM: Pound
Product Description
- Designed to weld materials of similar chemical composition in cast and wrought forms.
- Also used to overlay mild and low alloy steels.
- Preheat and inter-pass temperatures of not less than 300°F (150°C) are recommended during welding.
- Post-weld heat treatment should not exceed 1150°F (620°C) as higher temperatures may result in hardening.

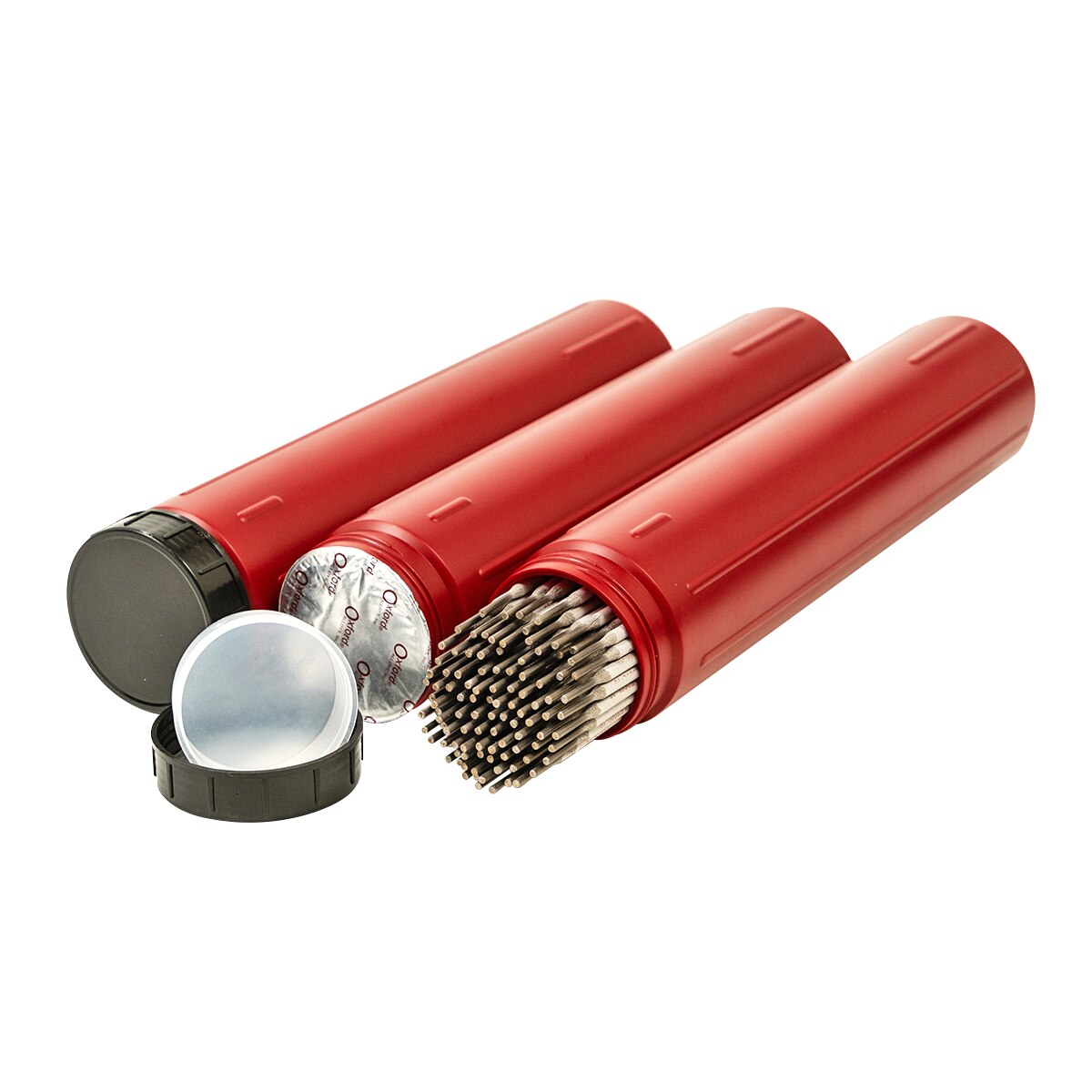

- Hermetically Sealed Tubes
- Stenciled with AWS classification
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Ni | Mo | S |
| 0.06 max | 1.0 max | 0.90 max | 11.0-12.5 | 4.0-5.0 | 0.40-0.70 | 0.03 max |
| P | Cu | |||||
| 0.04 max | 0.75 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 760 (110) min | - | 15 min |
| Typical Results - As welded | 870 (126) | 750 (109) | 22 |
