• 309LMO-16 COATED ELECTRODE

Product Description

  • This electrode is designed for applications requiring molybdenum with a standard 309L analysis.
  • Primarily for welding type 316L and 316 clad steels, or welding molybdenum containing austenitic stainless steel to carbon steel.

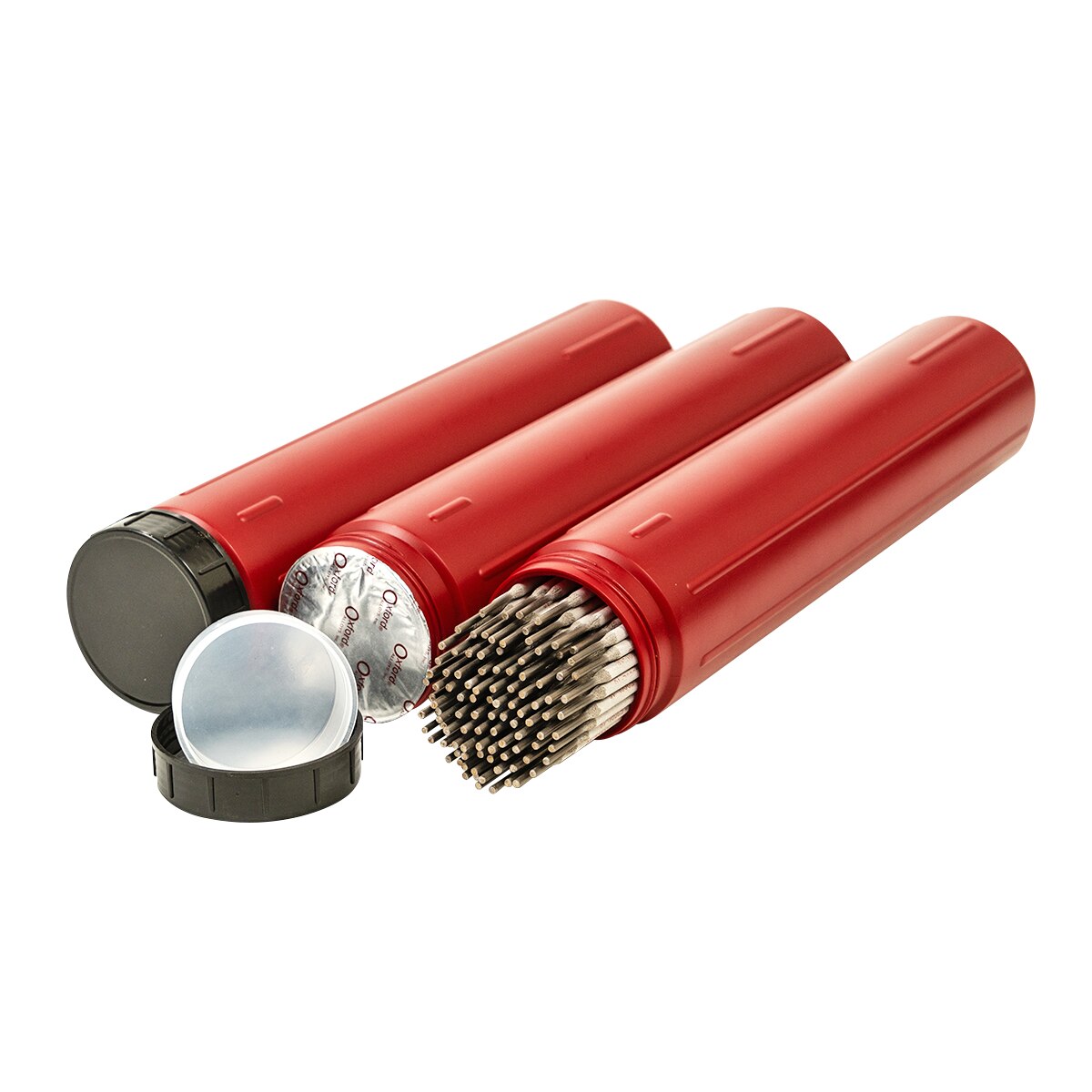

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Cr

Ni

Mn

Si

Mo

P

0.04 max

22.0-25.0

12.0-14.0

0.5-2.5

1.0 max

2.0-3.0

0.04 max

S

Cu

0.03 max

0.75 max

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		520 (75) minNot specified30 min
Typical Results -
As welded		620 (90)440 (64)40
