Product Description

  • Low alloy steel wire with 2% manganese and 0.5% molybdenum as alloying elements.
  • The weld deposits of this wire have moderately high strength with adequate low temperature toughness.
  • A preheat and interpass temperature of not less than 300°F is required during welding

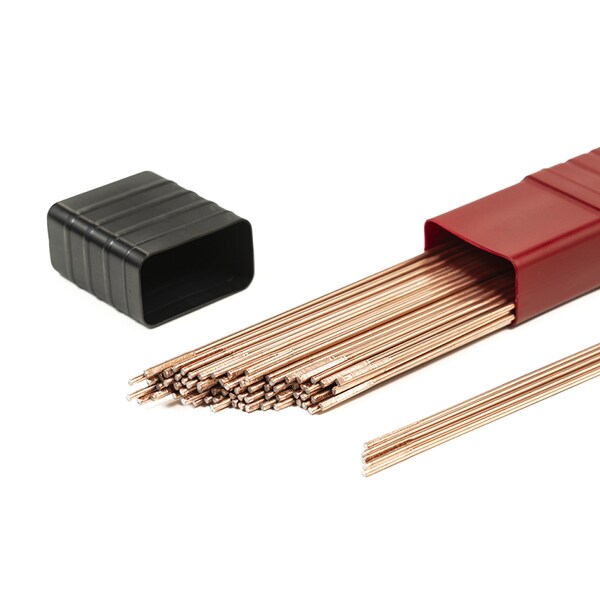

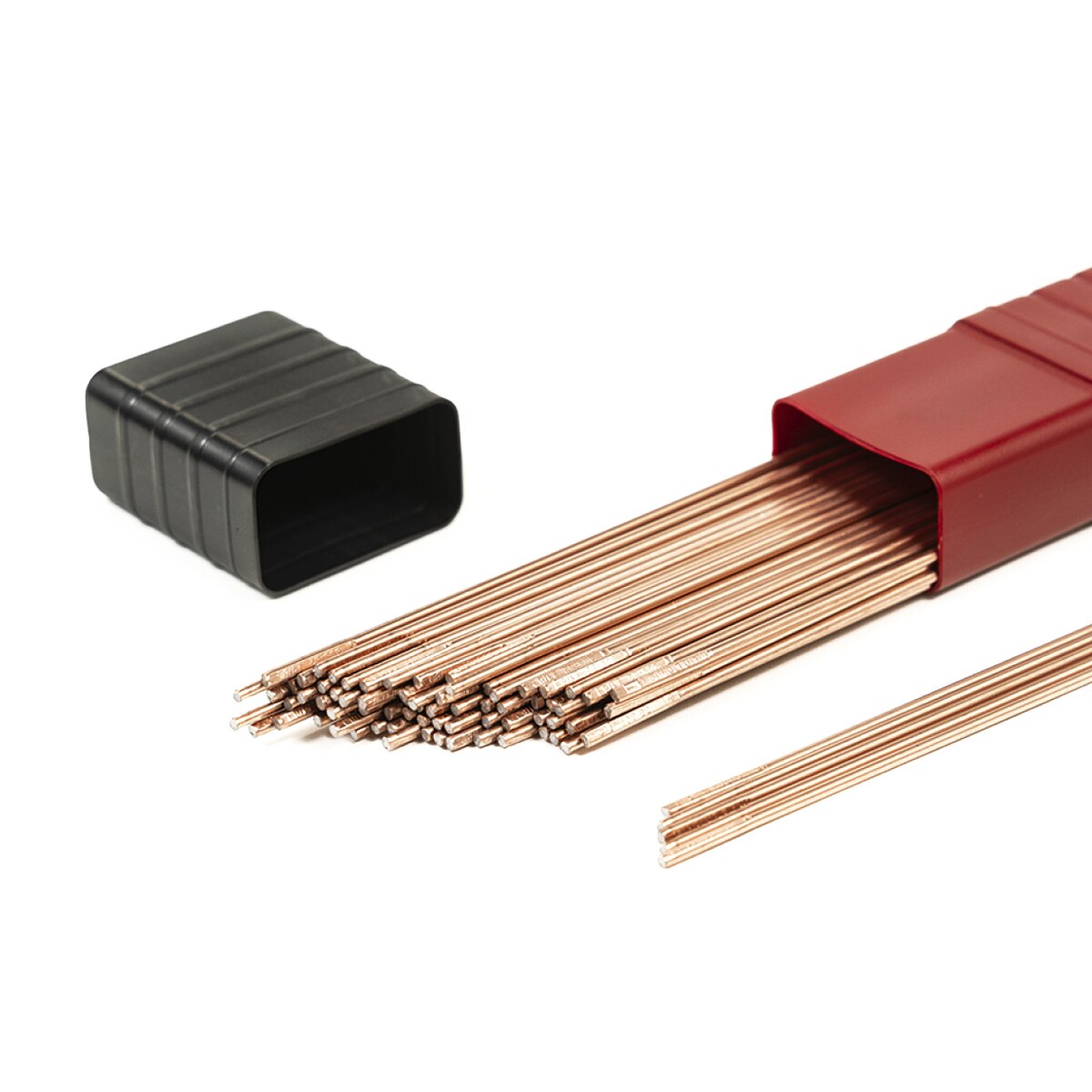

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
CMnSiMoPSCu
0.07-0.121.60-2.100.50-0.800.40-0.600.025 max0.025 max0.50 max
Ni
0.15 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		550 (80) min470 (68) min17 min
Typical Results -
As welded		640 (93)590 (86)22
