Product Description

  • Good mechanical properties, deep penetration, and excellent X-ray quality welds.
  • Produces fillet welds with little spatter. Cleaning time is reduced because the slag cover is complete and can be easily removed.
  • Applications include those in general fabrication, ship or barge construction, building or bridge erection, and off-shore industries.

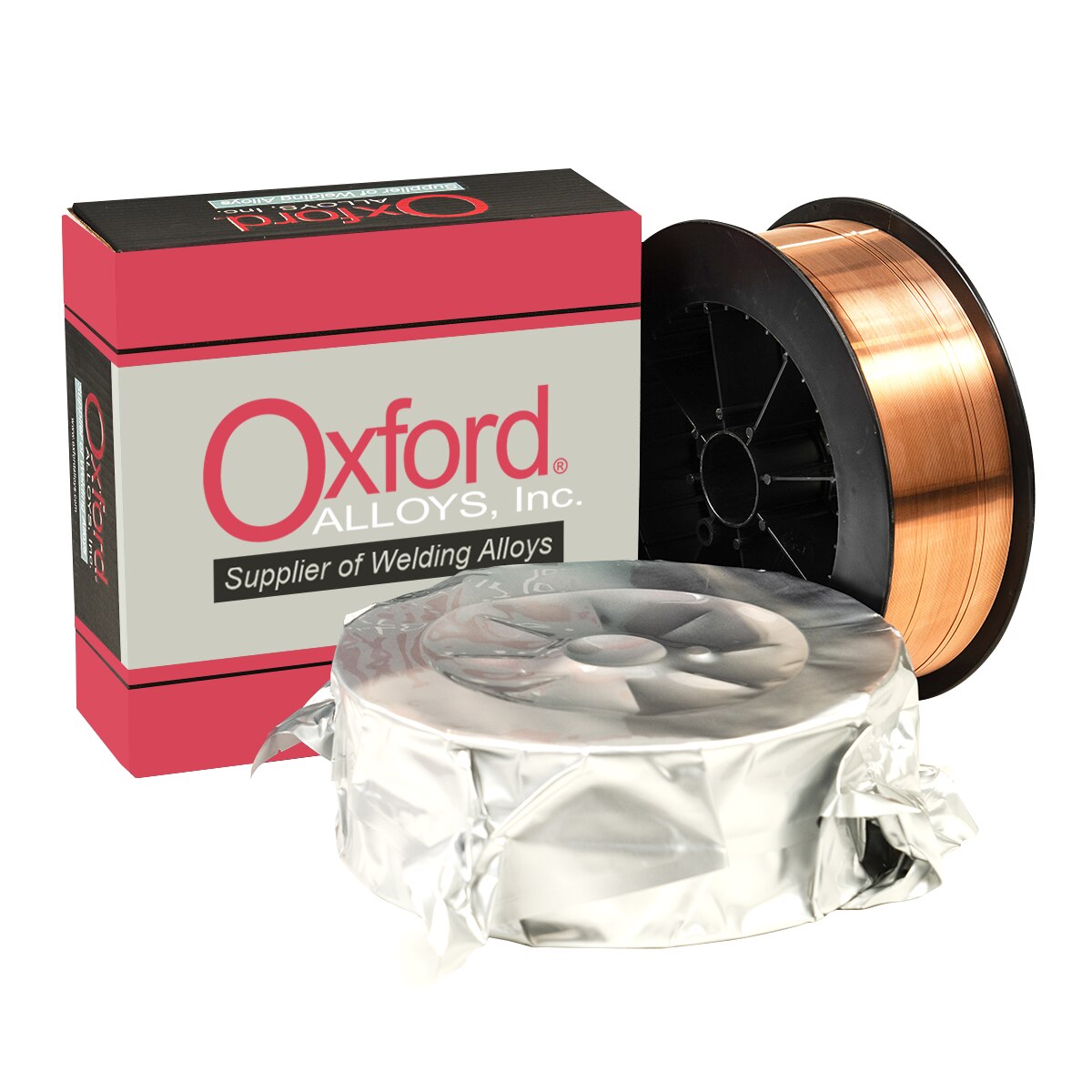

  • Spools are vacuum packed in moisture proof polyfoil bags to ensure the highest quality..

Technical

Chemical Composition
CMnSiPSCrNi
0.12 max1.75 max0.90 max0.03 max0.03 max0.20 max0.50 max
MoVCu
0.30 max0.08 max0.35 max
Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		482-655 (70-95)400 (58) min22 min
Typical Results -
As welded		520 (76)500 (73)28
