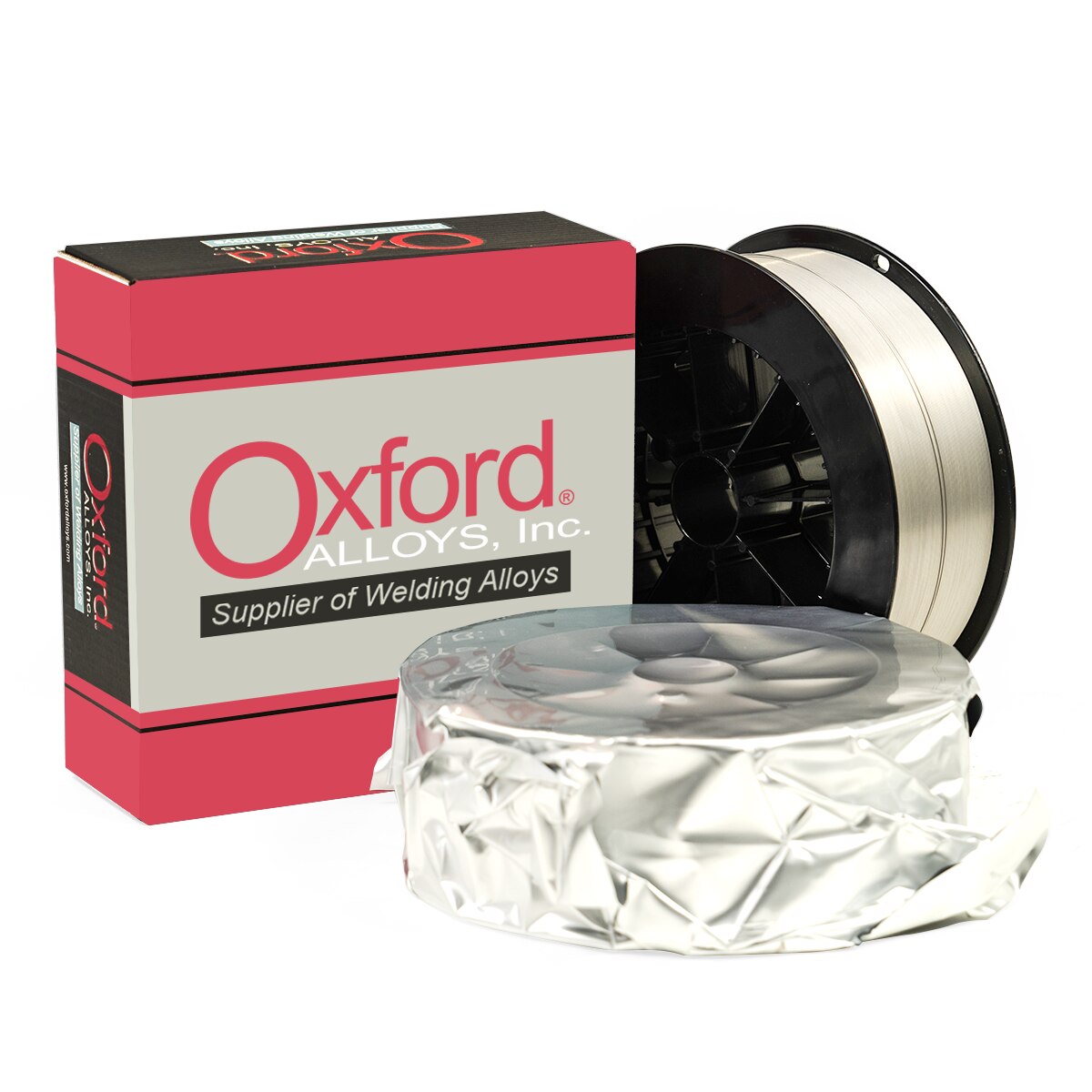

Oxford Alloys 625T-1 FLUX CORE Pkg: 33 lb spool
| Item ID | OXF625T-1FCW |
| AWS Spec: | 5.34 |
| AWS Class: | ENiCrMo3T1-1/4 |
| Welding Process: | FCAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
625T-1 FLUX CORE
Item Number: OXF625T-11-16X33
Pkg Qty: 33
UOM: Pound
625T-1 FLUX CORE
Item Number: OXF625T-1.045X33
Pkg Qty: 33
UOM: Pound
Product Description
- A gas shielded all position flux cored wire that results in a deposit that is within the chemical composition requirements of AWS 5.34
- Some typical applications include joining nickel-chromiummolybdenum alloys, surfacing steel with nickelchromium-molybdenum weld metal, joining steels to nickel based alloys.
- This flux cored wire is also used to clad the side of joints in steels that have been clad with nickel-chromium-molybdenum.
- All position welding
- Vacuumed packaged
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | Fe | Nb |
| 0.10 max | 0.5 max | 0.5 max | 20.0-23.0 | 8.0-10.0 | 5.0 max | 3.15-4.15 |
| Ti | S | P | Ni | Cu | ||
| 0.4 max | 0.015 max | 0.02 max | 58.0 min | 0.5 max | ||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 690 (100) min | - | 25 min |
| Typical Results - As welded | 770 (112) | 500(72) | 38 |
