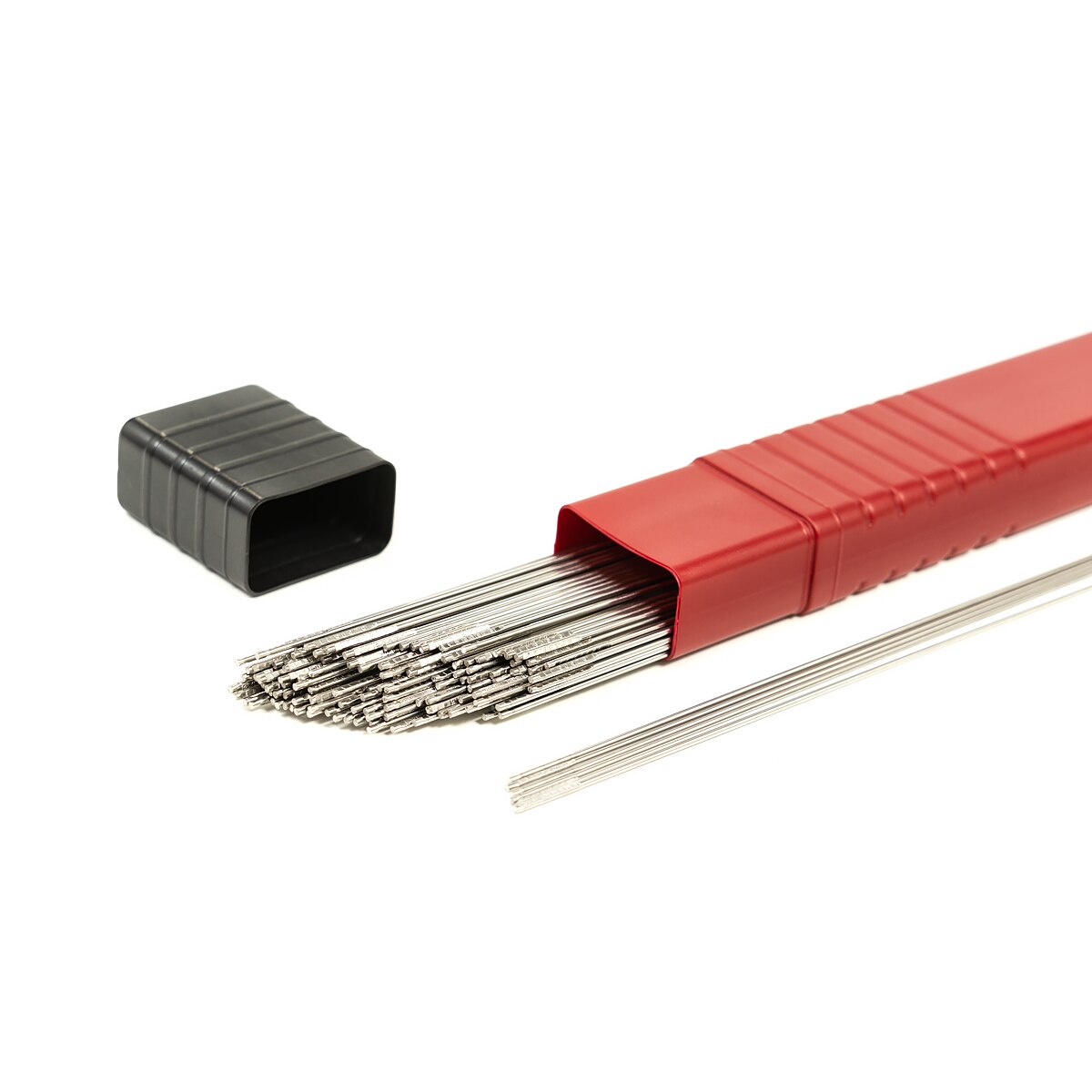

Oxford Alloys 61 TIG WIRE Diameter: 3/32 in
| Item ID | OXF613-32X36 |
| AWS Spec: | 5.14 |
| AWS Class: | ERNi-1 |
| UNS Number: | N02061 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
61 TIG WIRE
Item Number: OXF611-16X36
Pkg Qty: 10
UOM: Pound
61 TIG WIRE
Item Number: OXF611-8X36
Pkg Qty: 10
UOM: Pound
Product Description
- Used for the welding of Nickel 200 and 201.
- The reaction of titanium with carbon maintains a low level of free carbon and enables the filler metal to be used with Nickel 201.
- Dissimilar-welding applications for Oxford Alloy 61 include joining Nickel 200 and 201 to stainless steels, carbon steels, Inconel® alloys, Incoloy® alloys, copper-nickel alloys, and Monel® alloys.
- This filler metal is also used for joining Monel® alloys and copper-nickel alloys to carbon steels, and for joining copper-nickel alloys to Inconel® and Incoloy® alloys.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Ni | C | Mn | Fe | S | Si | Cu |
| 93.0 min | 0.15 max | 1.0 max | 1.0 max | 0.015 max | 0.75 max | 0.25 max |
| Al | Ti | P | ||||
| 1.5 max | 2.0-3.5 | 0.03 max | ||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 380 (55) typical | Not Specified | Not Specified |
| Typical Results - As welded | 460 (67) | 260 (38) | 28 |
