Product Description

  • This filler metal is recommended for metal-to-metal abrasion and high impact applications involving high temperatures and/or corrosive media.
  • Some typical applications are valves of all kinds, shear blades, hot punches and saw guides
  • Oxford Alloy #6 bare is the most generally useful cobalt alloy; it has excellent resistance to many forms of mechanical and chemical degradation over a wide temperature range.
  • This alloy has outstanding self-mated anti-galling properties, high temperature hardness, and a high resistance to cavitation erosion, which result in its wide use as a valve seat material.

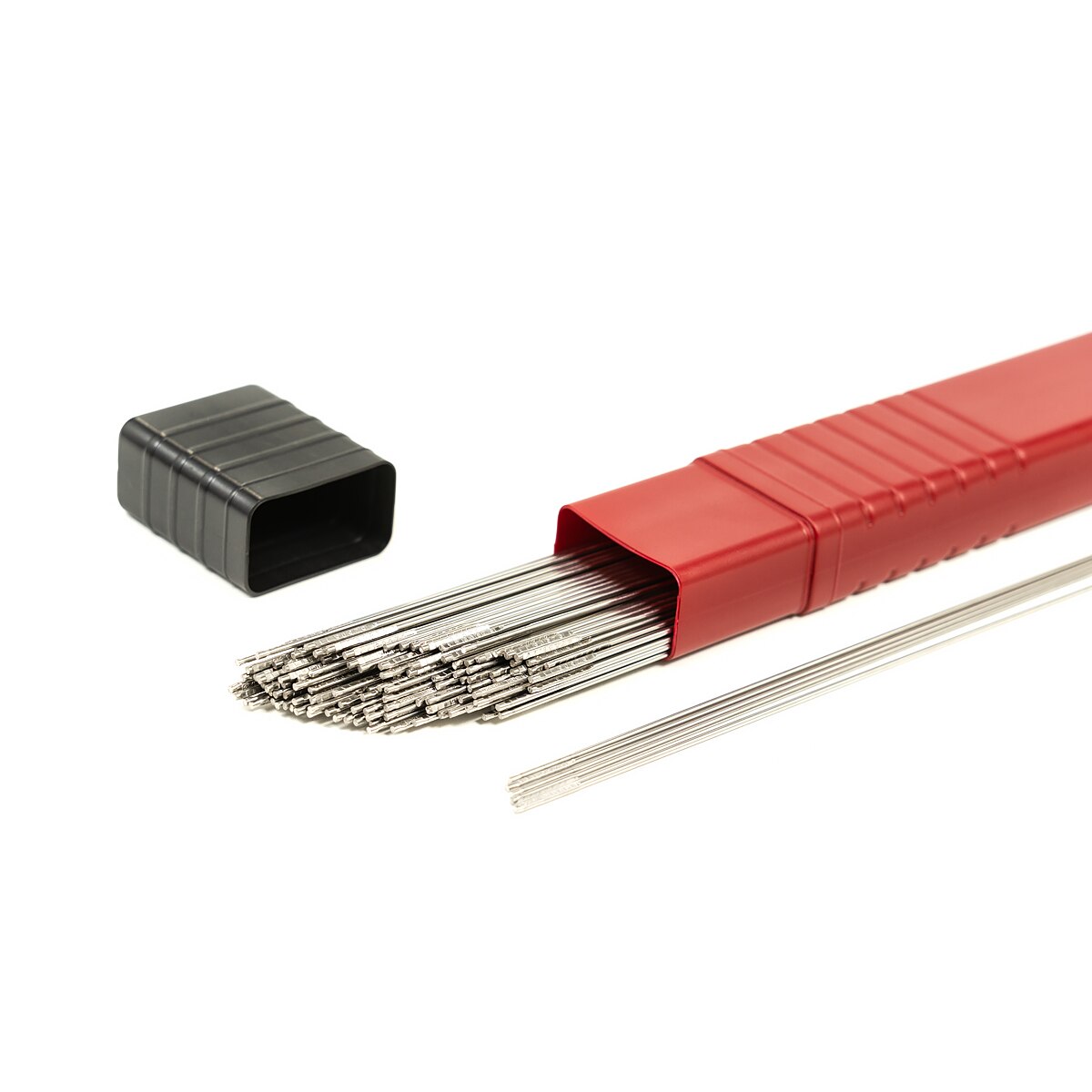

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
C Mn Si Cr Ni Mo Fe
0.9-1.4 1.0 max 2.0 max 26.0-32.0 3.0 max 1.0 max 3.0 max
W Co
3.0-6.0 Bal
Mechanical Properties
Tensile Strength
MPa (ksi) 		Yield Strength
MPs (ksi) 		Elongation
%
AWS
Requirements 		Not specified Not specified Not specified
Typical Results -
As welded 		- - -
