Product Description

  • A nickel-chromium-molybdenum alloy with an extra low carbon and silicon content.
  • This alloy is used to weld low-carbonnickel-chromium-molybdenum alloys, for welding the clad side of joints in steel clad with low-carbon-nickel-chromium-molybdenum alloys, and for welding low-carbon-nickel-chromium-molybdenum alloys to steel and to other nickel-base alloys, such as alloys C-276, 22, 625 and other high alloys such as 6Mo stainless, 825 and even common grades of stainless steels.
  • Some typical base metals that this alloy is used on are ASTM and ASME B and SB 574, 575, 619, 622 and 626.

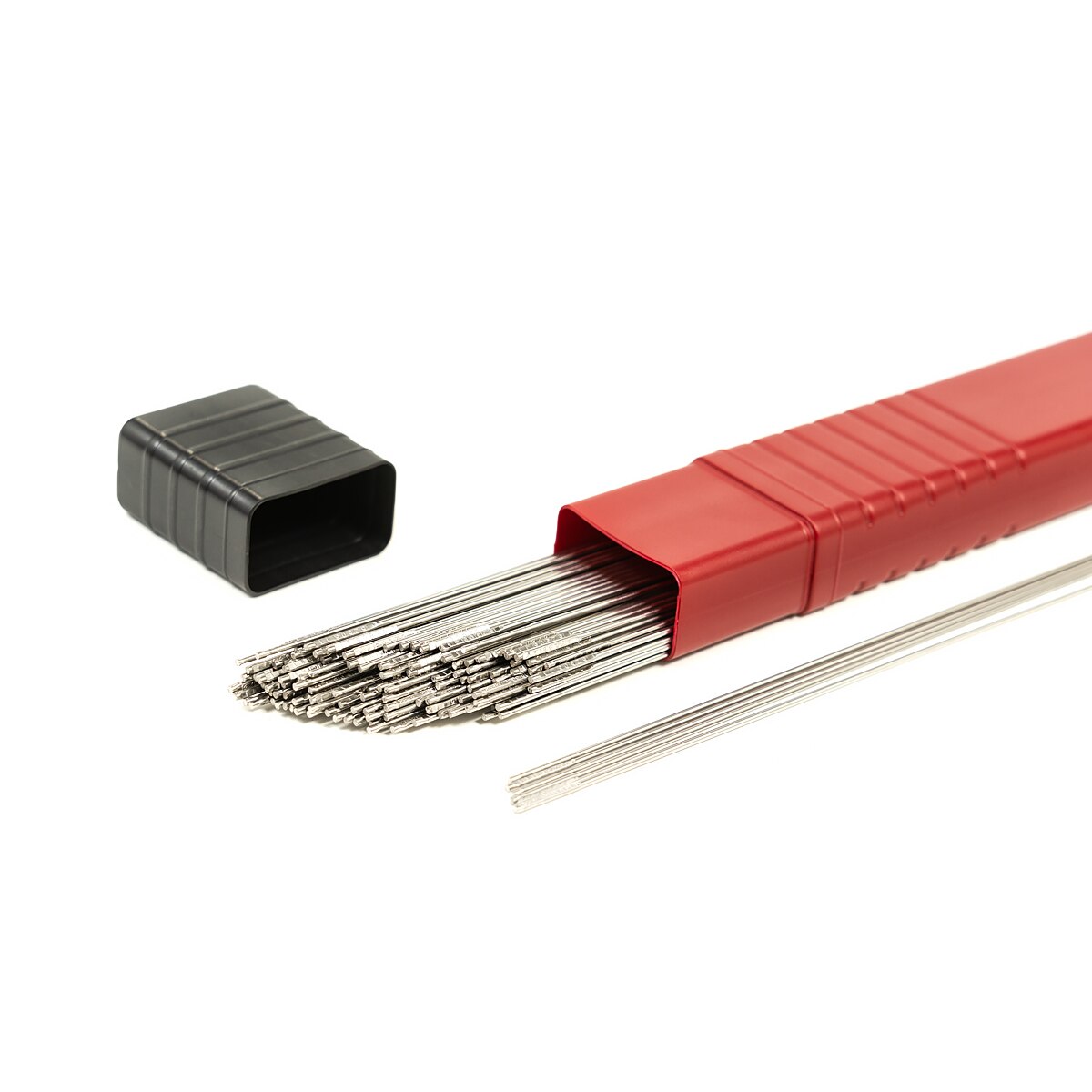

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
C Mn Fe P S Si Ni
0.01 max 0.5 max 1.5 max 0.015 max 0.01 max 0.10 max Bal
Co Al Cr Mo Cu
0.03 max 0.1-0.4 22.0-24.0 15.0-16.5 0.50 max
Mechanical Properties
Tensile Strength
MPa (ksi) 		Yield Strength
MPs (ksi) 		Elongation
%
AWS
Requirements 		760 (110) typical Not Specified Not Specified
Typical Results -
As welded 		700 (102) 400 (58) 30
