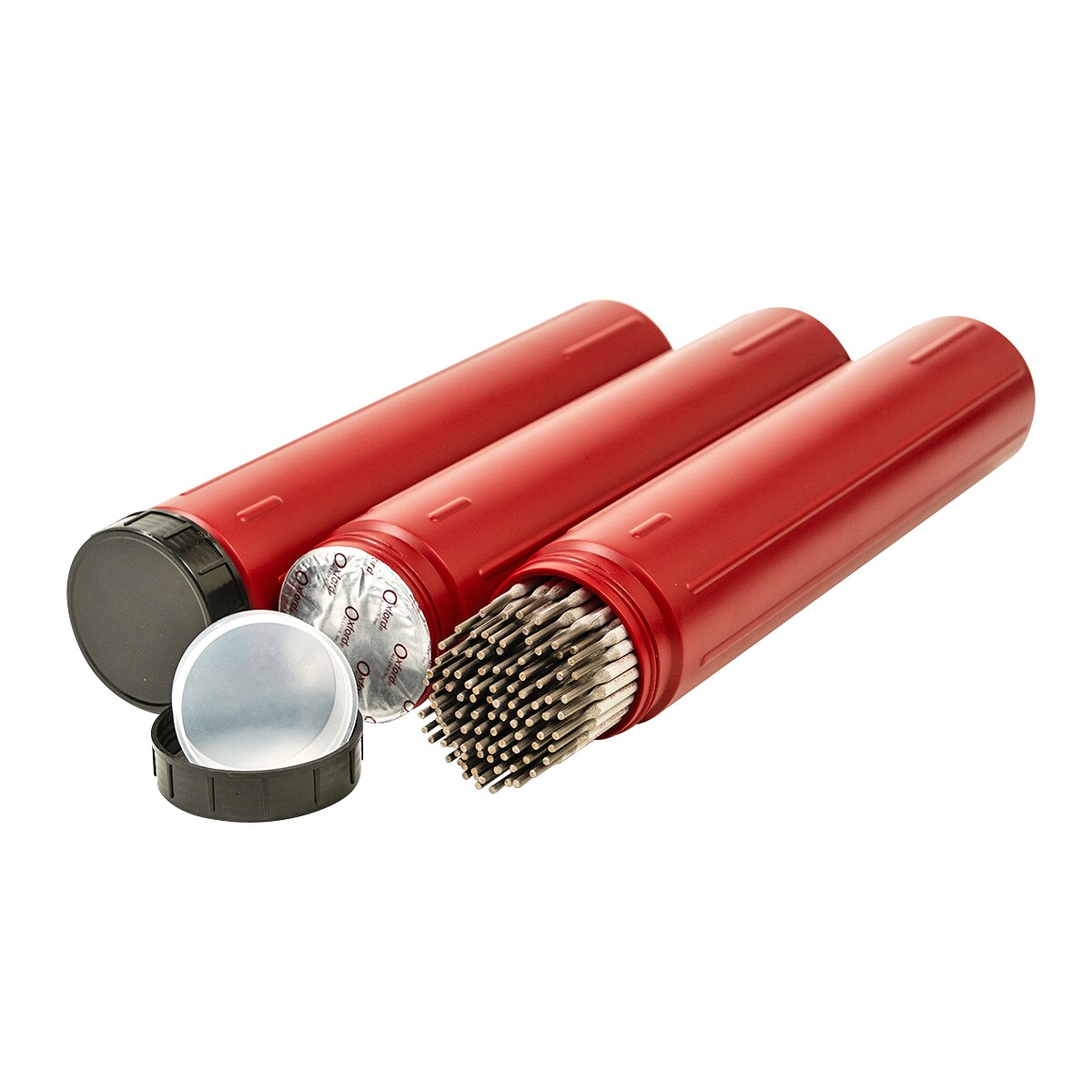

• 310-16 COATED ELECTRODE

Product Description

  • Used for welding stainless steels of similar composition in cast and wrought forms.
  • The weld deposit is fully austenitic, and as such, calls for minimal heat input during welding.
  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Si

Cr

Ni

S

P

0.08-0.20

1.0-2.5

0.75 max

25.0-28.0

20.0-22.5

0.03 max

0.03 max

Cu

Mo

0.75 max

0.75 max

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		550 (80) minNot specified30 min
Typical Results -
As welded		590 (86)410 (59)38
