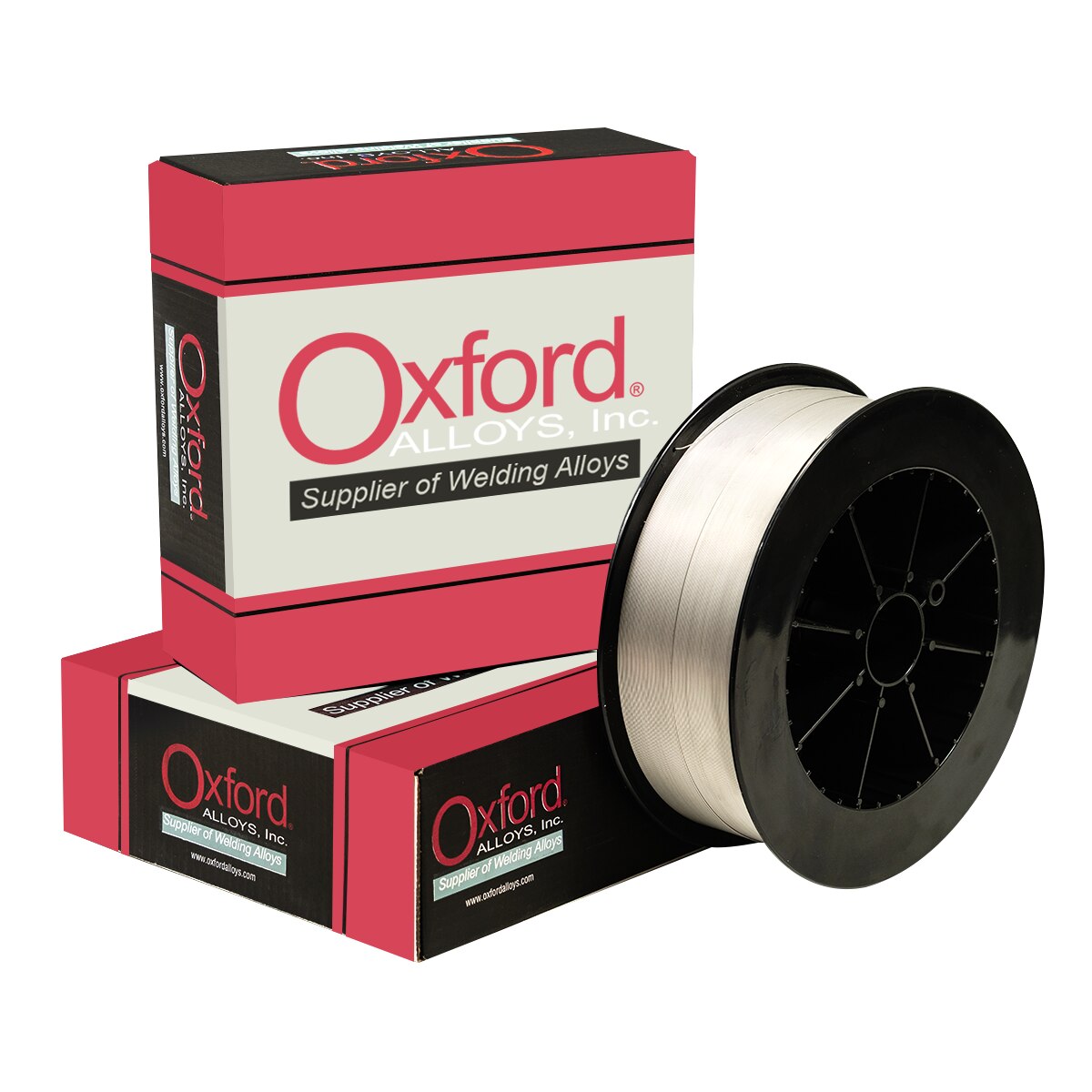

Oxford Alloys 308LSi MIG WIRE Pkg: 33 lb spool
| Item ID | OXF308LSiMIG |
| AWS Spec: | 5.9 |
| AWS Class: | ER308LSi |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
308LSI MIG WIRE
Item Number: OXF308LSI.035X33
Pkg Qty: 33
UOM: Pound
308LSI MIG WIRE
Item Number: OXF308LSI.045X33
Pkg Qty: 33
UOM: Pound
308LSI MIG WIRE
Item Number: OXF308LSI1-16X33
Pkg Qty: 33
UOM: Pound
Product Description
- Used to weld base metal of similar composition such as AISI 301, 302, 304, 304L, 305, 308, 308L and 347.
- Higher Silicon content improves the usability of the filler metal in the gas metal arc welding process.
- If the dilution by the base metal produces a low ferrite or fully austenitic weld, the crack sensitivity of the weld is somewhat higher than that of a lower silicon content weld metal.
- Superior feedability
- Certified Material Test Reports on all heats
- ABS Approved
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Cr | Ni | Mo | Mn | Si | P |
| 0.03 max | 19.5-22.0 | 9.0-11.0 | 0.75 max | 1.0-2.5 | 0.65-1.00 | 0.03 max |
| S | Cu | |||||
| 0.03 max | 0.75 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 580 (84) | 400 (58) | 41 |
