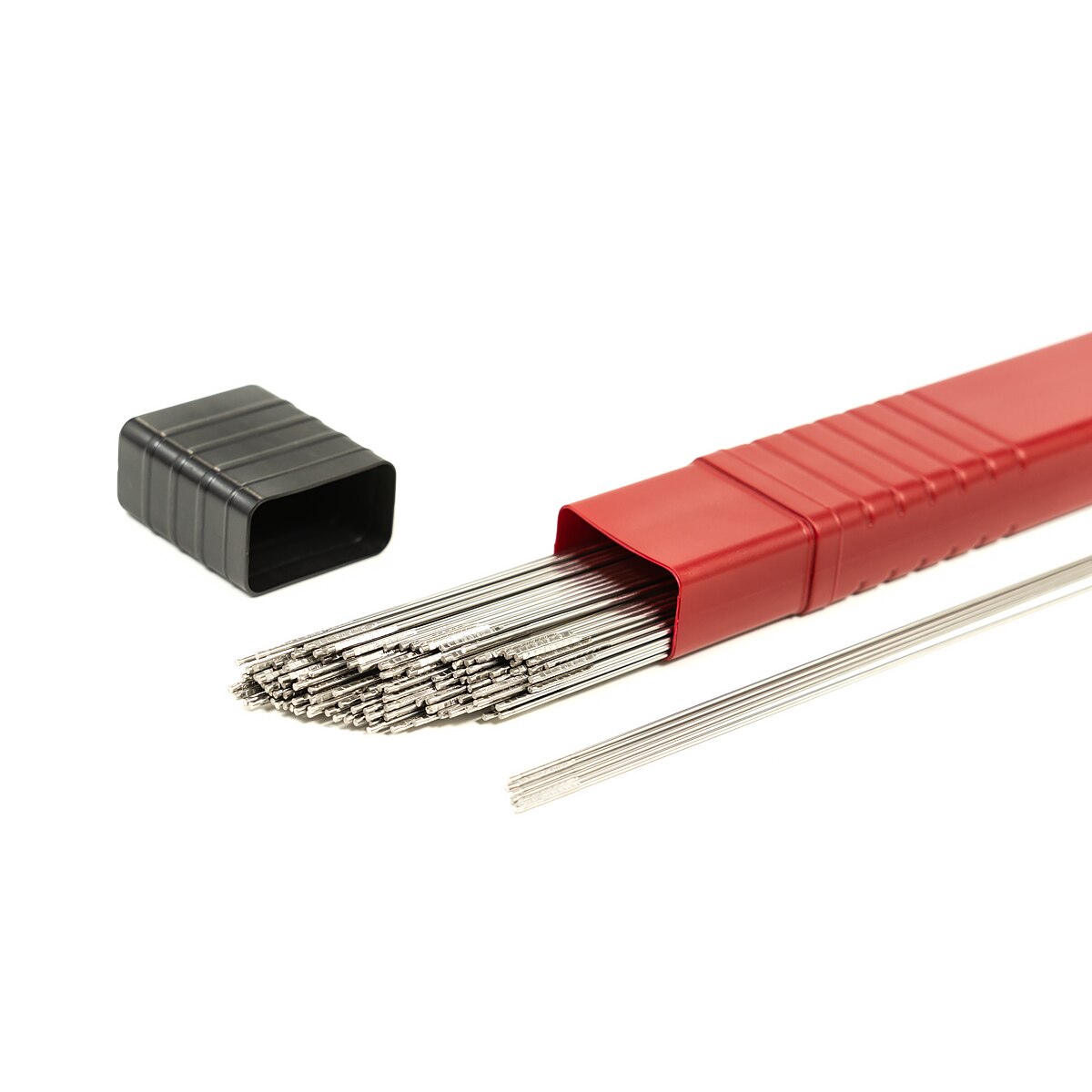

Oxford Alloy 308L TIG

Item ID: OXF308LTIG

AWS Spec: 5.9
AWS Class: ER308/308L
Brand: Oxford Alloys
Packaging: 10 lb Tube | 40 lb Master Carton
  • Ideal for welding Types 304L, 321, and 347.
  • The carbon content is held to a maximum of .03% to reduce the possibility of intergranular carbide precipitation.
  • This increases the resistance to intergranular corrosion without the use of stabilizers such as columbium (niobium) or titanium.
  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats
  • ABS Approved
Chemical Composition
CMnSiCrNiSP
0.03 max1.0-2.50.30-0.6519.5-22.09.0-11.00.03 max0.03 max
MoCu
0.75 max0.75 max
Mechanical Properties
Tensile Strength
MPa (ksi)
Yield Strength
MPs (ksi)
Elongation
%
AWS
Requirements
Not specifiedNot specifiedNot specified
Typical Results -
As welded
580 (84)400 (58)42
