• 308H-16 COATED ELECTRODE

Product Description

  • Used to weld unstabilized austenitic stainless steels such as 302, 304H and 305.
  • Provides a high carbon deposit (minimum of .04% carbon) for high temperature applications.

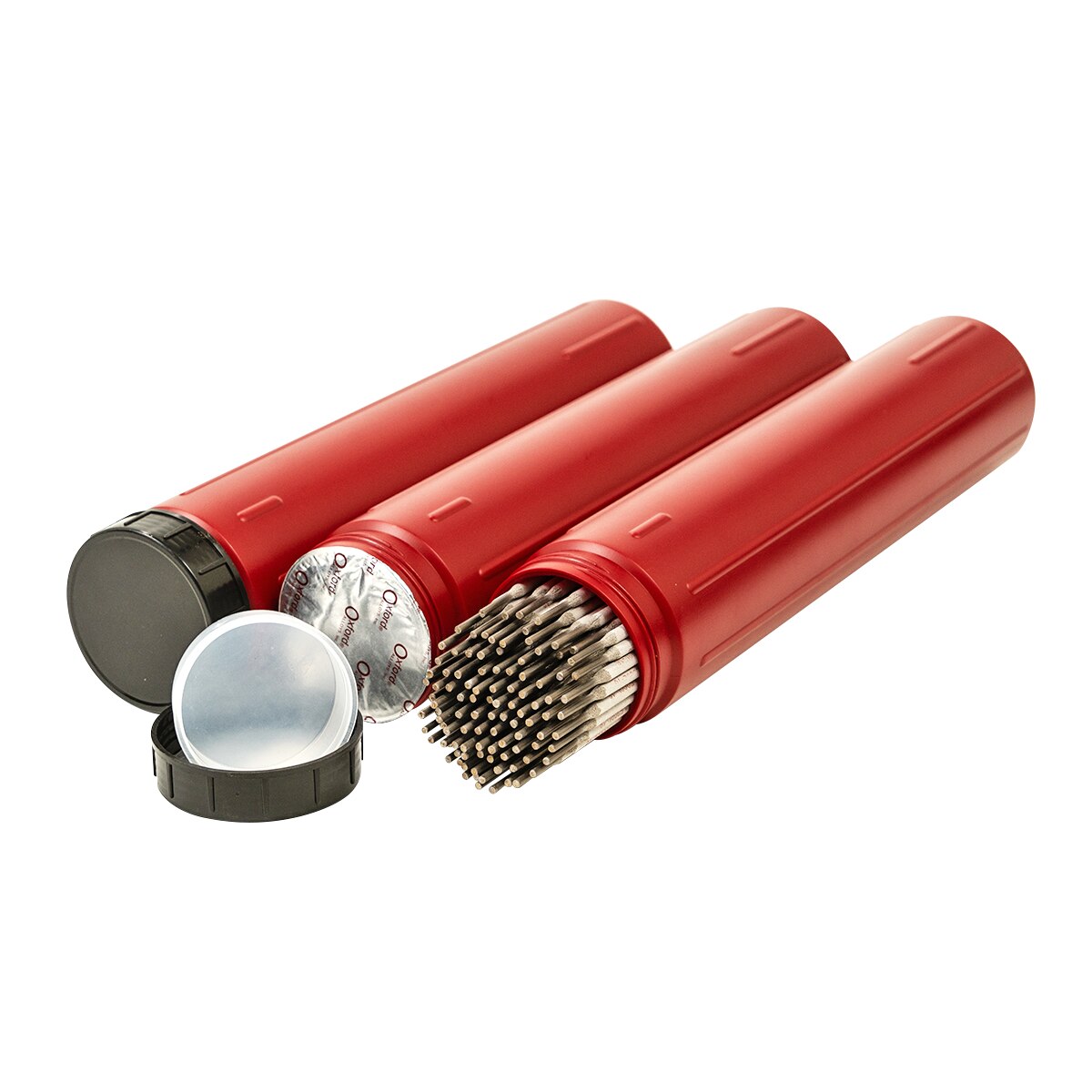

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Cr

Ni

Mn

Si

P

S

0.04-0.08

18.0-21.0

9.0-11.0

0.5-2.5

1.0 max

0.04 max

0.03 max

Cu

Mo

0.75 max

0.75 max

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		550 (80) minNot specified35 min
Typical Results -
As welded		580 (84)410 (59)46
