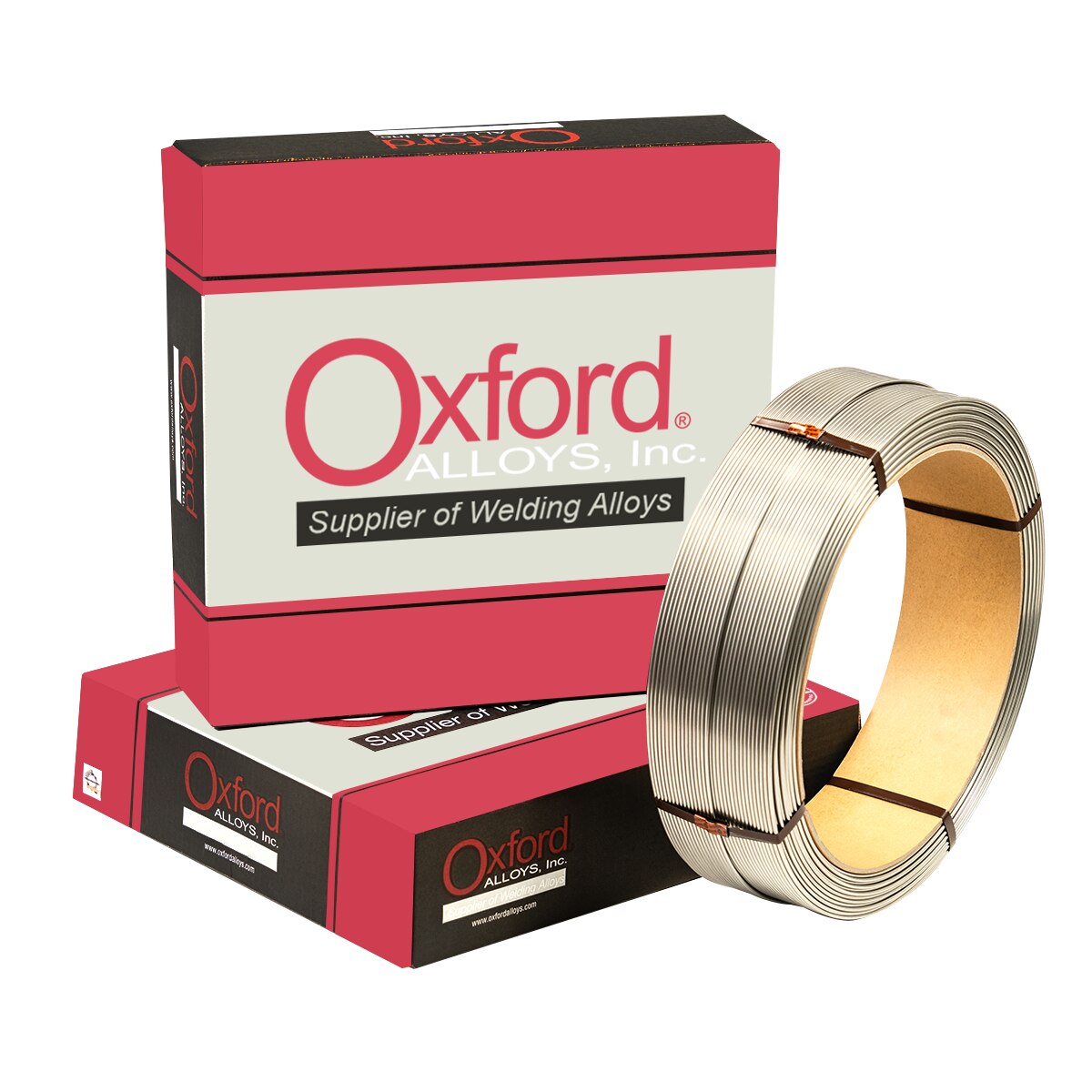

Oxford Alloy 2209 SAW

Item ID: OXF2209SAW

AWS Spec: 5.9
AWS Class: ER2209
Brand: Oxford Alloys
Packaging: 60 lb Coil
  • Used to weld duplex stainless steels such as (Type 2205).
  • The welds offer excellent resistance to stress corrosion, cracking and pitting. The microstructure of the weld metal consists of austenite and ferrite.
  • Welding of duplex stainless steels calls for controlled welding parameters to achieve specified mechanical and corrosion resistant properties.
  • Common industries include: Oil & Gas, Chemical, and Petrochemical
  • Superior feedability
  • Certified Material Test Reports on all heats
Chemical Composition
CMnSiCrNiMoS
0.03 max0.5-2.00.90 max21.5-23.57.5-9.52.5-3.50.03 max
PCuN
0.03 max0.75 max0.08-0.20
Mechanical Properties
Tensile Strength
MPa (ksi)
Yield Strength
MPs (ksi)
Elongation
%
AWS
Requirements
Not SpecifiedNot SpecifiedNot Specified
Typical Results -
As welded
720 (104)560 (81)26
