Product Description

  • Used for shielded-metal-arc welding of Inconel® alloys 600, 601, and 690.
  • The weld metal of this electrode has excellent high-temperature strength and oxidation resistance and can meet stringent radiographic requirements.
  • Also used in dissimilar welds such as Inconel® alloys and Incoloy® alloys joined to carbon steels, stainless steels, nickel and Monel® alloys; Monel® alloys joined to carbon steels; nickel joined to stainless steels; and stainless steels joined to carbon steels.

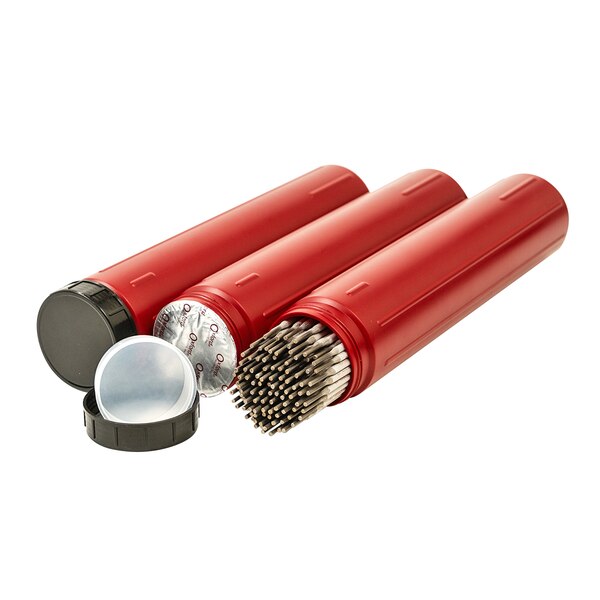

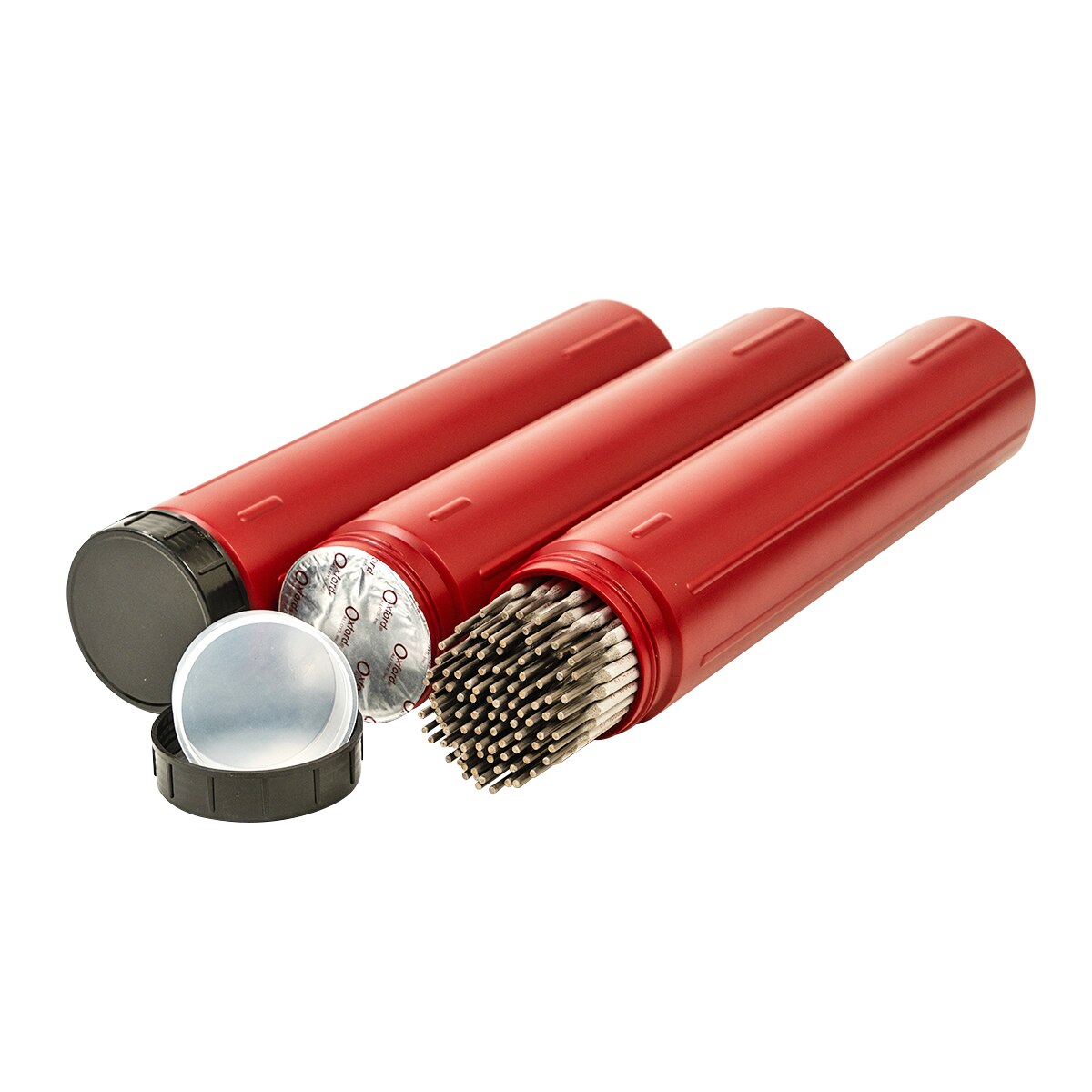

  • Hermetically Sealed Tubes
  • Stenciled with AWS classification
  • Certified Material Test Reports on all heats

Technical

Chemical Composition

C

Mn

Fe

P

S

Si

Cu

0.10 max

5.0-9.5

10.0 max

0.03 max

0.015 max

1.0 max

0.50 max

Ni

Ti

Cr

Nb+Ta

59.0 min

1.0 max

13.0-17.0

1.0-2.5

Mechanical Properties
Tensile Strength
MPa (ksi)		Yield Strength
MPs (ksi)		Elongation
%
AWS
Requirements		550 (80) minNot specified30 min
Typical Results -
As welded		590 (86)360 (52)38
