Oxford Alloys

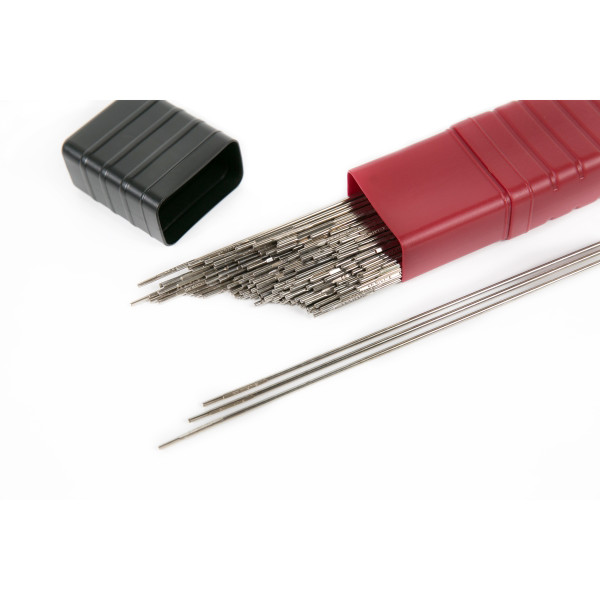

308H TIG WIRE
Diameter: 1/8 in| Item ID | OXF308H1-8X36 |
| AWS Spec: | 5.9 |
| AWS Class: | ER308/308H |
| UNS Number: | S30880 |
| Welding Process: | GTAW |
Product Description
- A general purpose flux designed forbutt welding with standard Cr-Ni and Cr-Ni-Mo fillers.
- This filler metal is also used for general-purpose applications where corrosion conditions are moderate.
- Carbon content in the range of .04 - .08 provides higher strength at elevated temperatures.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Ni | S | P |
| 0.04-0.08 | 1.0-2.5 | 0.30-0.65 | 19.5-22.0 | 9.0-11.0 | 0.03 max | 0.03 max |
| Mo | Cu | |||||
| 0.50 max | 0.75 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 600 (87) | 410 (59) | 41 |
