Oxford Alloys

7018 COATED ELECTRODE

Diameter: 3/32 in

Product Description

An all position iron powdered low hydrogen electrode which exhibits excellent mechanical properties, crack resistance and X-ray quality.
These electrodes are characterized by a smooth, quiet arc, very low spatter and medium arc penetration.
Used in high tensile strength steels like ship hull constructions, pressure vessels and other heavy duty equipments

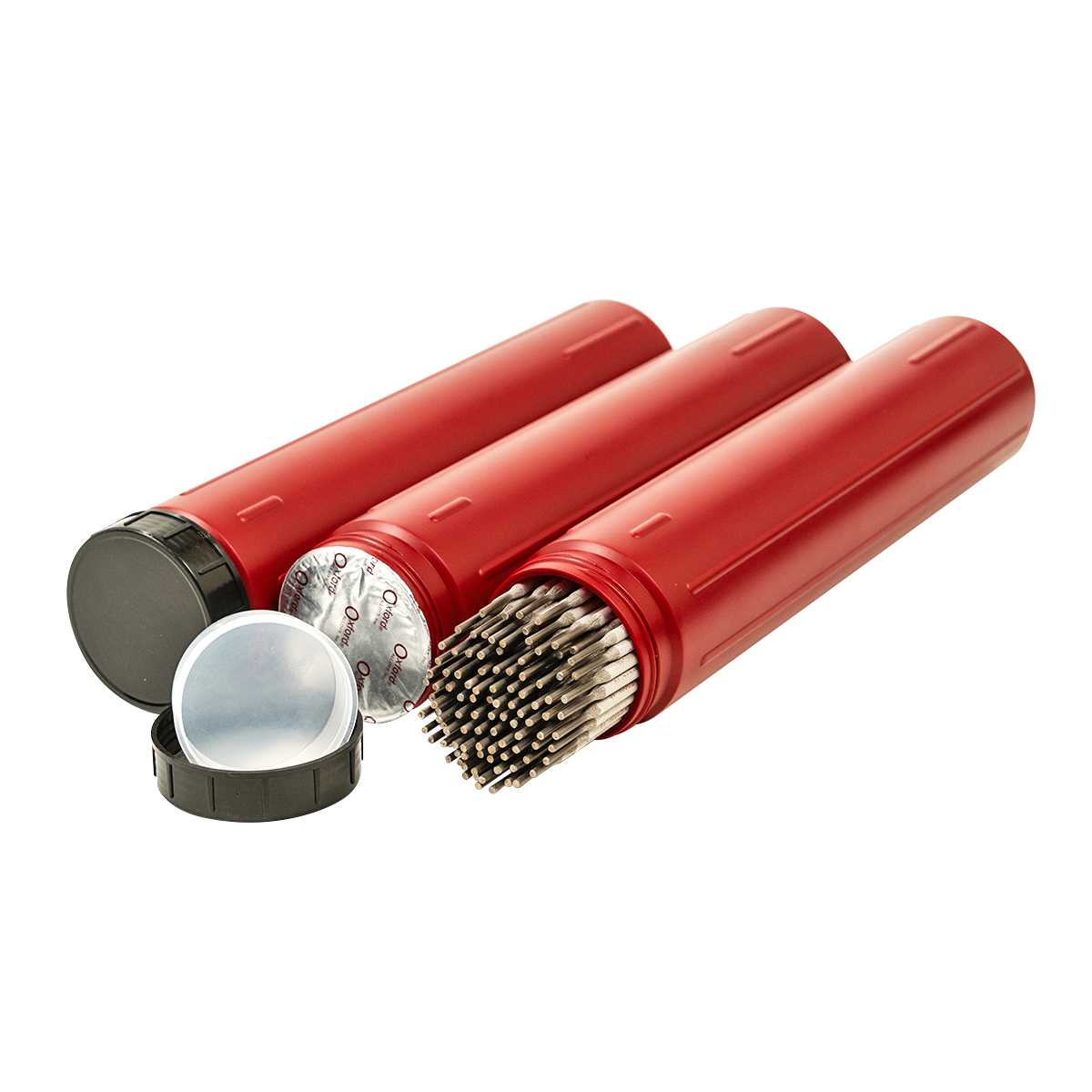

Hermetically Sealed Tubes
Stenciled with AWS classification
Certified Material Test Reports on all heats
ABS Approved

Technical

Chemical Composition
C	Mn	Si	P	S	Ni	Cr
0.15 max	1.60 max	0.75 max	0.035 max	0.035 max	0.30 max	0.20 max
Mo	V	Combined Limit for Mn+Ni+Cr+Mo+V
0.30 max	0.08 max	1.75 max
