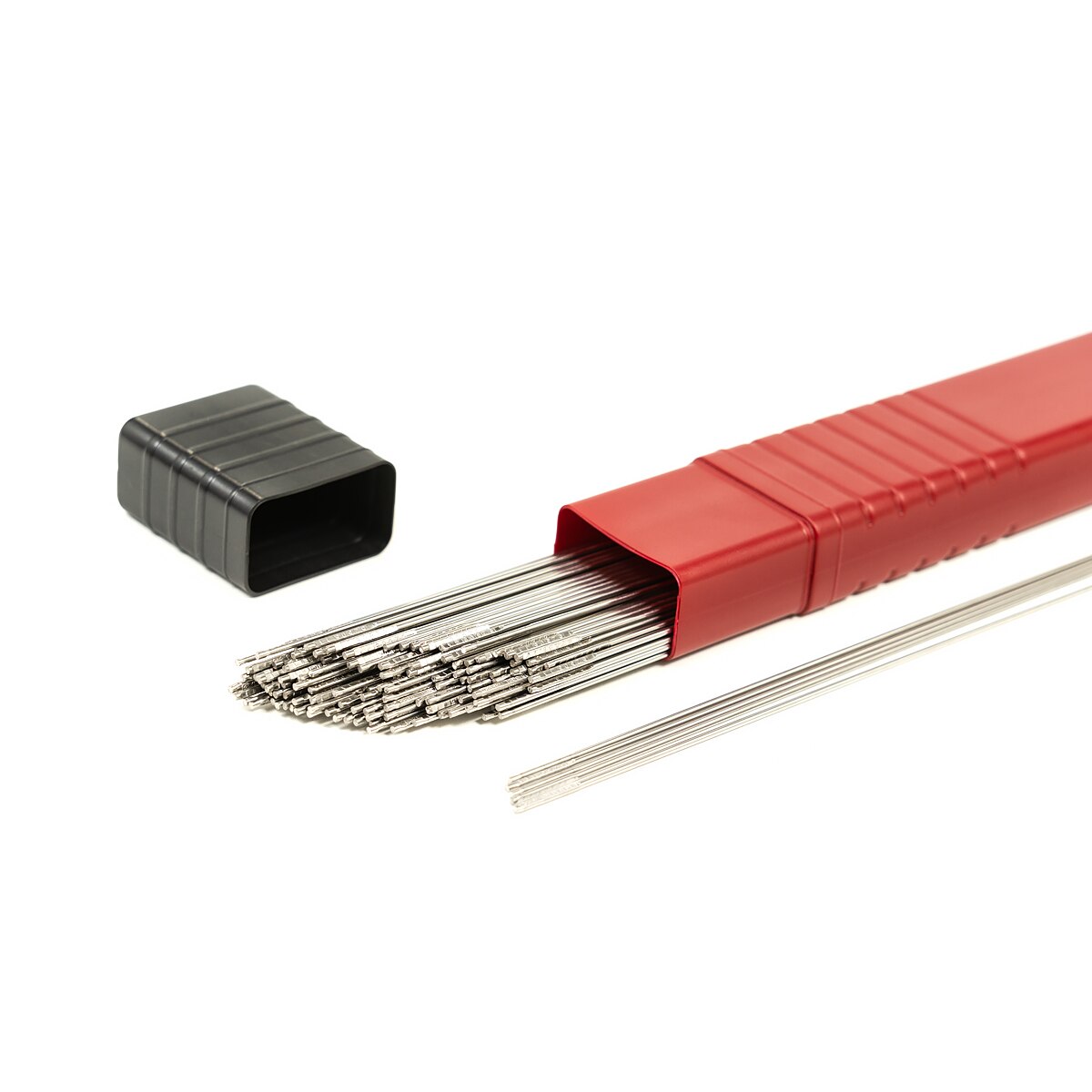

Oxford Alloys Ti-5 TIG WIRE Pkg: 10 lb Tube
| Item ID | OXFTi-5TIG |
| AWS Spec: | 5.16 |
| AWS Class: | ERTi-5 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
TI-5 TIG WIRE
Item Number: OXFTI-51-16X36
Pkg Qty: 5
UOM: Pound
TI-5 TIG WIRE
Item Number: OXFTI-53-32X36
Pkg Qty: 5
UOM: Pound
TI-5 TIG WIRE
Item Number: OXFTI-51-8X36
Pkg Qty: 5
UOM: Pound
Product Description
- Can be welded by the gas tungsten arc, plasma arc, and gas metal arc processes.
- Titanium and titanium alloys are extremely reactive above 1000°F. Additional precautions, exceeding those required during the welding of austenitic stainless steel or aluminum alloys, must be taken to shield the weld and hot root side of the joint from air.
- In welding titanium or titanium alloys, only argon and helium, and occasionally a mixture of these two gases, are used for shielding.
- The filler metal composition is usually matched to the grade of titanium being welded. The filler metal and the base metal should be meticulously cleaned at the time of welding.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | O | H | N | Al | V | Fe |
| 0.05 max | 0.12-0.20 | 0.015 max | 0.03 max | 5.50-6.75 | 3.5-4.5 | 0.22 max |
| Ti | ||||||
| Bal | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 895 (130) | 830 (120) | 10 |
