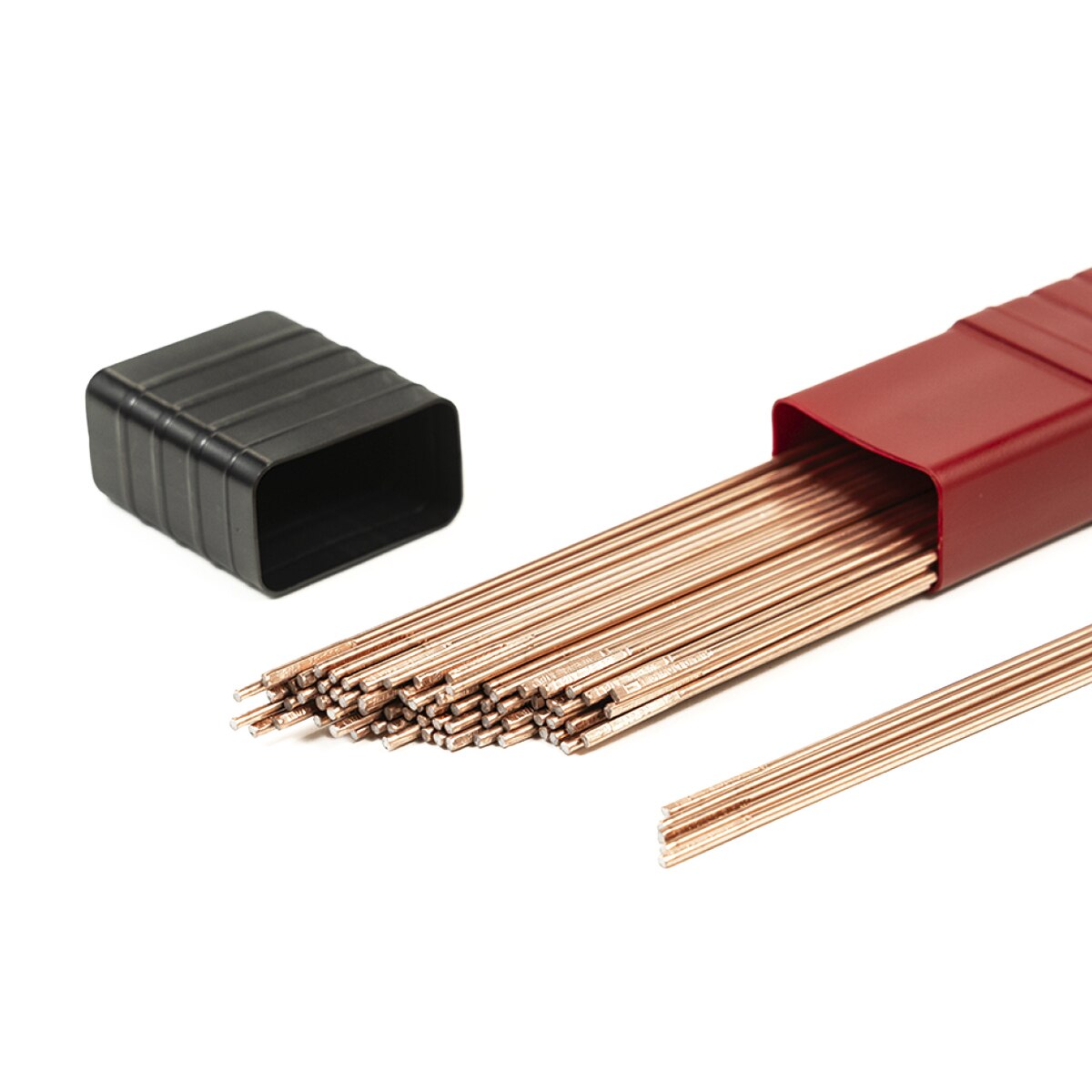

Oxford Alloys LFB-BARE TIG WIRE Diameter: 1/4 in
| Item ID | OXFLFB-BARE1-4X36 |
| AWS Spec: | 5.8 |
| AWS Class: | RBCuZn-C |
| UNS Number: | C68100 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
LFB-BARE TIG WIRE
Item Number: OXFLFB-BARE1-16X36
Pkg Qty: 10
UOM: Pound
LFB-BARE TIG WIRE
Item Number: OXFLFB-BARE3-32X36
Pkg Qty: 10
UOM: Pound
LFB-BARE TIG WIRE
Item Number: OXFLFB-BARE1-8X36
Pkg Qty: 10
UOM: Pound
LFB-BARE TIG WIRE
Item Number: OXFLFB-BARE5-32X36
Pkg Qty: 10
UOM: Pound
LFB-BARE TIG WIRE
Item Number: OXFLFB-BARE3-16X36
Pkg Qty: 10
UOM: Pound
LFB-COATED TIG WIRE
Item Number: OXFLFB-COATED3-32X36
Pkg Qty: 10
UOM: Pound
LFB-COATED TIG WIRE
Item Number: OXFLFB-COATED1-8X36
Pkg Qty: 10
UOM: Pound
Product Description
- A general purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys and stainless steel.
- The balanced chemical analysis of copper and zinc as well as alloying elements of tin, iron, manganese and silicon produce weld deposits with excellent mechanical properties.
- High strength, ductile and sound weld deposits are easy attained simply by applying a neutral or slightly oxidizing flame.
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Cu | Mn | Sn | Pb | Fe | Si | Zn |
| 56.0-60.0 | 0.01-0.50 | 0.80-1.10 | 0.05 max | 0.25-1.20 | 0.04-0.15 | Bal |
| Al | ||||||
| 0.01 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 390 (56) | - | - |
