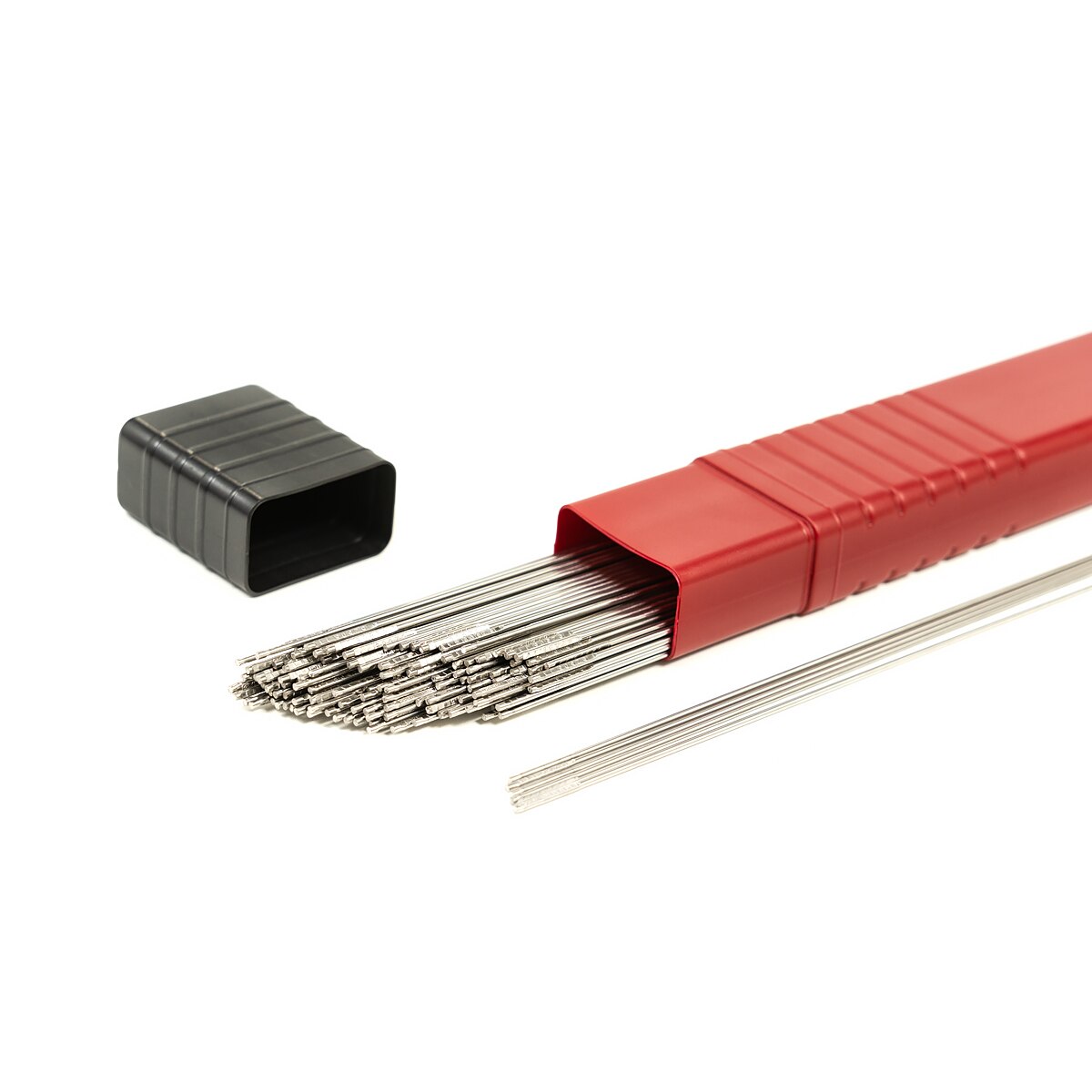

Oxford Alloys ZR-2 TIG WIRE Diameter: 1/16 in
| Item ID | OXFZR-21-16X36 |
| AWS Spec: | 5.24 |
| AWS Class: | ERZr-2 |
| UNS Number: | R60702 |
| Welding Process: | GTAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
ZR-2 TIG WIRE
Item Number: OXFZR-23-32X36
Pkg Qty: 5
UOM: Pound
ZR-2 TIG WIRE
Item Number: OXFZR-21-8X36
Pkg Qty: 5
UOM: Pound
Product Description
- Used in chemical processes that require alternate contact with strong acids and alkalis
- Some of the major areas that ERZR-2 is used include heat exchangers, stripper columns, reactor vessels, pumps, valves, and corrosive media piping.
- It has excellent resistance to corrosive attack in most organic and mineral acids, strong alkalis, and some molten salts.
- This alloy is most commonly welded by the gas tungsten arc welding (GTAW) technique. Other welding methods include metal arc gas welding (MAGW), plasma arc welding, electron beam welding and resistance welding
- TIG Wire marked with AWS classification
- Ultra clean finishing
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| Zr+Hf | Hf | Fe+Cr | H | N | C | O |
| 99.0 min | 4.5 max | 0.20 max | 0.005 max | 0.015 max | 0.03 max | 0.11-0.15 |
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 380 (55) | 210 (30) | 16 |
