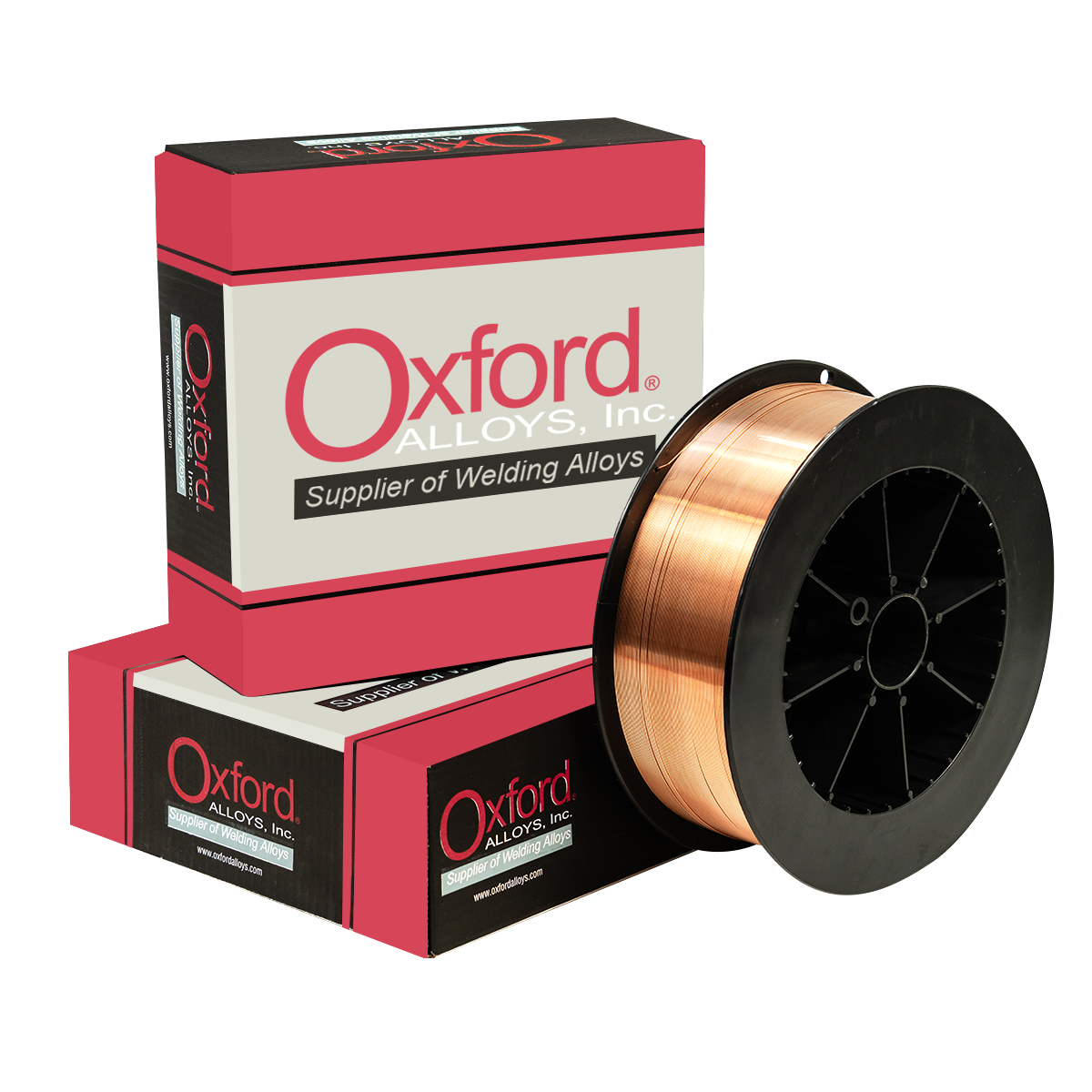

Oxford Alloys 80S-D2 MIG WIRE Diameter: 0.045 in
| Item ID | OXF80S-D2.045X33 |
| AWS Spec: | 5.28 |
| AWS Class: | ER80S-D2 |
| UNS Number: | K10945 |
| Welding Process: | GMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
80S-D2 MIG WIRE
Item Number: OXF80S-D2.035X33
Pkg Qty: 33
UOM: Pound
Product Description
- Low alloy steel wire with 2% manganese and 0.5% molybdenum as alloying elements.
- The weld deposits of this wire have moderately high strength with adequate low temperature toughness.
- A preheat and interpass temperature of not less than 300°F is required during welding
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Mo | P | S | Cu |
| 0.07-0.12 | 1.60-2.10 | 0.50-0.80 | 0.40-0.60 | 0.025 max | 0.025 max | 0.050 max |
| Ni | ||||||
| 0.15 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) min | 470 (68) min | 17 min |
| Typical Results - As welded | 640 (93) | 590 (86) | 22 |
