Oxford Alloys

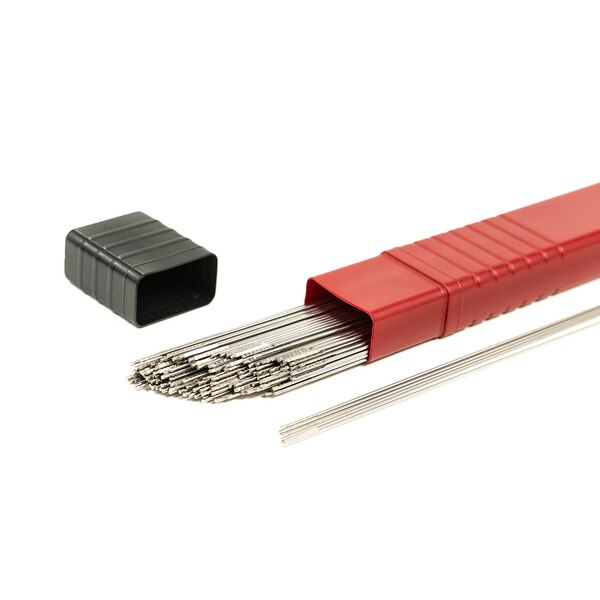

316H TIG WIRE
Diameter: 3/32 inItem ID | OXF316H3-32X36 |
AWS Spec: | 5.9 |
AWS Class: | ER316H |
UNS Number: | S31680 |
Welding Process: | GTAW |
Item ID | OXF316H3-32X36 |
AWS Spec: | 5.9 |
AWS Class: | ER316H |
UNS Number: | S31680 |
Welding Process: | GTAW |
Chemical Composition | ||||||
---|---|---|---|---|---|---|
C | Mn | Si | Cr | Ni | Mo | S |
0.04-0.08 | 1.0-2.5 | 0.30-0.65 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 0.03 max |
P | Cu | |||||
0.03 max | 0.75 max |
Mechanical Properties | |||
---|---|---|---|
Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
AWS Requirements | Not specified | Not specified | Not specified |
Typical Results - As welded | 580 (84) | 400 (58) | 38 |
