Product Description

  • With molybdenum specifically at the lower limit 16-8-2, it is essentially a dilute hybrid between E308H and E316H.
  • Rather than matching any single parent material, it has applications for welding all the 3XXH™ series of stainless steels with 0.04-0.10% carbon, which combine creep, oxidation and general corrosion resistance.
  • A low total Cr+Mo with controlled carbon and ferrite content ensures high resistance to thermal embrittlement by intermetallic phases.

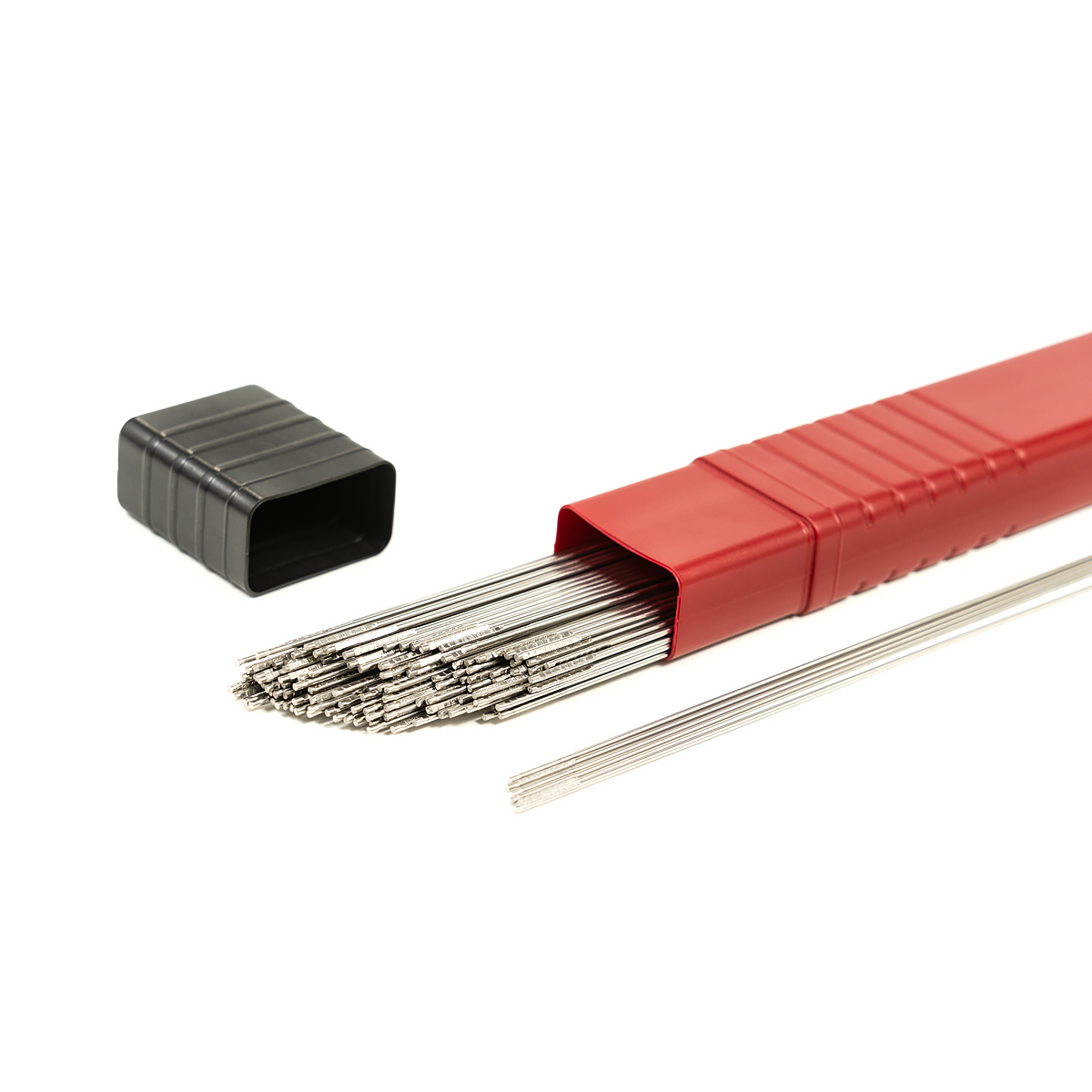

  • TIG Wire marked with AWS classification
  • Ultra clean finishing
  • Certified Material Test Reports on all heats

Technical

Chemical Composition
C Mn Si Cr Ni Mo Cu
0.10 max 1.0-2.0 0.30-0.65 14.5-16.5 7.5-9.5 1.0-2.0 0.75 max
S P
0.03 max 0.03 max
Mechanical Properties
Tensile Strength
MPa (ksi) 		Yield Strength
MPs (ksi) 		Elongation
%
AWS
Requirements 		Not specified Not specified Not specified
Typical Results -
As welded 		620 (90) - 37
