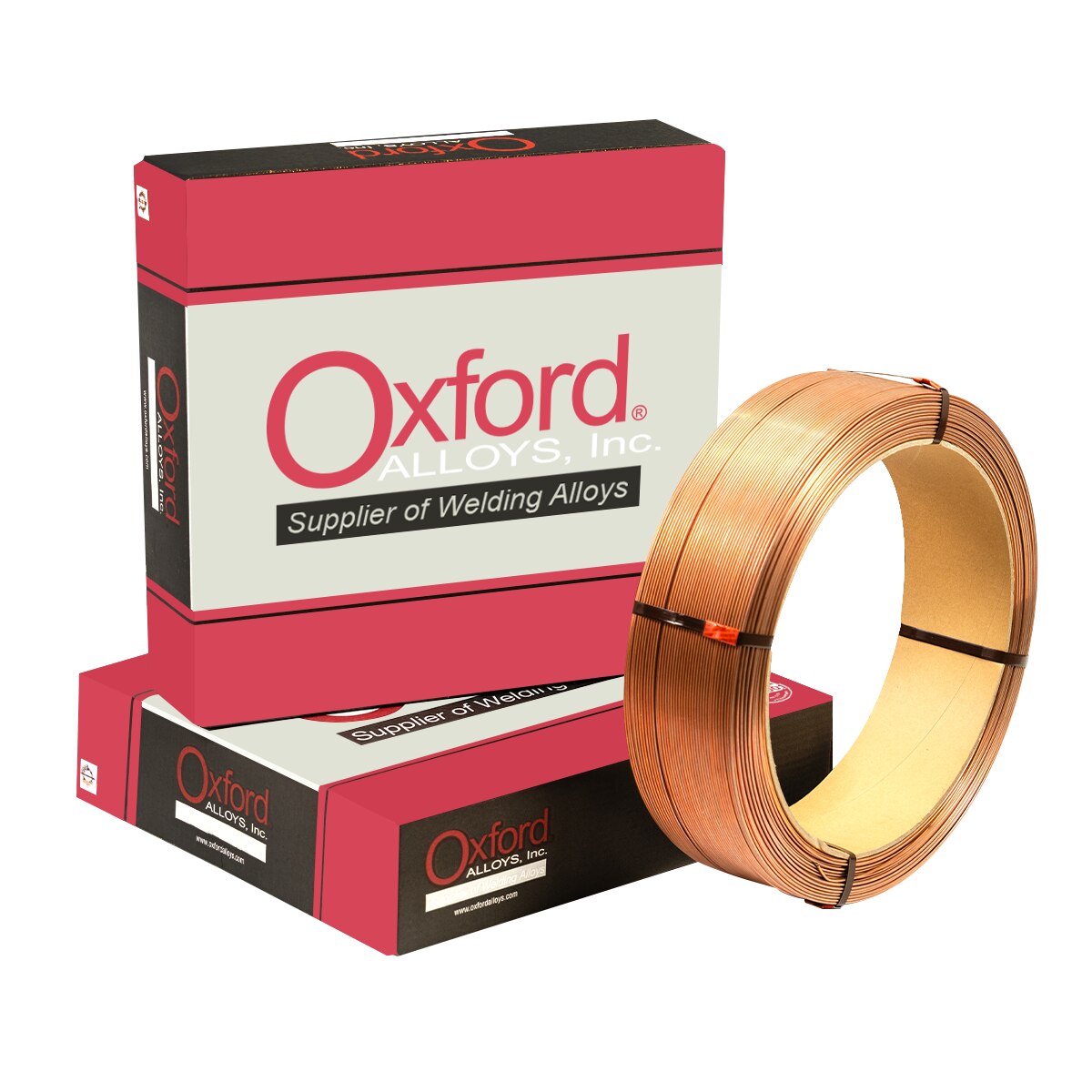

Oxford Alloys EB2 SAW WIRE Pkg: 60 lb coil
| Item ID | OXFEB2SAW |
| AWS Spec: | 5.23 |
| AWS Class: | EB2 |
| Welding Process: | SAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
EB2 SAW WIRE
Item Number: OXFEB23-32X60
Pkg Qty: 60
UOM: Pound
EB2 SAW WIRE
Item Number: OXFEB21-8X60
Pkg Qty: 60
UOM: Pound
Product Description
- A 1-1/4 Cr / .5 Mo wire for submerged arc welding applications of steels with similar chemical composition.
- A preheat and interpass temperature of not less than 300°F should be maintained during welding.
- Sometimes referred to as 515.
- Superior feedability
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | Cr | Mo | S | P |
| 0.07-0.15 | 0.45-1.00 | 0.05-0.30 | 1.00-1.75 | 0.45-0.65 | 0.025 max | 0.025 max |
| Cu | ||||||
| 0.35 max | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | Not specified | Not specified | Not specified |
| Typical Results - As welded | 580 (85) | 490 (71) | 22 |
