Oxford Alloys 81T1-NI1 FLUX CORE Diameter: 0.045 in
| Item ID | OXF81T1-NI1.045X33 |
| AWS Spec: | 5.29 |
| AWS Class: | E81T1-Ni1 |
| UNS Number: | W2103X |
| Welding Process: | FCAW |
Product Description
- Oxford 81T1-Ni1 is capable of producing weld deposit with tensile strength exceeding 590N/mm2 with superior impact properties at low temperature.
- Provides stable arc, less spatters, smooth weld beads and good weldability.
- Ideal for welding ASTM A302, A572, A575 and A734 steel.
- Used in offshore structure, low temperature storage tank, shipbuilding and construction.
- Preheat Temperature at 135-165 degree C and interpass temperature at 135-165 degree C.

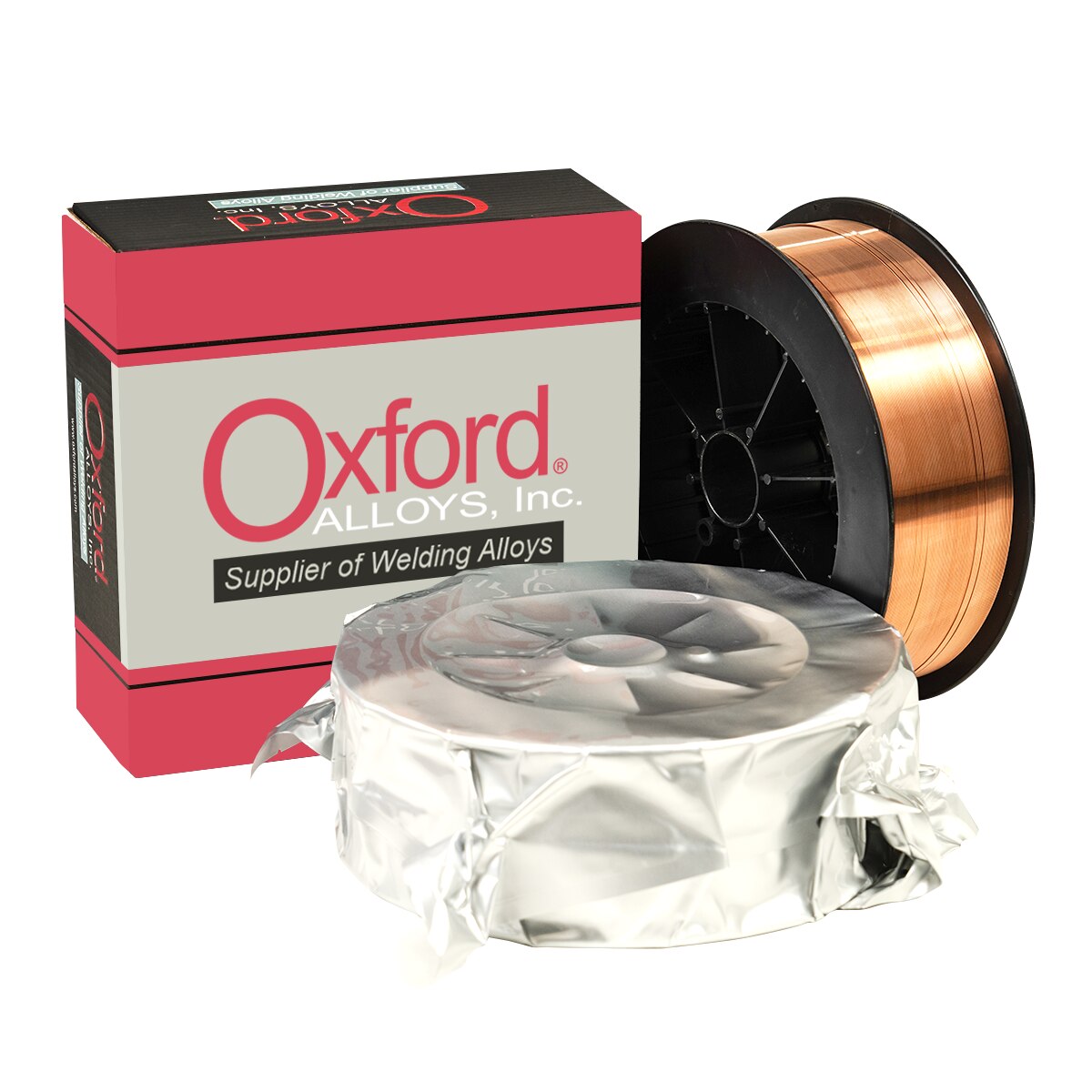

- Spools are vacuum packed in moisture proof polyfoil bags to ensure the highest quality.
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Ni | Cr |
| 0.12 max | 1.75 max | 0.03 max | 0.03 max | 0.80 max | 0.80-1.10 | 0.15 max |
| Mo | V | |||||
| 0.35 max | 0.05 max | |||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550-690 (80 - 100) | 470 (68) min | 19 |
| Typical Results - As welded | 623 (90) | 584 (84) | 28 |
