Oxford Alloys 8018-B6 COATED ELECTRODE Diameter: 5/32 in
| Item ID | OXF8018-B65-32 |
| AWS Spec: | 5.5 |
| AWS Class: | E8018-B6 |
| UNS Number: | W50218 |
| Welding Process: | SMAW |
Diameter
Item Description
Item Number
Pkg Qty
UOM
8018-B6 COATED ELECTRODE
Item Number: OXF8018-B63-32
Pkg Qty: 10
UOM: Pound
8018-B6 COATED ELECTRODE
Item Number: OXF8018-B61-8
Pkg Qty: 10
UOM: Pound
Product Description
- Designed to weld 5% Chrome - 1/2% Molybdenum creep resisting steels such as ASTM A387 Grade 5, A213-T5 and A335-P5.
- These types of steels are normally used in pressure vessels and piping for high temperature service.

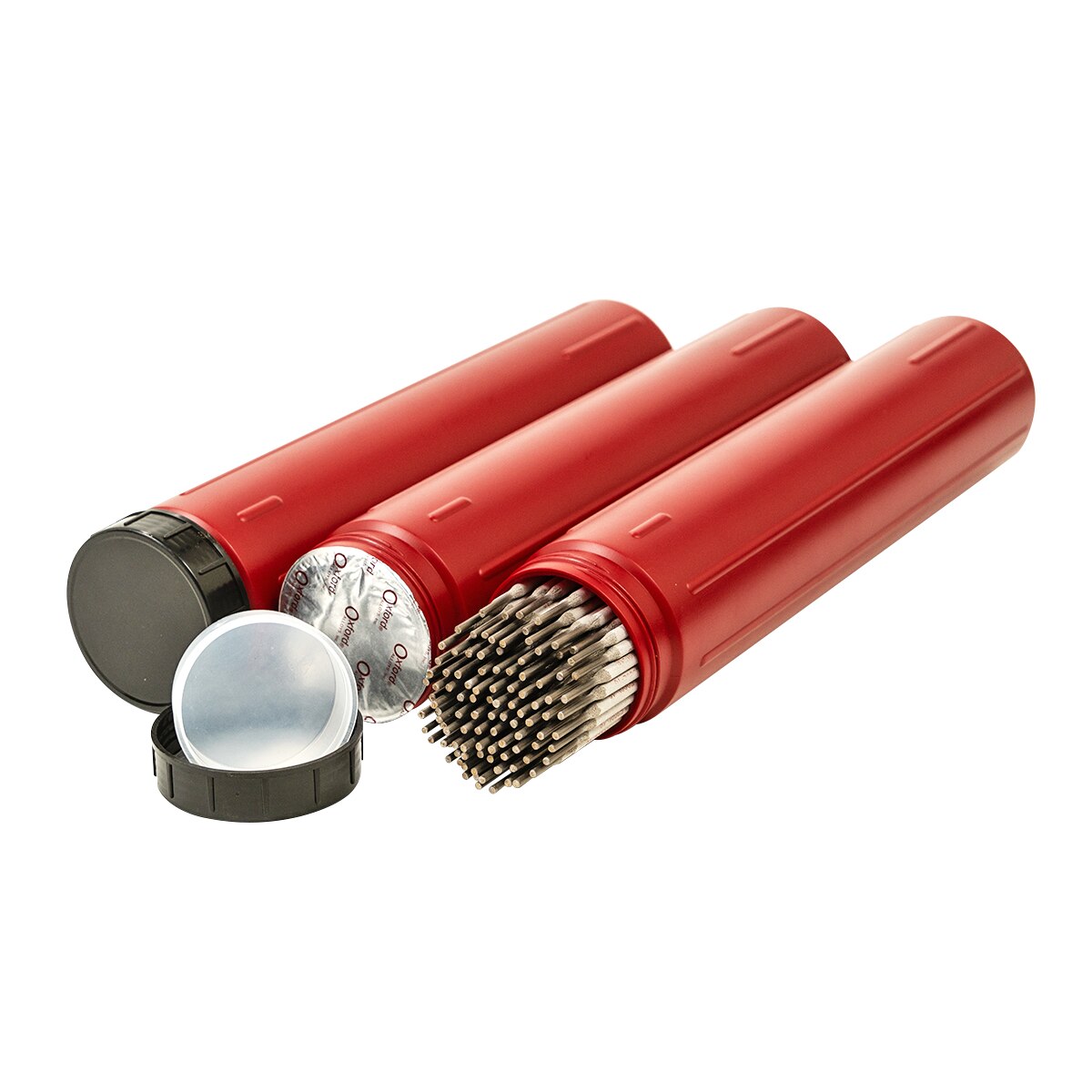

- Hermetically Sealed Tubes
- Stenciled with AWS classification
- Certified Material Test Reports on all heats
Documents
Technical
| Chemical Composition | ||||||
|---|---|---|---|---|---|---|
| C | Mn | Si | P | S | CR | Ni |
| 0.05-0.10 | 1.0 max | 0.90 max | 0.03 max | 0.03 max | 4.00-6.00 | 0.40 max |
| Mo | ||||||
| 0.45-0.65 | ||||||
| Mechanical Properties | |||
|---|---|---|---|
| Tensile Strength MPa (ksi) | Yield Strength MPs (ksi) | Elongation % | |
| AWS Requirements | 550 (80) min | 460 (67) min | 19 min |
| Typical Results - As welded | 670 (97) | 590 (97) | 25 |
